| Place of Origin: | CHINA |
| Brand Name: | SANTO |
| Certification: | ISO, CE |
| Model Number: | GTZN |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | USD55000-89000/set |
| Packaging Details: | Standard export packing by FCL or LCL shipping. |
| Delivery Time: | 30-35 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 2000set per year |
| Warranty: | 1 Year | Lift Mechanism: | Scissor Lift |
|---|---|---|---|
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Rated Loading Capacity: | Max. Up To 680kg |
| Max. Lifting Height: | 18m | Color: | Blue,Customers' Requirements |
| Material: | High Strength Manganese Steel | Power Source: | Diesel Engine |
| High Light: | GTZN Hydraulic Lifting Platform,680kg Hydraulic Lifting Platform,rough terrain scissor lift with outriggers |
||
Industrial Rough Terrain Scissor Lifts Platform Machine With Positive Traction Control
General description:
Rough Terrain Scissor Lifts are tough, construction-oriented four-wheel drive machines with positive traction control — ideal for increasing productivity in demanding outdoor worksites. Rough Terrain scissor lifts are able to traverse through uneven or rough terrain environments more efficiently. They are equipped with four-wheel drive and positive traction control for traction when you need it most. They offer up to 50% gradeability when driving on slopes.
Advantages:
► For narrow rough terrain applications, Excellent crossing ability on the outdoor tough working sites.
► Large working platform and handing with multi-position extensions capacity to generate great productivity.
► Self leveling hydraulic outriggers make it more durable at uneven ground.
► Vertical lift maintenance. On-board diagnostics for easy troubleshooting.
► Work cycle is double than other scissor lift.
| Standard Configuration | Options |
|
● Self-leveling hydraulic outriggers ● Dual slide-out platform extension ● Proportional lift and drive ● Self-lock Gate On Platform ● Onboard diagnostic system ● Cylinder holding valve ● Emergency stop button ● Full height swing gate
● Two self-closing gates
● 4WD
● Positive traction control
● Four-wheel braking
● Slide-out engine tray
● Foam-filled rough terrain tires
● Tilt level sensor with audible alarm
● Descent alarm
● Horn
● Hour meter
● Motion alarm
|
● Hydraulic generator ● Hydraulic welder ● Hydraulic compressor ● Hydraulic water pump ● Overload sensor with alarm ● AC power to platform ● Platform work lights ● Non marking tyre |
Specification:
| Size | |||
| Model | GTJN 10 | GTJN 13 | GTJN 16 |
| Maximum Working Height(A) | 12m | 15m | 18m |
| Maximum Platform Height(B) | 10m | 13m | 16m |
| Overall Length(C) | 4..88m | 4..88m | 4..88m |
| Overall Width(D) | 2.27m | 2.27m | 2.27m |
| Platform Size(Length/Width F) | 3.98 x 1.83m | 3.98 x 1.83m | 3.98 x 1.83m |
| Slide-out platform extension | 1.30m | 1.30m | 1.30m |
| Minimum Ground Clearance | 0.22m | 0.22m | 0.22m |
| Wheel Base | 2.86m | 2.86m | 2.86m |
| Performance | |||
| S.W.L | 1000kg | 680kg | 680kg |
| S.W.L On Extension | 230kg | 230kg | 230kg |
| Maximum platform occupancy | 7 | 7 | 7 |
| Minimum Turning Radius(Inside/Outside) | 2.35m/5.2m | 2.35m/5.2m | 2.35m/5.2m |
| Travel Speed(Stowed) | 6.8km/h | 6.8km/h | 6.8km/h |
| Travel Speed(Raised) | 1km/h | 1 km/h | 1 km/h |
| Maximum Gradeability | 50% | 50% | 50% |
| Maximum Working Slope | 3° | 3° | 3° |
| Tyre - rough terrain | 33×12-20 | 33×12-20 | 33×12-20 |
| Power | |||
| Power source | Perkins404D22 38kW/3000rpm | Perkins404D22 38kW/3000rpm | Perkins404D22 38kW/3000rpm |
| Auxiliary Power unit | 12V DC | 12V DC | 12V DC |
| Fuel tank capacity | 100L | 100L | 100L |
| Hydraulic system capacity | 130L | 130L | 130L |
| Weight | |||
| Gross Weight(with outriggers) | 7940kg | 8200kg | 9190kg |

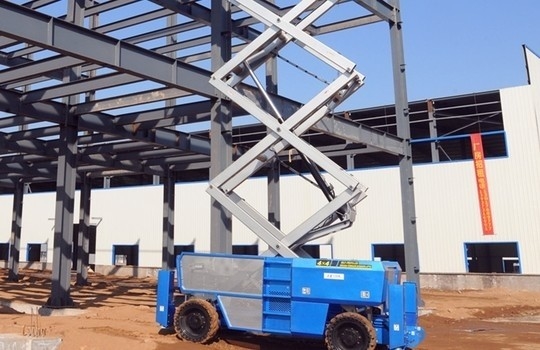

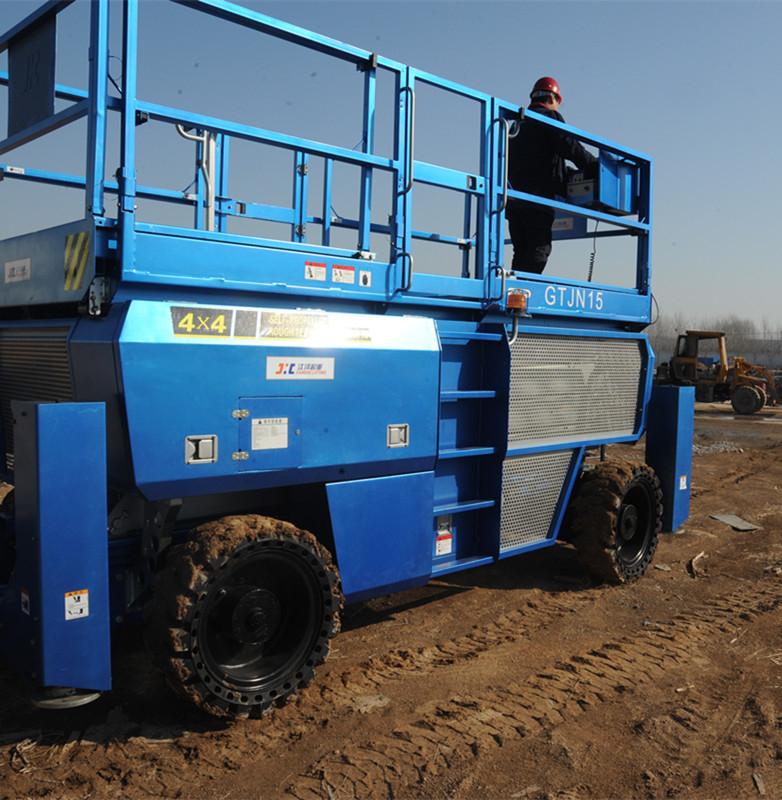

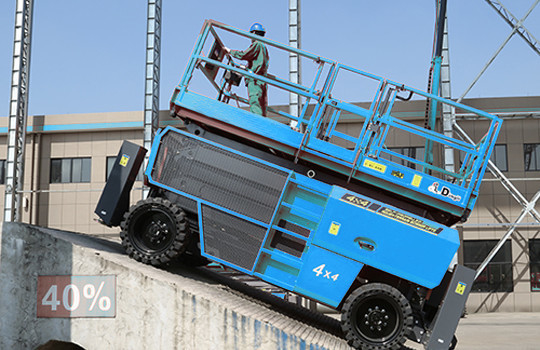

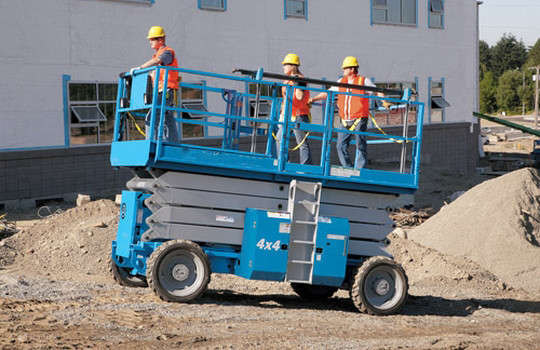

Picture show:
