| Place of Origin: | CHINA |
| Brand Name: | SANTO |
| Certification: | ISO, CE |
| Model Number: | CXTD, CXSM |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | USD2000-10000/set |
| Packaging Details: | Electrical and other parts packed by high quality plywood crate, steel beams packed by plastic films or plastic woven cloth |
| Delivery Time: | 30-45 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5000set/year |
| Condition: | New | Warranty: | 12 Months |
|---|---|---|---|
| Span: | 7.5-31.5m | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Field Installation,commissioning And Training,Online Support,Field Maintenance And Repair Service |
| Feature: | Bridge Crane | Max. Lifting Height: | 6m~30m |
| Motor: | ABM/SEW Brand | Traveling Speed: | 0-30m/min |
| Product Name: | Overhead Travelling Crane,Electric Double Girder 10 Ton Overhead Crane With Electric Hoist, Double Girder Wire Rope Overhead Travelling Crane For Sale | Application: | Workshop,Warehouse,plants,factory,warehouse And So On |
| Control Method: | Remote Control, Pendant Control | Rated Loading Capacity: | 5-320t |
| Color: | Yellow, Red, Or As Requirments | Power Source: | 3 Phase 380V 50hz Or Be Customized |
| Crane Feature: | Easy Operated Girder Bridge Crane,Single Girder Overhead Crane,EOT Crane,7.5tons Overhead Crane | Working Class: | 1BM-5M/M3-M8 (FEM/ISO) |
| Lifting Mechanism: | Double Girder Electric Hoist, Open Winch Hoist Trolley | Lifting Speed: | Inverter Speed 0-10m/min |
| Main Electrical Parts: | Chint, Or As Requirments Siemens, Schneider | ||
| High Light: | SANTO Over Head Bridge Crane,1BM 5M Over Head Bridge Crane,M3 M8 open winch crane |
||
FEM DIN Standard Electric Open Winch Hoist Trolley For Over Head Bridge Crane With Steel Wire Rope
Description:
FEM DIN Standard Electric Open Winch Hoist Trolley For Over Head Bridge Crane With Steel Wire Rope is designed and manufactured with European standard. This type crane is an ideal material lifting equipment applied in steel mill, paper mill, general manufacturer, power plant, port, petro-chemical, aerospace, non-ferrous industries, army, mining and oil fields, offshore platform, shipyard, car makers, waste-to-energy factory, nuclear etc.
Advanced Technology:
1. Sandblast pretreatment on steel plates and the surface quality reaches Sa2.5;
2. CNC cutting machine cuts webs plate to insure the curved surface is smooth and accurate;
3. Seams are soldered by automatic arc welding and detected by ultrasonic and X-ray ;
4. The structure of girder and trolley is manufactured by floor-type boring lathe to insure flatness.
Features:
1. Excellent design, compact structure, light weight, low headroom
2. Flexible driving with hardened gear box
3. Stepless control smooth running
4. Real-time safety monitoring
5. Standardized features makes performance extremely stable
Specification:
| Capacity | Lifting Height(m) | Lifting Speed (m/min) | Total Power | Recommend Rail | ||||
| (t) | Main hook | Aux hook | Main hook | Aux hook | trolley | crane | (kw) | (kg/m) |
| 16/3.2 | 12 | 15 | 2.5~9 | 9 | 20~38 | 30~70 | 19.4~49.5 | 52.8 |
| 20/5 | 27.5~62.5 | |||||||
| 25/5 | 28.1~72.9 | |||||||
| 32/5 | 15 | 17 | 30~80 | 29.7~110 | 63.69 | |||
| 40/5 | 2~9 | 30~70 | 30.5~111.5 | |||||
| 50/10 | 2~7 | 9 | 46.4~130 | |||||
| 63/10 | 21 | 23 | 1.5~7 | 9 | 46.4~157 | |||
| 75/20 | 26 | 28 | 1.7~7 | 7 | 18~30 | 81~184 | 88.96 | |
Crane Kits:
| 1. | Lifting motor |
Heavy duty motor 60%ED rating |
| 2. | Lifting gear box |
CrNiMo alloy harden gear(HRC60) Side hanging design |
| 3. | Lifting brake |
Double brake type available Electric magnetic brake inside Electric hydraulic thruster type with ZPMC brand |
| 4. | Wire Rope |
Reliable rope guider & anti-deflection High strength galvanized steel wire rope 2160N/mm2 Heavy blocks densely covered to avoid wire rope loosing |
| 5. | Hook Assembly |
34CrMo4QT/34CrMo6QT, Optimized size Forging hook |
| 6. | Electrical Parts |
IEC standard testing Schneider brand or as required Aviation plug no wiring connection at user’s site |
| 7. | Smart function |
2-step adjustable rotation limit switch Hook approached limit switch Grease nipples in one group Dropless latch Over speeding protection Inching / Micro-speed / Anti-sway / brake-open holding function HMI and safety monitoring system |
Company Information:
Santo crane mainly dealing in researching, developing and producing the lifting machinery, port machinery, construction-use tower crane, reducer, etc.
The leading products of Santo widely used in Machinery, Metallurgy, Electric Power, Railway, Aerospace , Port, Petroleum, Petrochemical, etc, our products are serving the national key projects such as: the South-to-North Water Transfer Project, the West-East National Gas Transmission, the Three Gorges Hydropower Station, Jiuquan Satellite Lunching Center, Qinshan Nuclear Power Station, Hangzhou Bay Bridge, Beijing Olympic Games and so on, accelerate successfully the launch of Spacecraft Shenzhou-10 and Chang’e-3,our products have been exported to more than 69 countries like America, Japan, Russia, Korea, etc. In 2013 the annual sales revenue reached 6.669 billion, and the Overhead Traveling Crane and the Gantry Crane continue to hold the first position around the whole country

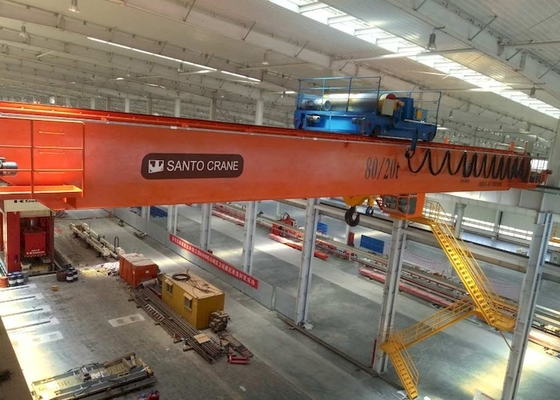

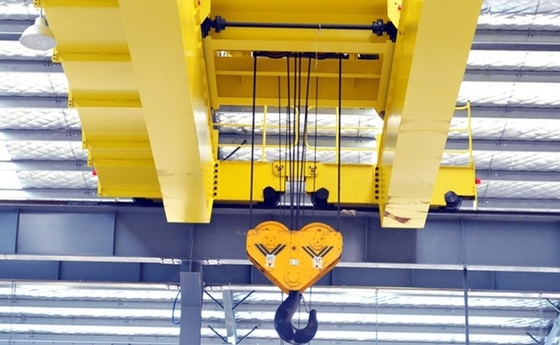

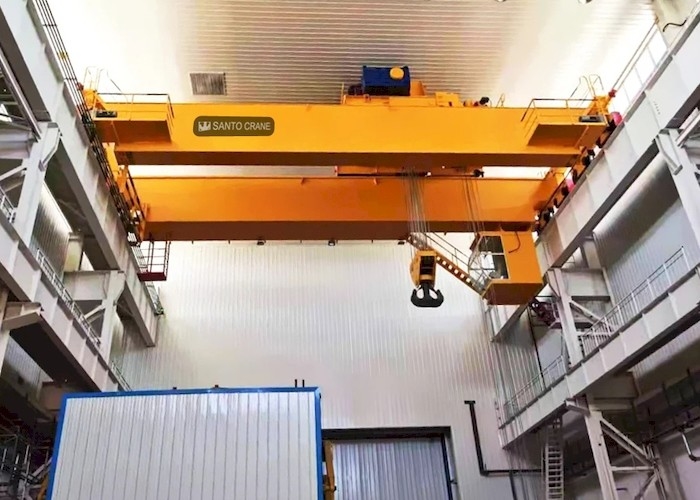

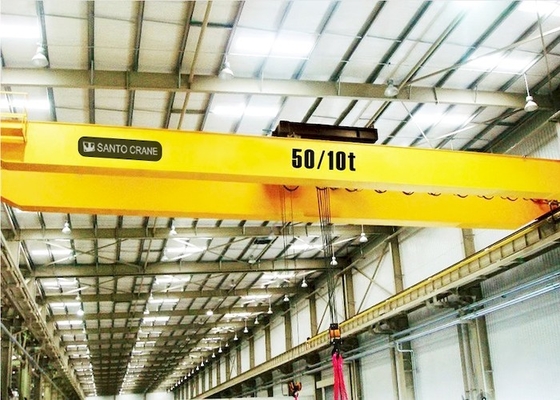

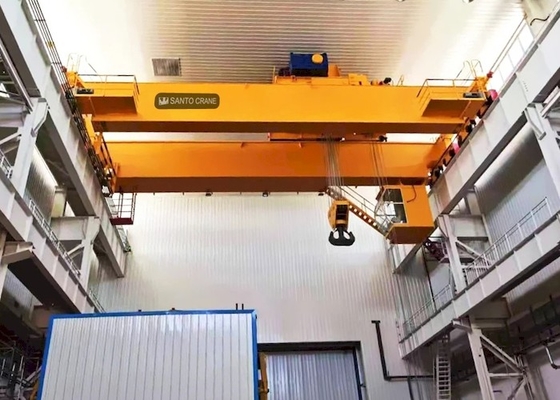

Crane Photos:
