FEM 2M ISO M5 Single Beam European Overhead Crane 1t 5t 10t 20t

FEM 2M ISO M5 Single Beam European Overhead Crane 1t 5t 10t 20t

  • FEM 2M ISO M5 Single Beam European Overhead Crane 1t 5t 10t 20t
  • FEM 2M ISO M5 Single Beam European Overhead Crane 1t 5t 10t 20t
  • FEM 2M ISO M5 Single Beam European Overhead Crane 1t 5t 10t 20t
  • FEM 2M ISO M5 Single Beam European Overhead Crane 1t 5t 10t 20t
  • FEM 2M ISO M5 Single Beam European Overhead Crane 1t 5t 10t 20t
  • FEM 2M ISO M5 Single Beam European Overhead Crane 1t 5t 10t 20t
FEM 2M ISO M5 Single Beam European Overhead Crane 1t 5t 10t 20t
Product Details:
Place of Origin: CHINA
Brand Name: SANTO
Certification: ISO, CE
Model Number: CXTS
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD2000-10000/set
Packaging Details: Electrical and other parts packed by high quality plywood crate, steel beams packed by plastic films or plastic woven cloth
Delivery Time: 30-35 working days
Payment Terms: L/C, T/T
Supply Ability: 5000set/year
Contact Now
Detailed Product Description
Condition: New Warranty: 12 Months
Span: 7.5-31.5m After-sales Service Provided: Engineers Available To Service Machinery Overseas,Field Installation,commissioning And Training,Online Support,Field Maintenance And Repair Service
Feature: Bridge Crane Max. Lifting Height: 6m~30m
Rated Lifting Moment: Different Max. Lifting Load: 1-20t
Product Name: Overhead Travelling Crane,Electric Single Girder 10 Ton Overhead Crane With Electric Hoist, Double Girder Wire Rope Overhead Travelling Crane For Sale Application: Workshop,Warehouse,plants,factory,warehouse And So On
Control Method: Wireless Remote Control,Ground Control,pendant Control Rated Loading Capacity: 1-20t
Color: Yellow, Red, Or As Requirments Power Source: 3 Phase 380V 50hz Or Be Customized
Power Supply: 220V~480V 50/60Hz Crane Feature: Easy Operated Girder Bridge Crane,Single Girder Overhead Crane,EOT Crane,7.5tons Overhead Crane
Type: Single Girder Bridge Crane, Single Girder Overhead Crane Lifting Mechanism: Electric Single Girder Hoist
Lifting Speed: Inverter Speed Or Dual Speed 0~5m/min Main Electrical Parts: Chint, Or As Requirments Siemens, Schneider
High Light:

ISO M5 European Overhead Crane

,

FEM 2M European Overhead Crane

,

Single Beam Overhead Crane 20t

European Style Single Beam Electric Overhead Travelling Bridge Crane 1t 5t 10t 20t Factory Direct Supplier



Description:



Europe style single Girder overhead crane is our new designed crane for the low workshop and high lifting height demands. It has many advantages such as: Strong rigidity, light dead weight, outstanding structure design, etc. It could save your factory space and investment effectively. Its technology is advanced and design is based on international standard: DIN (Germany), FEM (Europe), and ISO (International). Its particular and special travelling structure is your best choice.



Optimal Structure Designing for main box girder.
Compact Size Hoist Trolley and reasonable hook design make more space for working.
Unique Wheel Frame Design help the adjust the balance and installation. The full structure is more realizable and durable.
Motor Protect Class IP54, F class insulation. The overload protection device included.
Special designed gear box adapt helical gear, self-lubricating.
Two control ways. Pendent control panel could contact with hoist trolley or move indigently by the main girder guide. The steeples lift or travel speed could be controlled by the control panel. Remote control make operator free moving on ground. Thousands of frequency points make cranes in one workshop working without Suffering Interference.

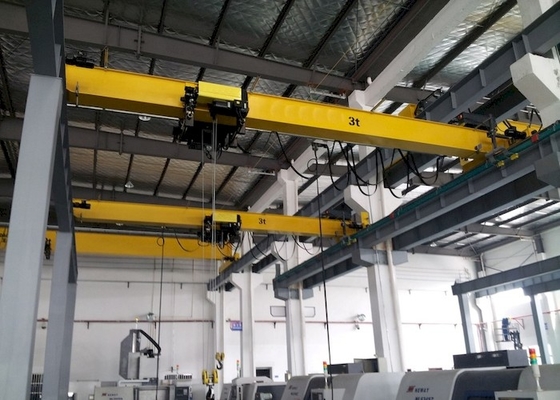

FEM 2M ISO M5 Single Beam European Overhead Crane 1t 5t 10t 20t 0

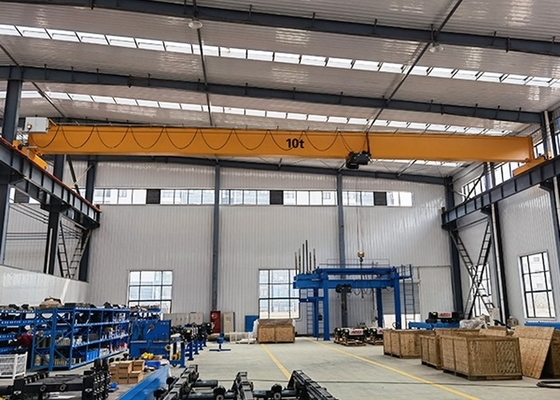

FEM 2M ISO M5 Single Beam European Overhead Crane 1t 5t 10t 20t 1



Features:



1. The lifting hoist adopts M5 working class with double lifting speed.

2. Lifting motor with ABM German brand motor.

3. Long Travelling motor uses SEW/ABM geared motor gear motors.

4. Cross and long traveling are variable travelling speed.

5. Electrical parts adopt Schneider brand.

6. The protection class is IP 54.

7. The working duty can reach to FEM 2M/ISO M5.



Application:



New type single girder bridge crane is design widely used for workshop or warehouse heavy loads transferring in mechanical, Metallurgy, petroleum, petrochemical, ports, railways, civil aviation, electricity, food, paper, building materials, electronics. Especially for loads precise position or precision assembly of large spare parts.



Specification:

Lifting

Capacity (t)

Span

(m)

Lifting Height

(m)

Lifting Speed

(m/min)

Hoist Traveling

Speed(m/min)

Crane Traveling

Speed (m/min)

Recommended

Rail Track

1 7.5~31.5 6~12 0.8/5 2~20 3~30 P24
2 6~12 0.8/5 2~20 3~30 P24
3.2 6~12 0.8/5 2~20 3~30 P24
5 6~12 0.8/5 2~20 3~30 P24,P30
10 6~12 0.8/5 2~20 3~30 P30
12.5 6~12 0.66/4 2~20 3~30 P30
16 9~12 0.66/4 2~20 3~30 P43
20 9~12 0.66/4 2~20 3~30 P43
Work Duty A5
Power 380V, 50Hz or Other
Temperature of Working Environment ﹣20℃~﹢40℃


Notes: Span, lifting height is customizable as requirements

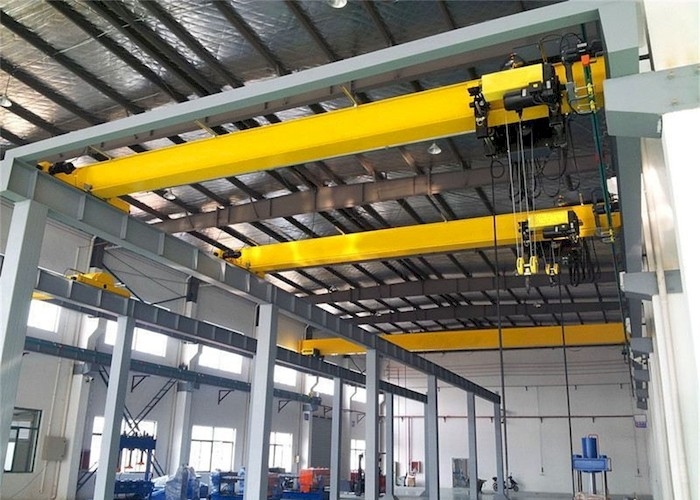

FEM 2M ISO M5 Single Beam European Overhead Crane 1t 5t 10t 20t 2



Advantage:



1. Use imported motor with insulation grade of F and protection degree of IP54. With overheat alarm. The motor is shielded by aluminum alloy stretching cover with good heat dissipation performance;

2. Imported reducer from Germany. hardened gears with good bearing capacity, excellent seal without penetration of grease;

3. Main electric components imported from international brands such as: Siemens, Schneider and ABB etc. with protection degree not lower than IP54;

4. Wheels are forged by 65mn alloy steel with features of wear-proof, anti-fatigue and long service life.

5. Low energy consumption and maintenance free;

6. Whole crane energy saving about 30%;

7. All-in-one transmission mechanism making it work more efficient;

8. Variable frequency control whose high and low rotating speed ratio is 1:10 and work efficiency increases more than 20%;

9. Less and easy maintenance reduces the cost of maintenance;

10. Manufactured by advanced technology and constituted by high quality imported components greatly reducing malfunction and cost.



Crane Details:



1. Light self weight, low noise and few faults, generally used in normal working condition.
2. Designed base on DIN standard
3. Save the power, lower wheel load, so it can reduce the cost of support beam.

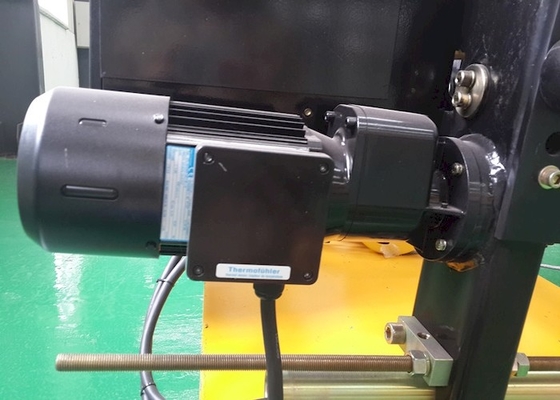

FEM 2M ISO M5 Single Beam European Overhead Crane 1t 5t 10t 20t 3 Imported motor, the insulation grade is F, and protective grade is IP54, it shall also have over heated and alarming function, the motor cover adopts aluminum alloy to drawing the molding, with better heat dissipation.
Germany imported reducer, harden face gear, improve the bearing ability, better sealing of the shell, ensure there no grease penetration.
FEM 2M ISO M5 Single Beam European Overhead Crane 1t 5t 10t 20t 4 The main electric elements adopts the international brands include Siemens, ABB. The protective grade of the electric control box shall no less than IP 54.
FEM 2M ISO M5 Single Beam European Overhead Crane 1t 5t 10t 20t 5 The wheel forged by 55 Mn alloy steel, with the performance of abrasive resistance, ant fatigue and long service life.



Safety Protection:



1. Locked fall-proof reducer;

2. Outdoor hoist with rain-cover;

3. Alarm indicator lights;

4. Infrared anti-collision;



Company Information:


Santo crane mainly dealing in researching, developing and producing the lifting machinery, port machinery, construction-use tower crane, reducer, etc.
The leading products of Santo widely used in Machinery, Metallurgy, Electric Power, Railway, Aerospace , Port, Petroleum, Petrochemical, etc, our products are serving the national key projects such as: the South-to-North Water Transfer Project, the West-East National Gas Transmission, the Three Gorges Hydropower Station, Jiuquan Satellite Lunching Center, Qinshan Nuclear Power Station, Hangzhou Bay Bridge, Beijing Olympic Games and so on, accelerate successfully the launch of Spacecraft Shenzhou-10 and Chang’e-3,our products have been exported to more than 69 countries like America, Japan, Russia, Korea, etc. In 2013 the annual sales revenue reached 6.669 billion, and the Overhead Traveling Crane and the Gantry Crane continue to hold the first position around the whole country.



FEM 2M ISO M5 Single Beam European Overhead Crane 1t 5t 10t 20t 6

FEM 2M ISO M5 Single Beam European Overhead Crane 1t 5t 10t 20t 7

FEM 2M ISO M5 Single Beam European Overhead Crane 1t 5t 10t 20t 8



Factors need to know for quotation:



Please inform us the following data for the purpose of servicing you better!

Lifting capacity.
Span (rail center to rail center)
Lifting height (Lowest point to ground)
Power supply (380V, 50Hz, AC, 3-Phase, is that ok?)
Working condition: Which materials to lift? Temperature?
