| Place of Origin: | China |
| Brand Name: | Santo Crane |
| Certification: | ISO |
| Model Number: | CD1 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | 600USD/SET |
| Packaging Details: | Wooden case |
| Delivery Time: | 7 ~15 Working days |
| Payment Terms: | L/C, D/A, T/T, Western Union |
| Supply Ability: | 5000 Sets/ Year |
| Model: | CD1 | Lifting Capacity: | 0.5t-16t |
|---|---|---|---|
| Lifting Height: | 6m-18m | Condition: | New |
| Power Source: | Electirc | Sling Type: | Wire Rope |
| Usage: | Construction Hoist, Material Handling, Household | Color: | Customised, Yellow, Blue, Green |
| Voltage: | 220V,380V,400V,415V,440V | ||
| High Light: | 415V 10 Ton Electric Hoist,CD1 400V 10 Ton Electric Hoist,10t electric hoist 18m Lift Height |
||

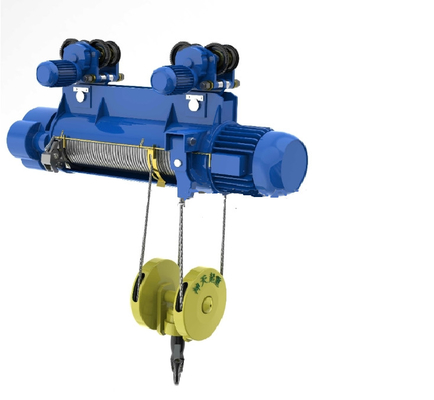

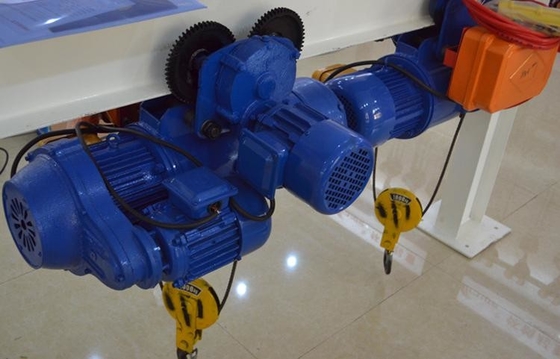

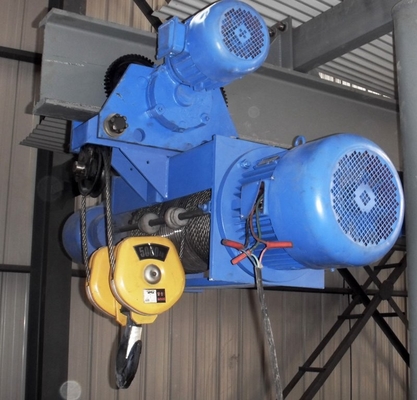

CD1 Model 10 Ton Electric Wire Rope Hoist Lifting Height 6m
Description:
CD1/MD1 type electric hoist, have a compact structure, light weight, small volume, convenient operation, reliable quality, widely used, etc. It can be used alone, also can as a complete set install in the electric single-girder, double beam, cantilever, gantry crane, etc. When required fast speed and low speed, it should choose MD1 electric hoist type with double lifting speed.
3. Universal
4. Cost-efficient
Accurate orientetion ,hightly -efficient operation,improved logisitics effciency
Safe and reilable ,montioed operation ,easy maintance
Modularized design ,lower maintance cost ,perfect spare parts and components services.
Technical Parameters:
| The general details of wire rope electric hoist with standard type | |||||
| Model | CD | MD | |||
| Capacity (ton) | 0.5, 1, 2, 3, 5 | 10, 16, 20 | 0.5, 1, 2, 3, 5 | 10, 16, 20 | |
| Travelling mechanism | Travelling Speed (m/min) | 20, 30 | 20, 30 | 20,30 | |
| Motor (kw) | 1x0.4, 1x0.8 | 2x0.8, 4x0.8 | 1x0.4, 1x0.8 | 2x0.8, 4x0.8 | |
| Lifting mechanism | Lifting Speed (m/min) | 8 | 7, 3.5 | 8/0.8 | 7/0.7, 3.5/0.35 |
| Lifting height (m) | 6, 9, 12, 18, 24, 30 | 9, 12, 18, 24, 30 | 6, 9, 12, 18, 24, 30 | 9, 12, 18, 24, 30 | |
| Motor (kw) | 0.8, 1.5, 3.0, 4.5, 7.5 | 13 | 0.8/0.2, 1.5/0.2, 3.0/0.4, 4.5/0.4, 7.5/0.8 | 13/1.5 | |
| Duty Class | M3 | ||||
| Power source | 380V, 50HZ, 3 phase (or other standard) | ||||
| Working temperature | |||||
| Branch of rope | 2 ropes(0.5t~5t), 4 ropes(10t~20t) | ||||
| Brake | Mounted on motors | ||||
| Control model | Pendant push button control or wireless remote control | ||||
