Place of Origin: | CHINA |
Brand Name: | SANTO |
Certification: | ISO, CE |
Model Number: | CXTS |
Minimum Order Quantity: | 1set |
---|---|
Price: | USD2000-10000/set |
Packaging Details: | Electrical and other parts packed by high quality plywood crate, steel beams packed by plastic films or plastic woven cloth |
Delivery Time: | 30-35 working days |
Payment Terms: | L/C, T/T |
Supply Ability: | 5000set/year |
Condition: | New | Warranty: | 12 Months |
---|---|---|---|
Span: | 7.5-31.5m | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Field Installation,commissioning And Training,Online Support,Field Maintenance And Repair Service |
Feature: | Bridge Crane | Max. Lifting Height: | 6m~30m |
Rated Lifting Moment: | Different | Max. Lifting Load: | 1-20t |
Product Name: | Overhead Travelling Crane,Electric Single Girder 10 Ton Overhead Crane With Electric Hoist, Double Girder Wire Rope Overhead Travelling Crane For Sale | Application: | Workshop,Warehouse,plants,factory,warehouse And So On |
Control Method: | Wireless Remote Control,Ground Control,pendant Control | Rated Loading Capacity: | 1-20t |
Color: | Yellow, Red, Or As Requirments | Power Source: | 3 Phase 380V 50hz Or Be Customized |
Power Supply: | 220V~480V 50/60Hz | Crane Feature: | Easy Operated Girder Bridge Crane,Single Girder Overhead Crane,EOT Crane,7.5tons Overhead Crane |
Type: | Single Girder Bridge Crane, Single Girder Overhead Crane | Lifting Mechanism: | Electric Single Girder Hoist |
Lifting Speed: | Inverter Speed Or Dual Speed 0~5m/min | Main Electrical Parts: | Chint, Or As Requirments Siemens, Schneider |
High Light: | 20T Single Girder Overhead Travelling Crane,1T Single Girder Overhead Travelling Crane,SANTO Overhead Electric Hoist Crane |
European FEM/DIN Standard Single Girder Overhead Travelling Crane 1t-20t With Electric Hoist
Description:
This single girder overhead crane is designed and manufactured according to advanced FEM/DIN standard. FEM/DIN single girder overhead crane has compact structure with small wheel pressure, which efficiently uses limited space in workshops to reduce structure investment.
FEM/DIN single girder overhead crane is widely used in machinery manufacturing, metallurgy, ports, rail stations and warehouses to supply more efficient logistic solutions, especially suitable for the places need precise positioning.
Features:
1. Computer optimized design of box-typed main girder, the full length of web plate is cut and formed through numerical control and its deflection is accurate.
2. Low clearance structure of trolley and reasonable size of hook allowing the crane wide application scope.
3. Arc wheels or flat wheels, anti-friction bearings, honey-typed buffers and anti-derailment devices.
4. Three-in-one motor drive, steeples speed control, hardened reducer, safety disc brake.
5. Good performance, runs smoothly with the steeples speed control
6. Shot blasting grade reaches Sa2.5 after welding and releasing internal stresses to insure the best performance of main girder.
7. Painting epoxy zinc-rich primer, and the thickness of oil film is 140 μm.
Advanced Manufacturing Technology:
1. Sandblast pretreatment on steel plates and the surface quality reaches Sa2.5;
2. CNC cutting machine cuts webs plate to insure the curved surface is smooth and accurate;
3. Seams are soldered by automatic arc welding and detected by ultrasonic and X-ray ;
4. The structure of girder and trolley is manufactured by floor-type boring lathe to insure flatness.
Standard Specification:
Lifting Capacity | Span | Lifting Height | Lifting Speed | Hoist Traveling Speed | Crane Traveling Speed | Rail Track Recommended |
(t) | (m) | (m) | (m/min) | (m/min) | (m/min) | (kg/m) |
1 | 7.5~31.5 | 6~12 | 0.8/5 | 2~20 | 3~30 | P24 |
2 | 6~12 | 0.8/5 | 2~20 | 3~30 | P24 | |
3.2 | 6~12 | 0.8/5 | 2~20 | 3~30 | P24 | |
5 | 6~12 | 0.8/5 | 2~20 | 3~30 | P24,P30 | |
10 | 6~12 | 0.8/5 | 2~20 | 3~30 | P30 | |
12.5 | 6~12 | 0.66/4 | 2~20 | 3~30 | P30 | |
16 | 9~12 | 0.66/4 | 2~20 | 3~30 | P43 | |
20 | 9~12 | 0.66/4 | 2~20 | 3~30 | P43 | |
Work Duty | A5 | |||||
Power | 380V, 50Hz or Other | |||||
Temperature of Working Environment | ﹣20℃~﹢40℃ | |||||
Notes: Span, lifting height is customizable as requirements |
Advantage:
1. Use imported motor with insulation grade of F and protection degree of IP54. With overheat alarm. The motor is shielded by aluminum alloy stretching cover with good heat dissipation performance;
2. Imported reducer from Germany. hardened gears with good bearing capacity, excellent seal without penetration of grease;
3. Main electric components imported from international brands such as: Siemens, Schneider and ABB etc. with protection degree not lower than IP54;
4. Wheels are forged by 65mn alloy steel with features of wear-proof, anti-fatigue and long service life.
5. Low energy consumption and maintenance free;
6. Whole crane energy saving about 30%;
7. All-in-one transmission mechanism making it work more efficient;
8. Variable frequency control whose high and low rotating speed ratio is 1:10 and work efficiency increases more than 20%;
9. Less and easy maintenance reduces the cost of maintenance;
10. Manufactured by advanced technology and constituted by high quality imported components greatly reducing malfunction and cost;
Electric System:
1. Power supply through slide lines.
2. Phase protection; automatically disconnect main power when phase stagger occurs.
3. The crane and hoist are mutually independent and could travel at the same time.
4. Sliding contact line meets the requirement of power supplying and adapts shaking.
5. Etch-proof control handle with protection degree IP54.
6. Heavy-duty aviation plug.
7. Electrical components are equipped in position that convenient to maintain, and with good protection to avoid inadvertent contact.

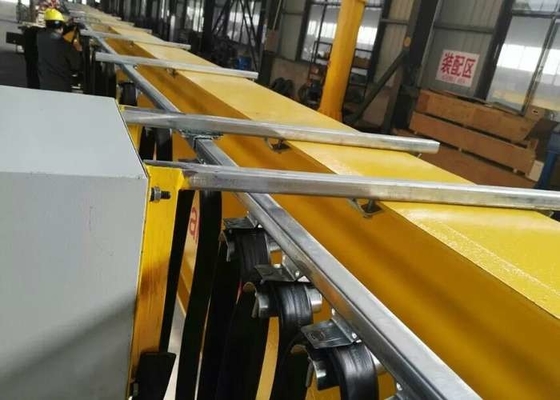

8. Electric cable is suspended in cable trolley which slides flexibly and smoothly on a C-type steel.
Safety Protection:
1. Locked fall-proof reducer;
2. Outdoor hoist with rain-cover;
3. Alarm indicator lights;
4. Infrared anti-collision;
Company Information:
Santo crane mainly dealing in researching, developing and producing the lifting machinery, port machinery, construction-use tower crane, reducer, etc.
The leading products of Santo widely used in Machinery, Metallurgy, Electric Power, Railway, Aerospace , Port, Petroleum, Petrochemical, etc, our products are serving the national key projects such as: the South-to-North Water Transfer Project, the West-East National Gas Transmission, the Three Gorges Hydropower Station, Jiuquan Satellite Lunching Center, Qinshan Nuclear Power Station, Hangzhou Bay Bridge, Beijing Olympic Games and so on, accelerate successfully the launch of Spacecraft Shenzhou-10 and Chang’e-3,our products have been exported to more than 69 countries like America, Japan, Russia, Korea, etc. In 2013 the annual sales revenue reached 6.669 billion, and the Overhead Traveling Crane and the Gantry Crane continue to hold the first position around the whole country
