| Place of Origin: | China |
| Brand Name: | Santo Crane |
| Certification: | ISO, CE |
| Model Number: | LD, LDP,LX |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | 6000USD~20000USD /set |
| Packaging Details: | Plastic sheets for beams, spare parts are packed in wooden case |
| Delivery Time: | 15~30 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5000sets /year |
| Condition: | New | Span: | 7.5m-31.5m Or On Request |
|---|---|---|---|
| Max. Lifting Height: | 30m | Feature: | Bridge Crane |
| Type: | Hoist Single Girder Bridge Crane | Lifting Mechanism: | Electric Hoist |
| Application: | Workshop, Warehouse, Factory | Color: | Red ,Yellow Or On Request |
| Power Supply: | 220V-480V 50/60Hz | Control Method: | Wireless Remote Control, Pendent Control,Cab Control |
| High Light: | Q235B Single Beam Overhead Crane,Q345C Single Beam Overhead Crane,Workshop Single Beam Overhead Crane |
||
Q235B/Q345C Material Single Beam Overhead Crane For Workshop Using
Description:
LDA model single girder EOT crane is a kind of light duty crane, with the capacity of 1 to 20 tons.
The span is 7.5to 31.5 meters. Working duty is A3 A4. Working environment temperature is -20°C to 40°C.
Single girder EOT crane consists of main beam,end beam,electric hoist,festoon cable and electric control system.
It is widely used in plants, warehouse, and material stocks to lift goods.
Specification:
|
Lifting capacity(t) |
0.5~10t |
|
|
Crane traveling mechanism |
Traveling speed |
20 |
|
Rotational speed m/min |
1380 |
|
|
Lifting mechanism& hoist traveling mechanism |
Type |
CD1, MD1 |
|
Lifting speed m/min |
8 0.8/8 |
|
|
Lifting height m |
6 9 12 18 |
|
|
Traveling speed m/min |
20 |
|
|
Working system |
A3 |
|
|
Power supply |
380V, 50Hz, AC, 3-Phase |
|
|
Applicable track steel I-beam |
120a~145c |
|
Adventages:

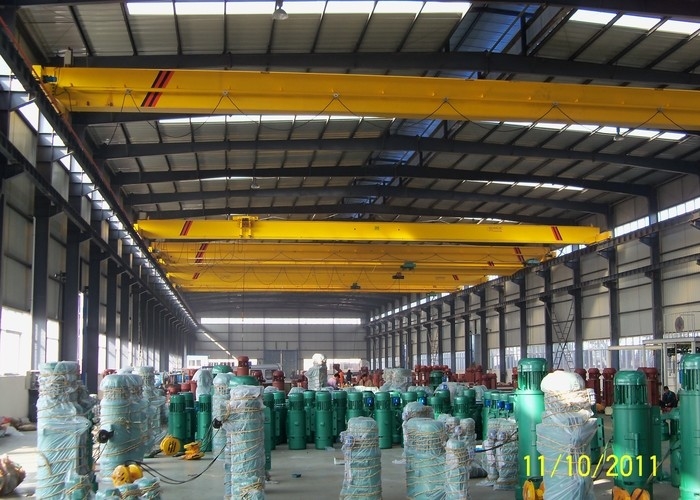

Pictures show:
