| Place of Origin: | China |
| Brand Name: | Santo Crane |
| Certification: | ISO, CE |
| Model Number: | LD, LDP,LX |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | 6000USD~20000USD /set |
| Packaging Details: | Plastic sheets for beams, spare parts are packed in wooden case |
| Delivery Time: | 20~40 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5000sets /year |
| Type: | Hoist Single Girder Bridge Crane | Span: | 7.5m-31.5m Or On Request |
|---|---|---|---|
| Max. Lifting Capacity: | 20t For Single Girder | Max. Lifting Height: | 30m |
| Lifting Mechanism: | Electric Hoist | Control Method: | Wireless Remote Control, Pendent Control,Cab Control |
| Condition: | New | Power Supply: | 220V-480V 50/60Hz |
| Feature: | Bridge Crane | Application: | Workshop, Warehouse, Factory |
| High Light: | 16.5m Span Electric Overhead Traveling Crane,3m Span Electric Overhead Traveling Crane,Warehouse 5 Ton Single Girder Crane |
||

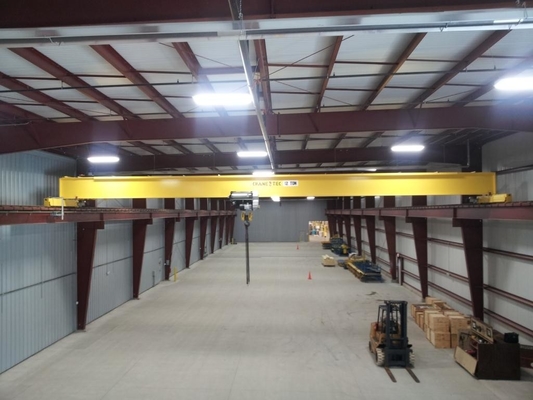

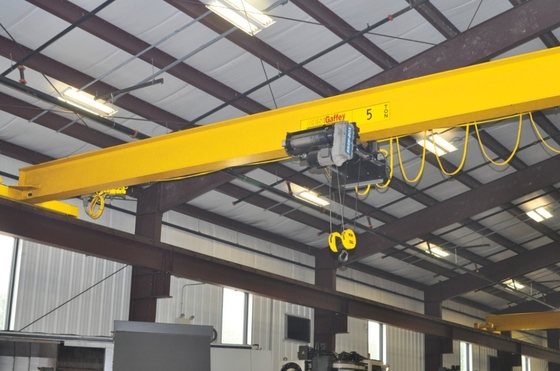

5Ton Single Girder Beam Bridge Electric Overhead Traveling Crane In Workshop Plant
Introduction:
LX single girder suspension overhead crane is characterized by more reasonable structure and higher strength steel as a whole, used together with CD1, MD1 electric hoist as a complete set. It's a light duty track traveling crane.
The product is widely used in loading goods in port, factory, workshop and power plant. This product is ground operation.
The span is 3m-16.5m.
Specification:
|
Lifting capacity(t) |
0.5~10t |
|
|
Crane traveling mechanism |
Traveling speed |
20 |
|
Rotational speed m/min |
1380 |
|
|
Lifting mechanism& hoist traveling mechanism |
Type |
CD1, MD1 |
|
Lifting speed m/min |
8 0.8/8 |
|
|
Lifting height m |
6 9 12 18 |
|
|
Traveling speed m/min |
20 |
|
|
Working system |
A3 |
|
|
Power supply |
380V, 50Hz, AC, 3-Phase |
|
|
Applicable track steel I-beam |
120a~145c |
|
Adventages:
1) Appearance: compact size, building headroom low light self-weight.
2) Using environment: mechanical processing workshop, metallurgical plant auxiliary workshops, warehouses, the field and power stations of transport, assembly and maintenance and handling.
3) Control method: pendent control, remote control,cabin control
4) Temperature: - 25°c ~ 40°c
Our service:
1.12 months warranty after installation and commissioning in addition to the human damage factors.
2. 2 years spare-parts provided for better maintenance.
3. Professional technical staffs provide installation, commissioning and training services.
4. Delivery with English user manual, parts manual, product certification and other relevant certificates.
5. Technical advisory for any time and engineers available to service machinery overseas.

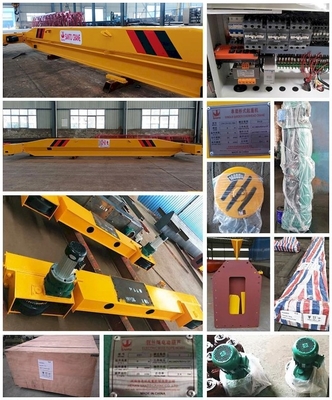

Pictures show:
Certificate:
Customer Visit:
