| Place of Origin: | CHINA |
| Brand Name: | SANTO CRANE |
| Certification: | ISO, CE |
| Model Number: | LD LT |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD2,000~15,000/SET |
| Packaging Details: | Main girder and end truck packaged by woven fabric, Electrical part packaged by wooden box. |
| Delivery Time: | 25 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 40000 Set/Sets per Year |
| Span: | 7.5-31.5m | Feature: | Bridge Crane,Single Girder Overhead Crane Price 10 Ton For Sale |
|---|---|---|---|
| Max. Lifting Height: | 6m~30m | Max. Lifting Load: | 32ton |
| Application: | Workshop,Warehouse,plants,factory,warehouse And So On | Rated Loading Capacity: | 1~32t |
| Color: | Clients' Requirments | Control Method: | Wireless Remote Control,Ground Control,pendant Control |
| High Light: | 380V 50HZ Single Girder Overhead Crane,31.5m span 10t overhead crane,50HZ 10T Electric Single Beam Crane |
||
Single Girder Electric Overhead Crane Indoor Lifting Equipment 1ton 5ton 10ton
Introduction:
LD model single girder overhead is designed as China national standard. It is reasonably structured as well as highly stiff. The common applications are for light duty works. 4-6 working hours per days is reasonable. It is widely seen in workshop, warehouse, processing plant, etc. And it is the best choice for handling work, maintenance work, loading/unloading , transfer goods, etc. The common capacity is from 1ton to 16ton, and Max. 32ton.
Specification:
| Lifting capacity | t | 1, 2, 3, 5, 10 | 16, 20 | |||||||||
| Span | m | 7.5-31.5 | ||||||||||
| Lifting height | m | 6, 9, 12, 18, 24, 30 | 9, 12, 18, 24, 30 | |||||||||
| Traveling mechanism | Traveling speed | m/min | 20 | 30 | 45 | 60 | 75 | 20 | 30 | 45 | 60 | 75 |
| Reducer ratio | 58.78 | 39.38 | 26.36 | 19.37 | 15.88 | 58.78 | 39.38 | 26.36 | 19.37 | 15.88 | ||
| Motor model | ZDY21-4 | ZDY122-4 | ZDY131S-4 | |||||||||
| Motor power | kw | 0.8*2 | 1.5*2 | 1.5*2 | 2.2*2 | |||||||
| Motor rotation | m/min | 1380 | 1380 | |||||||||
| Lifting mechanism | Electric hoist model | CD1/MD1 | CD1/MD1/HC | |||||||||
| Lifting speed | m/min | 8, 8/0.8, 7, 7/0.7 | 3.5, 3.5/0.35 | |||||||||
| Traveling speed | m/min | 20(30) | 20(30) | |||||||||
| Motor | Taper Squirrel-cage type | Taper Squirrel-cage type | ||||||||||
| Working duty | A3-A5 | |||||||||||
| Power supply | 380V-50HZ, 3Phase or as your demand | |||||||||||
Safety Device:
Features:
All the standards which required for the crane is the Chinese national standard, and we also passed the CE, ISO, and BV certificates .The quality is great.

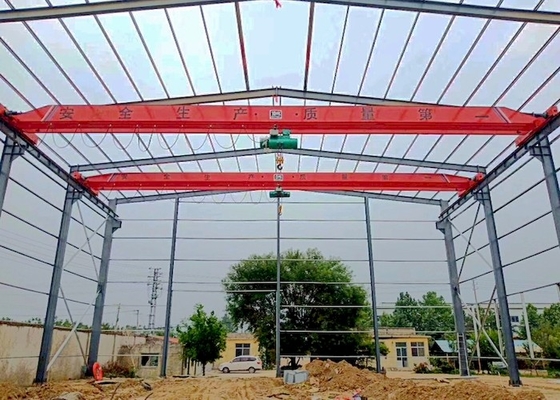

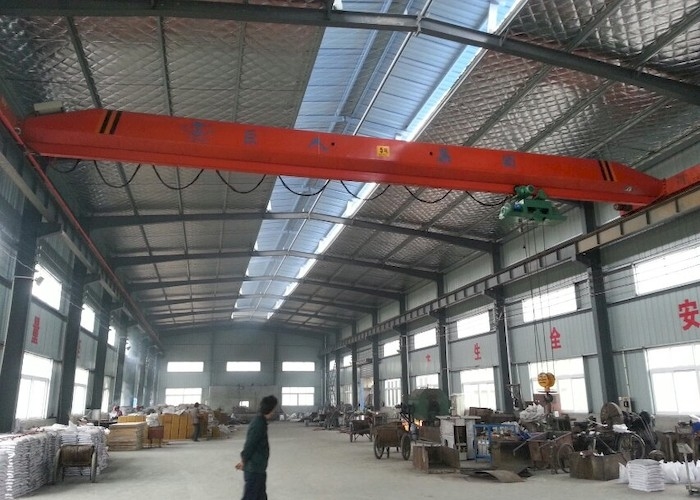

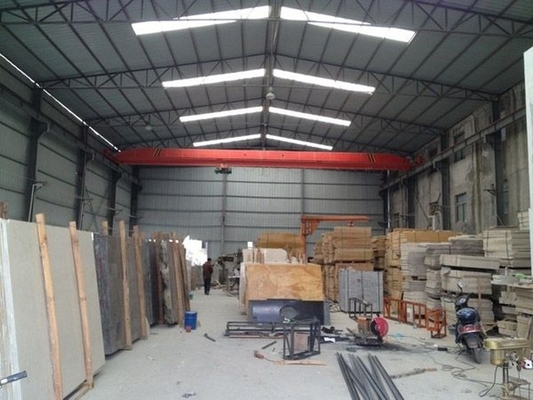

Photos:
