| Place of Origin: | China |
| Brand Name: | Santo |
| Model Number: | LDA |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | 8500USD - 15000USD |
| Packaging Details: | Nude packing for beam parts, wood case for electric parts,accessories. |
| Delivery Time: | 20-40 Working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 3000 Sets / Year |
| Span: | 7.5m-31.5m Or On Request | Feature: | Bridge Crane |
|---|---|---|---|
| Lifting Height: | 6M-30M | Application: | Workshop, Warehouse, Factory |
| Control Method: | Wireless Remote Control, Pendent Control,Cab Control | Load Capacity: | 1ton-32ton |
| Working Class: | A3-A5 | Color: | Red ,Yellow Or On Request |
| High Light: | 5Ton Single Girder Overhead Crane,3 ton overhead bridge crane 6M,Overhead 30M Lifting Equipment Crane |
||
3 Ton 5 Ton 10 Ton Single Girder Overhead Crane Grinder Indoor Lifting Equipment Crane
Description:
Chinese standard single girder overhead crane is a kind of crane travelling along two parallel rails and lifting mechanisms travel along horizontal main girder. Chinese standard single girder overhead crane is composed of main girder, end girders, traveling mechanisms, lifting mechanism (hoist) and electrical components. This crane is usually used in long distance workshops and runs along the rails on both sidewalls.
This crane is a single girder type crane with traditional steel girder or box-typed girder. The lifting capacity is usually less than 20 tons. This type crane can be used in steel plants, hydro-power stations, warehouses and workshops etc.
Application:
Electric Hoist Single Girder Beam Overhead Crane is widely used in plants, warehouses, material stocks to lift goods. It is prohibited to use the equipment in the combustible, explosive or corrosives environment.This product has two operational methods, ground or operational room which is open or closed model and can be installed on left or right side according to the practical situation. And the direction of entering the gate has two forms, sideway and ends in order to satisfy the users' choice under different conditions.
Specification:
|
Lifting capacity |
t |
1, 2, 3, 5, 10 |
16, 20 |
|||||||||
|
Span |
m |
7.5-31.5 |
||||||||||
|
Lifting height |
m |
6, 9, 12, 18, 24, 30 |
9, 12, 18, 24, 30 |
|||||||||
|
Traveling mechanism |
Traveling speed |
m/min |
20 |
30 |
45 |
60 |
75 |
20 |
30 |
45 |
60 |
75 |
|
Reducer ratio |
|
58.78 |
39.38 |
26.36 |
19.37 |
15.88 |
58.78 |
39.38 |
26.36 |
19.37 |
15.88 |
|
|
Motor model |
|
ZDY21-4 |
ZDY122-4 |
ZDY131S-4 |
||||||||
|
Motor power |
kw |
0.8*2 |
1.5*2 |
1.5*2 |
2.2*2 |
|||||||
|
Motor rotation |
m/min |
1380 |
1380 |
|||||||||
|
Lifting mechanism |
Electric hoist model |
|
CD1/MD1 |
CD1/MD1/HC |
||||||||
|
Lifting speed |
m/min |
8, 8/0.8, 7, 7/0.7 |
3.5, 3.5/0.35 |
|||||||||
|
Traveling speed |
m/min |
20(30) |
20(30) |
|||||||||
|
Motor |
|
Taper Squirrel-cage type |
Taper Squirrel-cage type |
|||||||||
|
Working duty |
|
A3-A5 |
||||||||||
|
Power supply |
|
380V-50HZ, 3Phase or as your demand |
||||||||||
Advantage:
1. Rigid box-typed main girder;
2. Shot blasting for the whole body after welding and releasing internal stresses;
3. Painting epoxy zinc-rich primer, and the thickness of oil film is 140μm;
4. Main girder and end girders are connected by 10.9 degree high-strength bolts;
5. Driven by electric reducer or traditional LD drive system;
6. Running smoothly, brake efficiently, long service life;
Electric System:
1. Supplying power through steeples slide line;
2. The crane and hoist are mutually independent and could travel at the same time;
3. Etch-proof control handle with protection degree of IP54;
4. Electric cable is suspended in cable trolley which slides flexibly and smoothly on a C-type steel;
Safety Protection:
Overload limiter, limit switch (lifting and travelling), interlocking protection device, buffer, rail clear plate, shield, bus protection plate, anti-collision device, main disconnecting switch, emergency brake system and motor overload protection device.

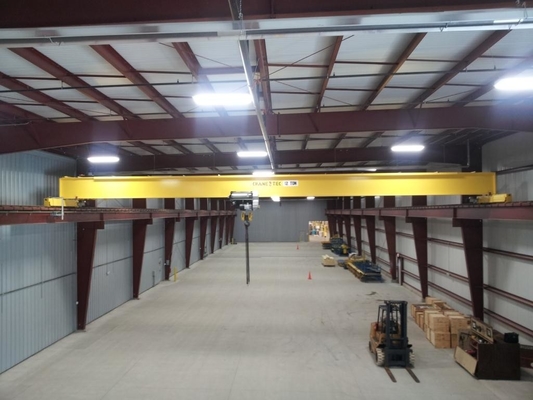

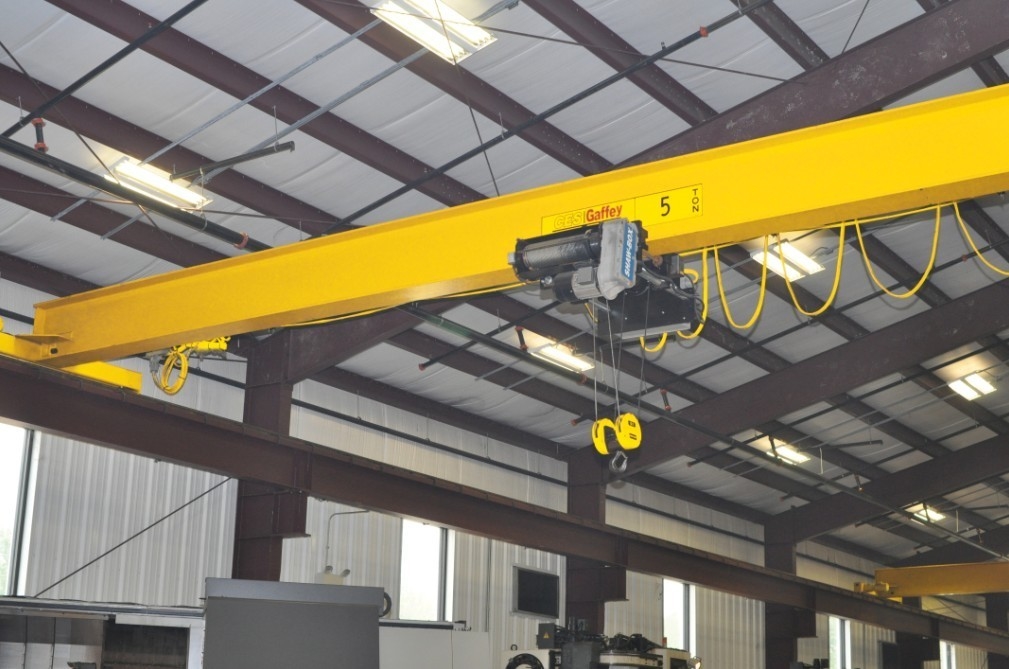

Photos:
