2t Suspension Bridge Overhead Crane System Flexible Combined With Chain Hoist

2t Suspension Bridge Overhead Crane System Flexible Combined With Chain Hoist

  • 2t Suspension Bridge Overhead Crane System Flexible Combined With Chain Hoist
  • 2t Suspension Bridge Overhead Crane System Flexible Combined With Chain Hoist
  • 2t Suspension Bridge Overhead Crane System Flexible Combined With Chain Hoist
2t Suspension Bridge Overhead Crane System Flexible Combined With Chain Hoist
Product Details:
Place of Origin: CHINA
Brand Name: SANTO
Certification: ISO, CE
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD3000-10000/set
Packaging Details: Electrical and other parts packed by high quality plywood crate, steel beams packed by plastic films or plastic woven cloth
Delivery Time: 20-30 working days
Payment Terms: L/C, T/T
Supply Ability: 5000set/year
Contact Now
Detailed Product Description
Max. Lifting Load:: 3200kg Bridge Span: 3m To 12m
Lifting Mechanism: Electric Chain Hoist Lifting Height: 3m, 6m, 9m Or As Requirements
Product Name: Kbk Light Crane System, Workstation Crane Lifting Speed: Variable Speed (standard)
Control Method: Pendant Control Or As Request Voltage: 380V, 50Hz, 3-phase AC Or As Request
Condition: New Feature: Standard Modular Design
Warranty: 1 Year
High Light:

2T Overhead Crane System


2T Suspension Bridge Crane


Flexible Overhead Crane System

Hot Sale 2 T Overhead Crane System Light Flexible Combined Overhead Crane With Chain Hoist Suspension Bridge Crane




KBK is the general name for flexible beam cranes. The maximum lifting capacity is 2 tons. It is a design of station cranes originating from Europe. The KBK is a combination of suspensions, rails, ballasts, trolleys, electric hoists, mobile power supply units (sliding lines) and control units. It can be transported directly in the air by simply hanging it on the roof or on the beam.

KBK Crane Specification:

KBK-LD Type Single Girder Workstation Suspension Crane

KBK Modular Crane System Ceiling Mounted and Free Standing Workstation Crane 125kg to 3200kg with European Modular Design

125 250 500 1000
L 9000 8000 7000 4000
LK 8500 7500 6500 3500
L2 95 95 95 220
L3 645 585 525 470
B 190 190 190 460
H 808 898 948 1071
h 335 335 335 349
We can customised design according to customers' requirements.




Our KBK light crane system can be utilized in production facilities for the following industries and more:

  • Applications with lighter loads (usually less than 3200 kgs.)
  • Parts Assembly
  • Machining
  • Palletizing loads
  • Injection Molding
  • Warehouse loading docks
  • Process Equipment Maintenance
  • Logistics
  • Metal Manufacturing
  • Wind Power
  • Automobile Making
  • Rail Transfer
  • Construction Machinery


1. KBK Flexible Monorail Crane


KBK suspended monorail cranes are also known as KBK monorails and monorail cranes. The suspended monorail crane consisting of KBK standard components enables linear air transport of materials.




Suspension cranes are widely used and feature outstanding. Since all components can be arbitrarily combined, the track orientation can be flexibly arranged according to the building conditions of the customer's shop floor to meet the special requirements of specific products and working positions in the production process.

The orientation of the KBK monorail cranes is flexible: from simple, manually controlled linear rails to circular rails with a large number of branches, semi-automatic and fully automated controls.


2. KBK Flexible Single Girder Suspension Crane


Customer-specific configuration to meet individual requirements.



KBK Crane Features:

■ Reasonable KBK Crane Installation Size, Light Weight

The KBK flexible single girder crane consists of KBK standard components, enabling you to quickly and reliably achieve material handling in specific areas and precise positioning of various components.

■ Cost-effective

It can be simply hung on the roof of the building or superstructure. The crane track does not require additional auxiliary support. It can be installed simply and reliably at a lower cost, whether it is serving the workshop part or all.

■ Safe and Reliable

Thanks to its light weight and light weight operation, the KBK single-beam suspension crane can quickly and reliably transport those bulky workpieces. Maximum lifting capacity is 1000kg, maximum span is 8.5m.

■ Good Reliability and High Stability

The components of the kbk light crane system are all standard modules, which can guarantee large-volume, high-quality production, therefore the flexible single girder crane system is very reliable; the main body of the system module is three kinds of cold-rolled profiles with high strength, good rigidity and light weight, which ensures the stability of the system.

■ Strong Adaptability

KBK flexible single girder suspension crane can be flexibly designed and installed according to the needs of each station in the factory. From fixed-point delivery to high-accuracy multi-point, multi-beat automated conveyor lines, they can be combined at will. KBK flexible single girder suspension crane can be used in newly designed workshops and can also be used for system retrofits and extensions.

■ Easy to Install

Installation and commissioning of KBK single girder suspension crane is very convenient. The profiles and the standard modules can be used only by bolt connection,, which can save the space and area of the factory, thereby reducing energy consumption and improving enterprise efficiency. The system can be operated manually or automatically and semi-automatically.


Related Products:

We offer a complete range of Spare Parts / Components /kits for cranes and lifting machinery that are tailored to meet specific customer needs.

Our crane kit packages provide the high quality and reliable operation for our customers expect from Santo Cranes while all the Spare Parts / Components /kits can be tailored to the specifics of your single-girder, double-girder, or suspension cranes.


We can provide:

-End Carriages, end trucks and Travel Units

-Hoists: rope hoist, chain hoist

-Power Supply: conductor bus bar, conduct rails, festoon system

-Control System: radio remote control and pendant control, cam control, joystick control

-Hook block, hook

-Crane wheel, wheel assemble

-Rope drum

-Lifting tools below hook: grab bucket, lifting magnet

-pulley, pulley block

For more information on our crane kits, you can contact us in the bottom of this page.

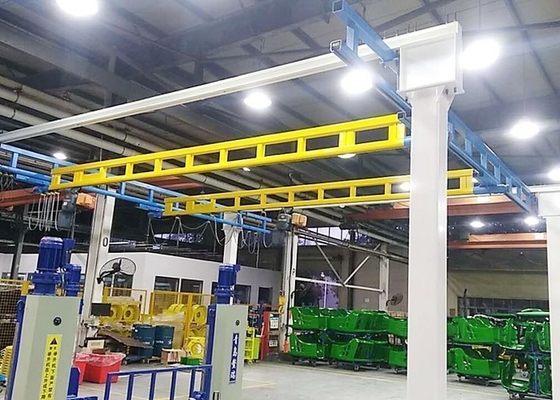

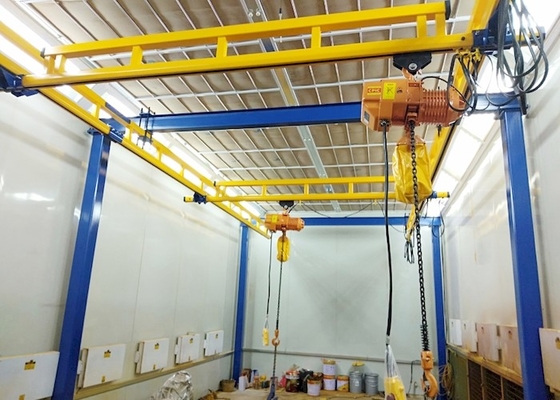

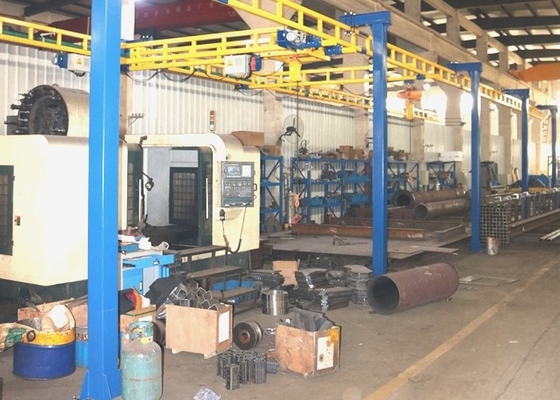

KBK Crane Photos:


2t Suspension Bridge Overhead Crane System Flexible Combined With Chain Hoist 3

2t Suspension Bridge Overhead Crane System Flexible Combined With Chain Hoist 4
