| Place of Origin: | CHINA |
| Brand Name: | SANTO |
| Certification: | ISO, CE |
| Model Number: | KBK-D, KBK-LD, KBK-LS, KBK-LSS, KBK-DZX, KBK-BZX, KBK-MD, KBK-MS, KBK-DT, KBK-JS |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | USD2000-10000/set |
| Packaging Details: | Electrical and other parts packed by high quality plywood crate, steel beams packed by plastic films or plastic woven cloth |
| Delivery Time: | 15-30 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5000set/year |
| Bridge Span: | 3m To 12m | Feature: | Standard Modular Design, Kbk Light Crane System, Workstation Crane |
|---|---|---|---|
| Max. Lifting Height: | 3m, 6m, 9m Or As Requirements | Max. Lifting Load: | 3200kg |
| Product Name: | Kbk Light Crane System, Workstation Crane | Application: | Workshop,Warehouse,plants,factory,warehouse And So On |
| Control Method: | Wireless Remote Control, Pendant Control | Color: | Yellow, Red, Or As Requirments |
| Power Supply: | 220V~480V 50/60Hz | Crane Feature: | Easy Operated Flexible Overhead Crane |
| Lifting Mechanism: | Chain Hoist | Electrical Parts: | Chint, Or As Requirments Siemens, Schneider |
| High Light: | 3.2T KBK Light Crane System,1T KBK Light Crane System,KBK Hoist Workstation Lifting Systems |
||
KBK Rail Crane Load Capacities 1000kgs Up To 3200kgs Standard Modular Design, Kbk Light Crane System, Workstation Crane
Description:
KBK Flexible Double Girder Suspension Crane
KBK double-girder suspension crane is a kind of lifting equipment that is designed to move in the direction of orbit along the factory building, the lateral movement of the trolley, and the lifting movement of the hook. It is suitable for the loading, unloading and lifting in warehouses, workshops and stockyards of industrial and mining enterprises. KBK double-girder suspension crane is not suitable for high temperature (>+40 °C) and low temperature (<-20 °C), dissolved red hot metal and its workplace with strong corrosive chemical gases.
|
KBK-LD Type Single Girder Workstation Suspension Crane
|
||||
| Capacity (kg) Dimension (mm) |
125 | 250 | 500 | 1000 |
| L | 9000 | 8000 | 7000 | 4000 |
| LK | 8500 | 7500 | 6500 | 3500 |
| L2 | 95 | 95 | 95 | 220 |
| L3 | 645 | 585 | 525 | 470 |
| B | 190 | 190 | 190 | 460 |
| H | 808 | 898 | 948 | 1071 |
| h | 335 | 335 | 335 | 349 |
| We can customised design according to customers' requirements. | ||||
KBK Flexible Double Girder Suspension Crane Features
■ Higher Lifting Height
Because the lifting hoist is suspended on the small frame between the two KBK main beams, the kbk double girder crane can provide higher lifting space than the kbk single girder crane.
■ Larger Span
KBK flexible double-beam suspension crane can be multi-track suspension, thus achieving a large span to cover a larger storage and production area, the crane can easily move by hand, but when the crane track span exceeds 6m and the crane load exceeds 500kg, it is recommended to use an electric friction wheel to drive the walking scheme. The maximum span can reach 9 meters. The lifting weight is from 125kg to 2000kg.
■ Good Reliability, High Stability
The components of the crane system are all standard modules, which can ensure large-volume, high-quality production, so the system is very reliable. The main body of the system module is three kinds of cold-rolled profiles, high strength, good rigidity and light weight, ensuring the system stability.
■ Strong Adaptability
Flexible design and installation according to the needs of each station in the factory. From fixed-point delivery to high-accuracy multi-point, multi-beat automated conveyor lines, they can be combined at will. It can be used in newly designed workshops and can also be used for system retrofits and extensions.
■ Easy to Install, Cost-effective
The installation and commissioning of the kbk double-girder crane is very convenient. The profiles and the standard modules can be used only by bolt connection, which can save space and area of the factory, thereby reducing energy consumption and improving enterprise efficiency. The system can be operated manually or automatically and semi-automatically.
Application:

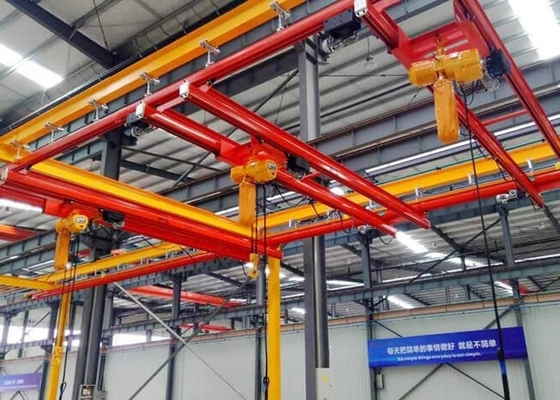

KBK Flexible Combination Crane|KBK Light Crane System

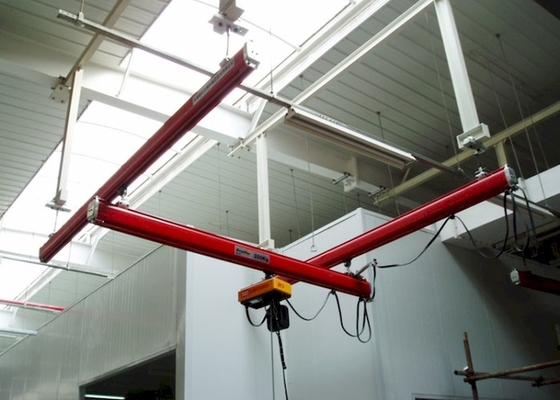

KBK Single-beam Combined Crane
KBK single-beam combined crane can quickly and safely complete the lifting operation of various materials. Its walking mechanism is very light in weight, light in operation and can move as desired. It can also be simply suspended on the top structure of the plant, without the need for additional columns, which improves the space utilization and has good economy.

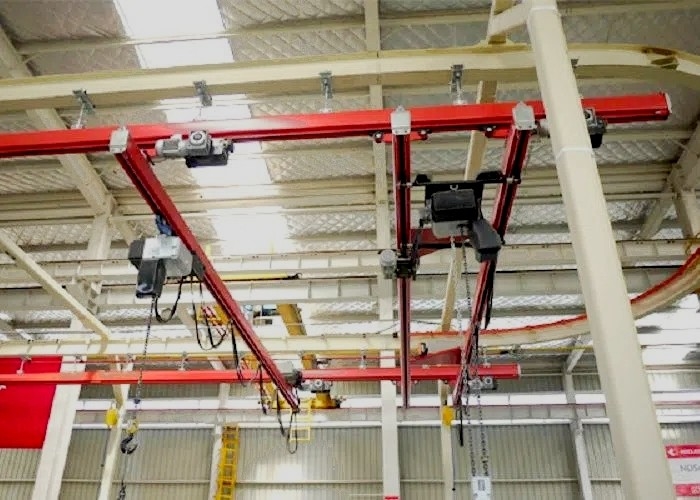

KBK flexible double beam combined crane
The KBK flexible double-beam combined crane is a combination of standard KBK components, which can absorb the horizontal load shock caused by the braking at the maximum, and obtain a larger span than the single-beam combined crane. At the same time, due to the lifting mechanism suspended between the two main beams, the KBK flexible double-beam combined crane has a higher lifting height.
KBK Telescopic Beam Crane
The KBK telescopic beam crane is equipped with a telescopic beam under the main beam of the crane. It can extend from one side or both sides to avoid obstacles such as columns, walls or pipes to obtain a larger working range.
Photos:
