SANTO 2 Ton Semi Automatic KBK Crane Flexible Double Girder Suspension Crane

2 Ton Semi - Automatically KBK Crane Not Require Additional Auxiliary Supports

Description:

KBK rail cranes are widely used in the field of material transportation at present. Below we briefly introduce the basic advantages and use characteristics of KBK rail cranes.
Since KBK rail cranes make full use of the free space above the work surface and production line, valuable floor space is left for other production activities.
KBK standard components are designed and manufactured in accordance with the concept of standardization and modularization, with flexibility, reliable system performance, flexible operation, and simple and convenient installation.
Because each component is produced in standardized modules, the installation of each component is convenient and flexible. The splicing and debugging of the track can be completed in a short time, so the short investment time is also one of its advantages.

KBK Flexible Double Girder Suspension Crane Features:

1. Reasonable installation size and light weight
The crane is composed of KBK standard components, which allows you to quickly and reliably realize material transportation in specific areas and the positioning of individual components.

2. High cost performance
It can simply be hung on the roof or superstructure of a building. Crane rails do not require additional auxiliary supports. Whether it is part or all of a workshop, it can be installed simply, reliably and inexpensively.

3. Safe and reliable
Due to the light weight of the equipment and the light operation of the operating trolley, the JKBK single-girder suspension crane can easily move manually, so that those heavy objects can be moved quickly and reliably.

4. Good reliability and high stability
The components of the system are all standard modules, which can guarantee large-scale, high-quality production, so the system is very reliable; the main body of the system module is three types of cold-rolled profiles, with high strength, good stiffness and light weight, ensuring system stability.

5. Strong adaptability
Flexible design and installation according to the needs of each workstation in the factory. From fixed-point delivery to high-precision multi-point, multi-beat automatic conveyor lines, they can be combined in any combination. It can be used for newly designed studios, as well as for system modification and expansion.

6. Easy to install and cost-effective
Easy to install and debug. Profiles and standard modules can only be used by bolting, which saves space and area in the factory, thereby reducing energy consumption and improving business efficiency. The system can be operated manually, as well as automatic and semi-automatic, with high operating efficiency.

KBK Crane Specification:

Structure And Composition:

KBK is mainly composed of tracks, suspension devices, walking trolleys, lifting devices and some functional components. All modules are standard components and can be freely assembled according to the needs of the workshop.

The track is a closed track, with straight track and curved track, divided into Ω type or C type, and the materials commonly used are steel, aluminum alloy and carbon steel. Because it is a standard component, it can be assembled into any structure such as long and short single track, multi-track, curved track or circular track.

The suspension device is generally installed on the lower edge of the I-beam/H-beam or on the concrete beam. It has a certain self-locking function and is easy and reliable to install.

The walking trolley is hung in the track, which is used to walk in the X and Y axis directions. It can be used as a manual or electric trolley as needed.

The lifting device is generally an electric hoist, an electric chain hoist, a pneumatic balancer, and an intelligent hoist is used in conjunction with a spreader.

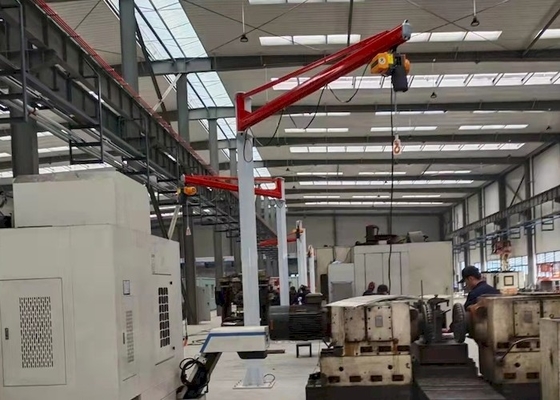

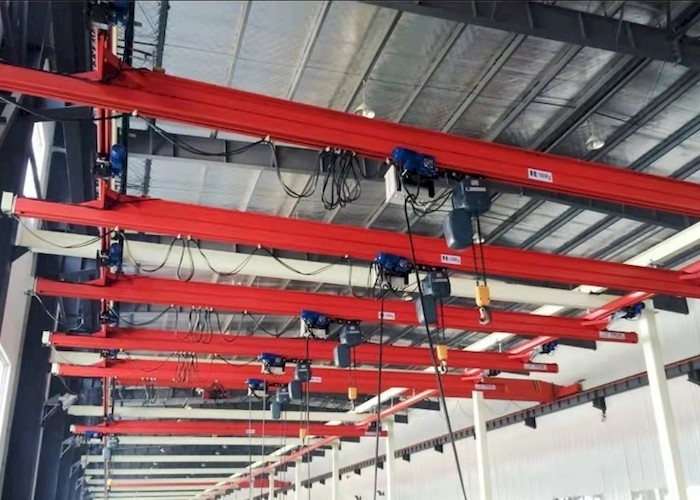

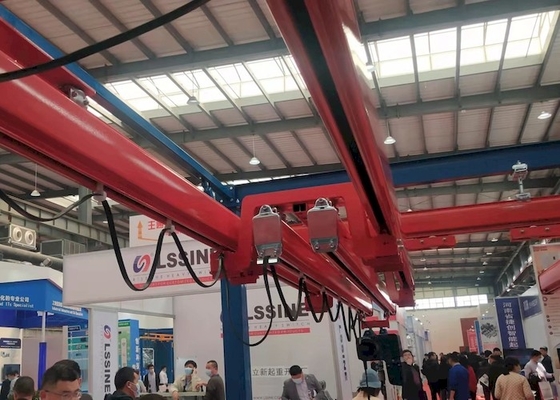

Detail Photos:
