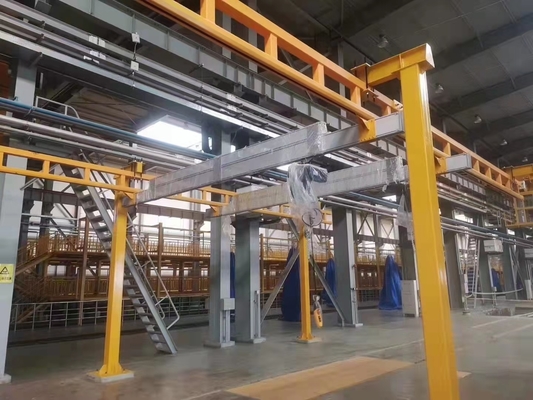

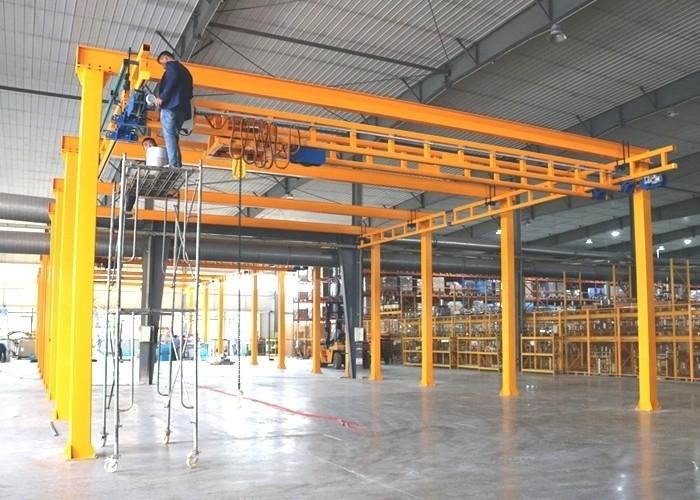

Beam Crane Track Light Duty Overhead Crane Free Standing 1ton

Beam Crane Track Light Duty Overhead Crane Free Standing 1ton

  • Beam Crane Track Light Duty Overhead Crane Free Standing 1ton
  • Beam Crane Track Light Duty Overhead Crane Free Standing 1ton
  • Beam Crane Track Light Duty Overhead Crane Free Standing 1ton
Beam Crane Track Light Duty Overhead Crane Free Standing 1ton
Product Details:
Place of Origin: CHINA
Brand Name: SANTO
Certification: ISO, CE
Model Number: KBK-D, KBK-LD, KBK-LS, KBK-LSS, KBK-DZX, KBK-BZX, KBK-MD, KBK-MS, KBK-DT, KBK-JS
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD1000-10000/set
Packaging Details: Electrical and other parts packed by high quality plywood crate, steel beams packed by plastic films or plastic woven cloth
Delivery Time: 20-30 working days
Payment Terms: L/C, T/T
Supply Ability: 5000set/year
Contact Now
Detailed Product Description
Max. Lifting Load:: 3200kg Bridge Span: 3m To 12m
Lifting Mechanism: Electric Chain Hoist Lifting Height: 3m, 6m, 9m Or As Requirements
Product Name: Kbk Light Crane System, Workstation Crane Lifting Speed: Variable Speed (standard)
Control Method: Pendant Control Or As Request Voltage: 380V, 50Hz, 3-phase AC Or As Request
Condition: New Feature: Standard Modular Design
Warranty: 1 Year
High Light:

Kbk Light Crane System

,

Light Duty Overhead Crane Free Standing

,

1ton Light Duty Overhead Crane

Beam Crane Track Light Duty Overhead Crane Free-Standing Crane 1ton


Description:

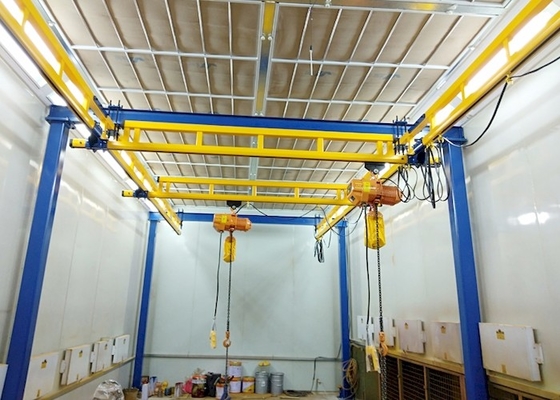

KBK-LS Type Double Girder Workstation Suspension Crane

KBK double-girder suspension crane is a kind of lifting equipment that is designed to move in the direction of orbit along the factory building, the lateral movement of the trolley, and the lifting movement of the hook. It is suitable for the loading, unloading and lifting in warehouses, workshops and stockyards of industrial and mining enterprises. KBK double-girder suspension crane is not suitable for high temperature (>+40 °C) and low temperature (<-20 °C), dissolved red hot metal and its workplace with strong corrosive chemical gases.




KBK Flexible Double Girder Suspension Crane Features

■ Higher Lifting Height

Because the lifting hoist is suspended on the small frame between the two KBK main beams, the kbk double girder crane can provide higher lifting space than the kbk single girder crane.

■ Larger Span

KBK flexible double-beam suspension crane can be multi-track suspension, thus achieving a large span to cover a larger storage and production area, the crane can easily move by hand, but when the crane track span exceeds 6m and the crane load exceeds 500kg, it is recommended to use an electric friction wheel to drive the walking scheme. The maximum span can reach 9 meters. The lifting weight is from 125kg to 2000kg.

■ Good Reliability, High Stability

The components of the crane system are all standard modules, which can ensure large-volume, high-quality production, so the system is very reliable. The main body of the system module is three kinds of cold-rolled profiles, high strength, good rigidity and light weight, ensuring the system stability.

■ Strong Adaptability

Flexible design and installation according to the needs of each station in the factory. From fixed-point delivery to high-accuracy multi-point, multi-beat automated conveyor lines, they can be combined at will. It can be used in newly designed workshops and can also be used for system retrofits and extensions.

■ Easy to Install, Cost-effective

The installation and commissioning of the kbk double-girder crane is very convenient. The profiles and the standard modules can be used only by bolt connection, which can save space and area of the factory, thereby reducing energy consumption and improving enterprise efficiency. The system can be operated manually or automatically and semi-automatically.



Technical Specification:



KBK Modular Crane System Ceiling Mounted and Free Standing Workstation Crane 125kg to 3200kg with European Modular Design

Capacity
(kg)
Dimension
(mm)
500 1000 2000
L 8000 6000 3500
LK 7500 5500 3000
L2 507 507 467
L3 1177 937 717
H 847 942 1071
h 733 828 957
B 740 740 1110
b 550 550 650
We can customised design according to customers' requirements.



KBK Flexible Combination Crane|KBK Light Crane System

KBK Combined Monorail Crane

KBK combined monorail crane is suitable for linear conveying of materials. It can connect the loading and unloading stations directly for round-trip transportation and circular conveying operations, and can realize the rails through different components such as straight rails, curved rails, turnouts and turntables to walk freely.




KBK Single-beam Combined Crane

KBK single-beam combined crane can quickly and safely complete the lifting operation of various materials. Its walking mechanism is very light in weight, light in operation and can move as desired. It can also be simply suspended on the top structure of the plant, without the need for additional columns, which improves the space utilization and has good economy.




KBK flexible double beam combined crane

The KBK flexible double-beam combined crane is a combination of standard KBK components, which can absorb the horizontal load shock caused by the braking at the maximum, and obtain a larger span than the single-beam combined crane. At the same time, due to the lifting mechanism suspended between the two main beams, the KBK flexible double-beam combined crane has a higher lifting height.




KBK Telescopic Beam Crane

The KBK telescopic beam crane is equipped with a telescopic beam under the main beam of the crane. It can extend from one side or both sides to avoid obstacles such as columns, walls or pipes to obtain a larger working range.
