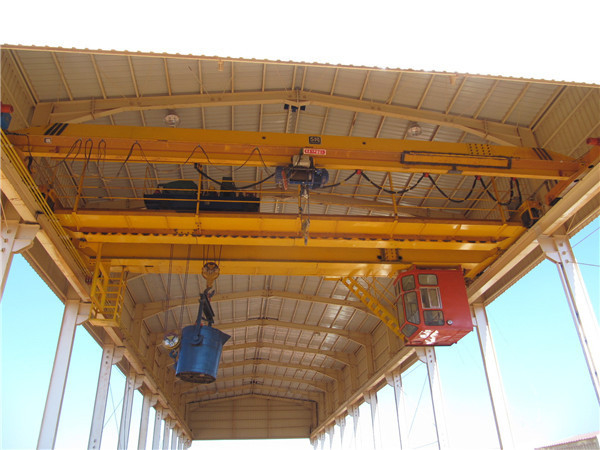

Double Girder Electric Overhead Crane Bridge Overhead Crane

Double Girder Electric Overhead Crane Bridge Overhead Crane

  • Double Girder Electric Overhead Crane Bridge Overhead Crane
  • Double Girder Electric Overhead Crane Bridge Overhead Crane
  • Double Girder Electric Overhead Crane Bridge Overhead Crane
Double Girder Electric Overhead Crane Bridge Overhead Crane
Product Details:
Place of Origin: CHINA
Brand Name: SANTO
Certification: ISO, CE
Model Number: QD, QDY, YZ, YZS, QL, QZ, QC
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD6000-40000/set
Packaging Details: Electrical and other parts packed by high quality plywood crate, steel beams packed by plastic films or plastic woven cloth
Delivery Time: 35-45 working days
Payment Terms: L/C, T/T
Supply Ability: 6000set/year
Contact Now
Detailed Product Description
Product Name: High Quality 10ton Electric Trolley Double Girder Overhead Crane With Remote Control Span: 7-35m
Max. Lifting Height: 6m~30m Max. Lifting Load: 100t
Control Method: Wireless Remote Control,Ground Control,pendant Control Application: Workshop,Warehouse,plants,factory,warehouse And So On
Rated Loading Capacity: 1000kn Main Electrical Parts: Chint, Or As Requirments Siemens, Schneider
High Light:

Double Girder Electric Overhead Crane


35m Span Electric Overhead Crane


CE Electric Bridge Overhead Crane

High Quality Safety Equipment Crane Double Girder Electric Overhead Crane Bridge Overhead Crane For Sell




Overhead Cranes can also be referred to as Bridge Cranes.

Using pre-engineered and bespoke components based on modular designs, we are able to deliver a large range of highly reliable cranes with capacities from 1 ton up to 550 ton SWL with single girder, double girder or underhung structures.

Our standard crane range uses our super efficient chain hoist, highly advanced wire rope hoist or built-up open winch hoist with competitive prices and very quick delivery times.

Santocranes' hoists and cranes have developed a strong reputation for reliability and endurance with an unparalleled record in a vast range of applications and environments worldwide.


Single Girder vs. Double Girder Top Running Cranes

Part of the application analysis for a crane system is to determine when to use a single girder crane vs. a double girder crane. In most cases, a single girder crane is less expensive than a double girder crane; however, the cost is not the only deciding factor as both have their merits and shortcomings for particular applications.

The basic construction of an industrial overhead bridge crane consists of, and trucks with wheels running along the length of the runway system and the bridge crane girder fixed mounted to the end trucks with the hoist trolley suspending the hoist and traversing across the bridge.


The difference between a single and double girder top running crane is:

· A single girder crane has only one bridge beam, and the hoist trolley operates or travels on the lower flange of the bridge girder.
· A double girder crane will have two bridge beams, and the hoist trolley travels on rails, usually attached to the tops of the crane girder.

Heavy Duty QD 5-50/10T Hanger/Hook Double Girder/ Beam Overhead/Bridge Crane Best Material Lifting Equipments

1. Compact Gear Motor 2. Limit Switch
  • Smooth traveling and lifting work,
  • Low Dead Weight
  • Low Noise
  • German Quality, Safety and Durable
  • Safe Limit Switch for Lifting and Traveling
  • Incase of load crash the top of lift mechanism
  • Incase of trolley or Crane crash to the end of track.


3. Small and high strength Wheel 4. Aviation Revos
  • Small euro-type wheel help lowen the whole dead weight of the overhead crane
  • Advanced Wheel shape design lower the noise and make the traveling more smoothly
  • With this Aviational Revos, the Electrical box has a higher protect class, Safety and Reliable


5. Hook
  • DIN standard hook with block
  • High strength and with cover, Beautiful and pratical

Safety Device:


1. Overload protection
2. Main lifting motor with thermal protection
3. Hooks with latch
4. Rubber buffers
5. Protective earthing
6. Crane switch and travel end switch
7. Emergency switch can stop all movement when any dangerous happened
8. Sub-assemblies characteristic are tested before assembly
9. All cranes must be pre-assembled and tested before leaving factory and offer the certification of test.




Serving many types of industries has given Santo Crane a broad list of experiences.
  • Manufacturing
  • Power Plant
  • Wind Energy
  • Foundries
  • Food and beverage
  • Plastic Injection Molding
  • Die Casting
  • Hydro power
  • Packaging/Printing
  • Steel mill
  • Paper
  • Chemical
  • Pharmaceutical
  • Rubber
  • Glass
  • Agriculture
  • Automotive
  • Water Treatment
  • Aerospace
  • Concrete/Cement
  • Military/Government
  • Machine tool
  • Mining
  • Petro Chemical
  • Steel distribution
  • Aluminum extrusion
  • Transportation and Shipping
  • Galvanizing

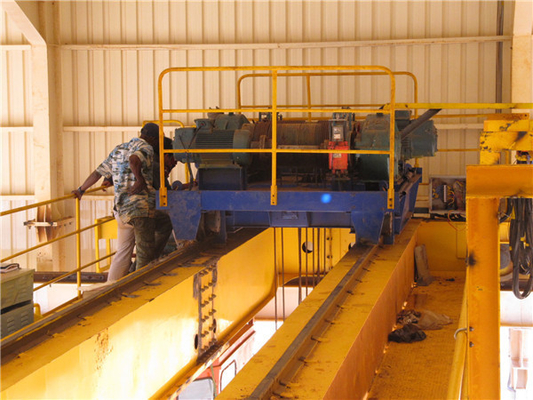

Crane Detail:


Double Girder Electric Overhead Crane Bridge Overhead Crane 1


Technical Specification:


Lifting Capacity t 5 10 16/3.2 20/5 32/5 50/10
Working Duty ISO A3-A8
Span m 7-35, customized
Lifting Height Main hook m 10 11 10 11 10 11 10 11 10 11 10 12
Aux. hook 10.275,11.275 10.446,11.446 10.73 11.73 10.918 12.918
Speed Lifting Main m/min 11.3 8.5 7.9 7.2 7.5 5.9
Aux. 14.6 15.4 15.4 10.4
Trolley traveling 37.3 35.6 36.6 37 36
Crane traveling 37.3 39.7 40.1 39.7 39.7 37.3 39.7 39.4 38.5
Recommended Tail   43kg/m 43kg/m or QU70
Power Supply   3-Phase 380V 50HZ, or as clients' requirement


Company information:


Henan Santo Crane Co., Ltd. is well-known for professional manufacturer and service-supplier of new high-tech gantry crane, overhead crane, electric hoist, portal crane, steel workshop. Our products are widely used in energy, metallurgy, transportation, heavy machinery, Nuclear power, hydropower, aviation and military projects a series of environment-friendly machinery. All of the products can be customized as your demand.

The leading products of Santo widely used in Machinery, Metallurgy, Electric Power, Railway, Aerospace , Port, Petroleum, Petrochemical, etc, our products are serving the national key projects such as: the South-to-North Water Transfer Project, the West-East National Gas Transmission, the Three Gorges Hydropower Station, Jiuquan Satellite Lunching Center, Qinshan Nuclear Power Station, Hangzhou Bay Bridge, Beijing Olympic Games and so on, accelerate successfully the launch of Spacecraft Shenzhou-10 and Chang’e-3,our products have been exported to more than 69 countries like America, Japan, Russia, Korea, etc. In 2013 the annual sales revenue reached 6.669 billion, and the Overhead Traveling Crane and the Gantry Crane continue to hold the first position around the whole country.


Double Girder Electric Overhead Crane Bridge Overhead Crane 2

Double Girder Electric Overhead Crane Bridge Overhead Crane 3

Crane Detail:

Double Girder Electric Overhead Crane Bridge Overhead Crane 4


Double Girder Electric Overhead Crane Bridge Overhead Crane 5


Looking forward to receiving your inquiry with the below detailed information:

Double Girder Electric Overhead Crane Bridge Overhead Crane 6

Load Capacity, ton: (_______)
Span, S, m: (_______)
Lift Height, H, m: (_______)
Voltage: (_______)
Duty Class: (_______)
? Hours per day: (_______)
Control way: (_______)
Lift Speed: (_______)
Cross & Long travel speed: (_______)
Rail supply needed (_______)
Power supply system needed (_______)
Your nearest port: (_______)
{Tips: 5 ton, 10 ton, 16 ton, 20 ton, 30 ton, 40 ton, 50 ton up to 550 ton}
{Tips: 6m ~40m}
{Tips: 380V, 50Hz, AC, 3-phase or please note}
{Tips: A5, A3, If you don't know, please fill the follow}
{Tips: Remote control, cabin control or pendent control }
{Tips: Single speed, double speed, or stepless speed}
{Tips: Single speed or stepless speed}
{Tips: If yes, please note the Long travel length}
{Tips: If yes, please note the Long travel length}
{Tips: We quote CIF price need the port. FOB price please note FOB}

If your workshop roof is very low, Its better to send us a drawing, a sketch or show us datas and then our Engineer can work out a full suitable solution just for yours.
