| Place of Origin: | CHINA |
| Brand Name: | SANTO |
| Certification: | ISO, CE |
| Model Number: | QD, QDY, YZ, YZS, QL, QZ, QC |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Electrical and other parts packed by high quality plywood crate, steel beams packed by plastic films or plastic woven cloth |
| Delivery Time: | 35-45 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 6000set/year |
| Name: | Double Girder Bridge Crane | Type: | Heavy Duty Double Girder Overhead Crane, EOT Crane |
|---|---|---|---|
| Span: | 7-35m | Feature: | Electric Overhead Travelling Bridge Crane |
| Max. Lifting Height: | 6m~30m | Max. Lifting Load: | 800t |
| Rated Loading Capacity: | 1-800t | Lifting Speed: | As Requirement |
| Lifting Mechanism: | Open Winch Trolley | Main Electrical Parts: | Chint, Or As Requirments Siemens, Schneider |
| Control Method: | Wireless Remote Control,Ground Control,pendant Control | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Field Installation,commissioning And Training,Online Support,Field Maintenance And Repair Service |
| Application: | Workshop,Warehouse,plants,factory,warehouse And So On | Color: | As Requirments |
| High Light: | Span 15M Double Girder Overhead Crane,5T Double Girder Overhead Crane,5t overhead crane For Warehouses |
||

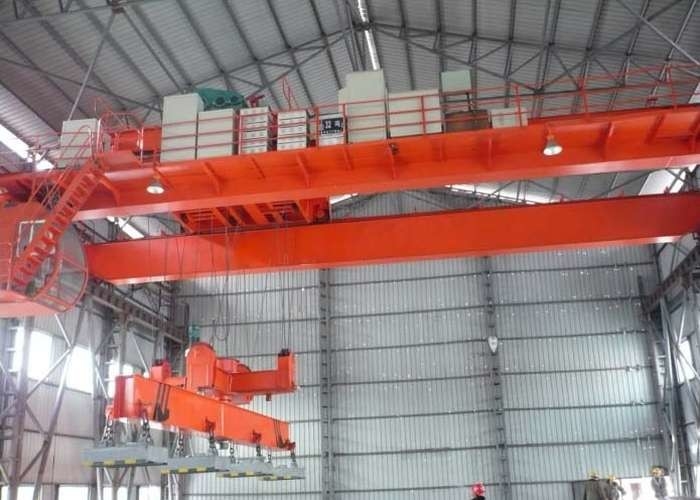

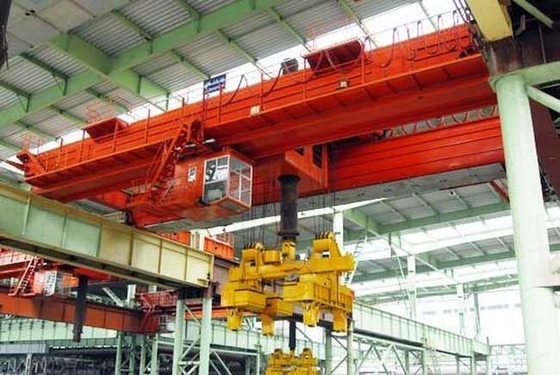

Electrical 5 Ton Span 15M Double Girder Overhead Crane For Warehouses
Product Description:
The double-girder overhead crane is composed of straight rail, crane main beam, hoisting trolley, power transmission system and electrical control system, and is especially suitable for material transportation in the plane range with large suspension and large lifting capacity.
The double-girder bridge crane has strong bearing capacity, large span, good overall stability and many varieties, but its own quality is larger than that of the single-girder gantry crane with the same lifting capacity, and the cost is also higher. According to the structure of the main beam, it can be divided into two forms: box beam and truss. Generally, a box-shaped structure is used.
Design advantage:
1. The double-girder bridge crane is the first in the design of honeycomb girder, which has the characteristics of light weight, heavy load and strong wind resistance.
2. The unique steel pin connection is not only firm and reliable, but also has a short assembly time.
3. The outriggers of the flexible tie rods can be disassembled into a single piece for site steering, which is convenient for transportation.
4. The smallest installed capacity can solve the difficulty of electricity consumption in the on-site construction.
Specification:
|
QSWL Gn rated lifting capacity |
t |
32/10 (we can supply up to 550 ton) |
|||||||||
|
Opertional method |
m/min |
Remote or Pendant control/Cabin Control |
|||||||||
|
Speed |
Main.hook lifting |
3(0.3/3) |
|||||||||
|
Aux.hook lifting |
7(7/0.7) |
||||||||||
|
Cross travelling |
20 |
||||||||||
|
Long travelling |
Remote or Pendant control |
20/30 |
|||||||||
|
Cabin Control |
30/40 |
||||||||||
|
Motor |
Main.hook lifting |
kw |
ZDX62-6/18.5,(ZDS2.2/18.5) |
||||||||
|
Aux.hook lifting |
ZD151-4/13(ZDS1-1.5/13) |
||||||||||
|
Cross travelling |
ZDY123-4/2.2x2 |
||||||||||
|
Long travelling |
Remote or Pendant control |
ZDY123-4/2.2x2 |
ZDY131-4/3x2 |
||||||||
|
Cabin Control |
ZDR112L2-4/3.0x2 |
ZDR125-4/4.6x2 |
|||||||||
|
Electric Hoist |
|
WH164;CD1(MD1) |
|||||||||
|
Lifting Height |
m |
9;12;16;24 |
|||||||||
|
Duty Class |
|
A3--A5 |
|||||||||
|
Power source |
|
3-phase A.C. 50Hz;380V |
|||||||||
|
Track recommended |
|
43KG/M |
|||||||||
|
Span |
m |
7.5 |
10.5 |
13.5 |
16.5 |
19.5 |
22.5 |
25.5 |
|||
|
Max.wheel presure |
KN |
167 |
184 |
196 |
206 |
215 |
224 |
233 |
|||
|
Crane weight |
Remote or Pendant control |
kg |
12530 |
14660 |
16360 |
18870 |
21650 |
24260 |
27060 |
||
|
Cabin Control |
kg |
13430 |
15560 |
17260 |
19770 |
22550 |
25160 |
27960 |
|||
|
Basic dimensions |
B |
mm |
5070--5960 |
5572--6222 |
|||||||
|
W |
mm |
3600~4500 |
|||||||||
|
Wc |
mm |
2200-2900 |
|||||||||
|
K |
mm |
1600~2500 |
|||||||||
|
H |
mm |
1900 |
|||||||||
|
H1 |
mm |
765 |
|||||||||
|
H2 |
mm |
170 |
270 |
370 |
470 |
570 |
670 |
770 |
|||
|
H3 |
mm |
2395 |
2495 |
2595 |
2695 |
2795 |
2895 |
2995 |
|||
|
H4 |
mm |
-700 |
|||||||||
|
b |
mm |
230 |
|||||||||
|
S1 |
mm |
1100 |
|||||||||
|
S2 |
mm |
1600 |
|||||||||
Application:
1. Bridge-type double-girder cranes are widely used in factories, warehouses, stockyards and other occasions to lift goods. It is forbidden to use in flammable, explosive and corrosive medium environments. There are two types of operation on the ground and in the control room. There are two types of operation room, open type and closed type, which can be divided into two types of left or right installation according to the actual situation.
2. Bridge-type double-girder cranes are widely used in workshops, warehouses, stockyards, etc. It has the advantages of compact size, low building headroom, light weight and small wheel pressure.
Sketch & Parameters:
Installation:
Customer Visiting:
Free inquiry:
In order to make a very quick offer and saving your waiting time, It's better to fill the information below. Copy and send us the information together with the enquiry.
|
{Tips: 5 ton, 10 ton, 16 ton, 20 ton, 30 ton, 40 ton, 50 ton up to 550 ton} |
||||||||||||||||||||||||
|
{Tips: 6m ~40m} |
|||||||||||||||||||||||||
|
|
|||||||||||||||||||||||||
|
{Tips: 380V, 50Hz, AC, 3-phase or please note} |
|||||||||||||||||||||||||
|
{Tips: A5, A3, If you don't know, please fill the follow} |
|||||||||||||||||||||||||
|
|
|||||||||||||||||||||||||
|
{Tips: Remote control, cabin control or pendent control } |
|||||||||||||||||||||||||
|
{Tips: Single speed, double speed, or stepless speed} |
|||||||||||||||||||||||||
|
{Tips: Single speed or stepless speed} |
|||||||||||||||||||||||||
|
{Tips: If yes, please note the Long travel length} |
|||||||||||||||||||||||||
|
{Tips: If yes, please note the Long travel length} |
|||||||||||||||||||||||||
|
{Tips: We quote CIF price need the port. FOB price please note FOB} |
If your workshop roof is very low, Its better to send us a drawing, a sketch or show us datas and then our Engineer can work out a full suitable solution just for yours.
Looking forward your kindly inquiry and hope to help your strong business in near future!
