| Place of Origin: | CHINA |
| Brand Name: | SANTO |
| Certification: | ISO, CE |
| Model Number: | LH |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | USD5000-30000/set |
| Packaging Details: | Electrical and other parts packed by high quality plywood crate, steel beams packed by plastic films or plastic woven cloth |
| Delivery Time: | 35-40 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5000set/year |
| Keyworda: | EOT CRANE | Condition: | New |
|---|---|---|---|
| Feature: | Electric Overhead Travelling Bridge Crane | Main Electrical Parts: | Chint, Or As Requirments Siemens, Schneider |
| Span: | 7-35m | Rated Loading Capacity: | 1-50t |
| Lifting Mechanism: | Electric Hoist With Crabs Trolley | Max. Lifting Load: | 50t |
| Max. Lifting Height: | 6m~30m | Lifting Speed: | Standard Or As Requirement |
| Control Method: | Wireless Remote Control,Ground Control,pendant Control | Power Supply: | 220V~480V 50/60Hz Or Be Customized |
| Application: | Workshop,Warehouse,plants,factory And So On | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Field Installation,commissioning And Training,Online Support,Field Maintenance And Repair Service |
| High Light: | Remote Control Double Beam Eot Crane,double beam eot crane Span 7m,35m Electric Workshop Crane |
||
50T Remote Control Double Girder Crane Span 7 - 35m For Workshop
Product introduction:

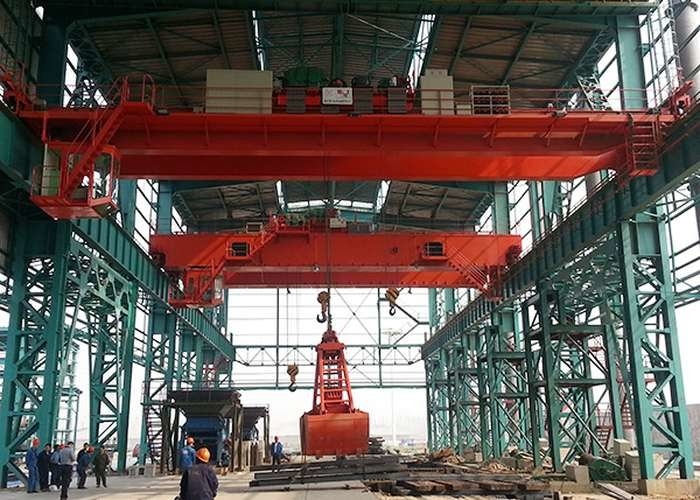

The double-girder overhead crane is composed of straight rail, crane main beam, lifting trolley, power transmission system and electrical control system, and is especially suitable for material conveying in the plane range with large suspension and large lifting capacity.
The double-girder bridge crane has strong bearing capacity, large span, good overall stability and many varieties, but its own quality is larger than that of the single-girder gantry crane with the same lifting capacity, and the cost is also higher. According to the structure of the main beam, it can be divided into two forms: box beam and truss. Generally, a box-shaped structure is used.
Optional Features:
Weight overload protection device
Emergency stop system
Over current Protection, Short-circuit Protection
Phase sequence protection
Zero position protection, No-Voltage protection, convenient and simple operation.
Protective earth conductor is fitted as standard
Voltage lower protection system
Current overload protection system
High protection level IP44,IP54,IP55
Long and cross travel limit switch
Anti-falling protection of trolley and crane prevents from accidental falling
High quality long time bearing polyurethane materials buffer fixed at the end of trolley travelling and crane travelling to prevent over traveling
Safety hook latch used for avoiding the lifted material out off from the hook
Audible and visual alarm device to inform the person stay near by the travelling crane
Rain Cover for lifting mechanism of outdoor cranes, electric cabinet and driving mechanism
Specification:
| Load capacity(t) | 3 | 5 | 10 | 16 | 20 | 20/5 | 32/5 | ||
| Span(m) | 10.5~31.5 | ||||||||
| Max Lifting height(m) | Main Hook | 6~30 | |||||||
| Auxiliary Hook | 6~30 | ||||||||
| Working class | A3 A4 | ||||||||
| Speed(m/min) | Main Hoisting | 8,8/0.8 | 8,8/0.8 | 7,7/0.7 | 3.5,3.5/0.35 | 3.5,3.5/0.35 | 3.5,3.5/0.35 | 2.4,2.4/0.24 | |
| Auxiliary Lifting | 8,8/0.8 | 8,8/0.8 | |||||||
| Trolley Cross Traveling | 20,2~20 | ||||||||
| Crane Long Traveling | 30,3~30 | ||||||||
| Motor Type | Squirrel cage motor | ||||||||
| Motor (Kw) | Main Hoisting | 4.5 | 7.5 | 13 | 13 | 18.5 | 18.5 | 18.5 | |
| Auxiliary Lifting | 7.5 | 7.5 | |||||||
| Trolley Cross Traveling | 2*0.4, 2*0.8, 2*1.5 | ||||||||
| Crane Long Traveling | 2*0.8, 2*1.5, 2*2.2 | ||||||||
| Control mode | Pendent control, Remote control, Cabin control | ||||||||
| Recommended Rail model | 24kgs/m | 30kgs/m | 38kgs/m | 43kg/m or P50 | |||||
| Power source | 3Ph A.C 50Hz 380V, or as requirements | ||||||||
Application:
1. Bridge-type double-girder cranes are widely used in factories, warehouses, stockyards and other occasions to lift goods. It is forbidden to use in flammable, explosive and corrosive medium environments. There are two types of operation on the ground and in the control room. There are two types of operation room, open type and closed type, which can be divided into two types of left or right installation according to the actual situation.
2. Bridge-type double-girder cranes are widely used in workshops, warehouses, stockyards, etc. It has the advantages of compact size, low building headroom, light weight and small wheel pressure.
Details:
Delivery:
Electrical and other parts packed by high quality plywood crate, steel beams packed by plastic films or plastic woven cloth.
