IP54 IP44 EOT Double Girder Overhead Crane 50 Ton Bridge Crane Easy Operated

IP54 IP44 EOT Double Girder Overhead Crane 50 Ton Bridge Crane Easy Operated

  • IP54 IP44 EOT Double Girder Overhead Crane 50 Ton Bridge Crane Easy Operated
  • IP54 IP44 EOT Double Girder Overhead Crane 50 Ton Bridge Crane Easy Operated
IP54 IP44 EOT Double Girder Overhead Crane 50 Ton Bridge Crane Easy Operated
Product Details:
Place of Origin: CHINA
Brand Name: SANTO
Certification: ISO, CE
Model Number: QD, QDY, YZ, YZS, QL, QZ, QC
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Electrical and other parts packed by high quality plywood crate, steel beams packed by plastic films or plastic woven cloth
Delivery Time: 35-45 working days
Payment Terms: L/C, T/T
Supply Ability: 6000set/year
Contact Now
Detailed Product Description
Main Electrical Parts: Chint, Or As Requirments Siemens, Schneider Condition: New
Warranty: 12 Months Feature: Electric Overhead Travelling Bridge Crane
Span: 7-35m Max. Lifting Height: 6m~30m
Max. Lifting Load: 800t Product Name: Rail Mounted Gantry Crane
Application: Workshop,Warehouse,plants,factory,warehouse And So On Rated Loading Capacity: 1-800t
High Light:

IP44 EOT Double Girder Overhead Crane

,

50 Ton Bridge Crane Easy Operated

,

IP54 overhead crane 50 ton

50T Top Running Eot Crane Double Girder Easy Operated For Manufacturing



Information:



The double-girder overhead crane is composed of straight rail, crane main beam, lifting trolley, power transmission system and electrical control system, and is especially suitable for material transportation in the plane range with large suspension and large lifting capacity.
The double-girder bridge crane has strong bearing capacity, large span, good overall stability and many varieties, but its own quality is larger than that of the single-girder gantry crane with the same lifting capacity, and the cost is also higher. According to the structure of the main beam, it can be divided into two forms: box beam and truss. Generally, a box-shaped structure is used.



Mechanism Parts:



  • Double girder, welding box beam, camber meet national standard;
  • Adopt high quality carbon steel, Q235B or Q345B; (similar as Fe37 or Fe52);
  • Main welding submerged are welded automaticly, nondestructive flaw detection
  • The trolley is consisted with motor,reducer, brake, coupling, the wheel, drum
  • No asbestos brake pad or brake block, insert the card installed,safe and reliable .
  • The speed reducer has hard-toothed surface, compact structure, durable
  • End girder is matched with rail buffer and rail clearance device.
  • Crane protection grade is IP54 or IP44, F grade insulation
  • Brake effectively, and long service life



Technical Specification:



Lifting Capacity

t

5

10

16/3.2

20/5

32/5

50/10

Working Duty

ISO

A3-A8

Span

m

7-35, customized

Lifting Height

Main hook

m

10

11

10

11

10

11

10

11

10

11

10

12

Aux. hook

10.275,11.275

10.446,11.446

10.73

11.73

10.918

12.918

Speed

Lifting

Main

m/min

11.3

8.5

7.9

7.2

7.5

5.9

Aux.

14.6

15.4

15.4

10.4

Trolley traveling

37.3

35.6

36.6

37

36

Crane traveling

37.3

39.7

40.1

39.7

39.7

37.3

39.7

39.4

38.5

Recommended Tail



43kg/m

43kg/m or QU70

Power Supply



3-Phase 380V 50HZ, or as clients' requirement



IP54 IP44 EOT Double Girder Overhead Crane 50 Ton Bridge Crane Easy Operated 0



Application:



1. Bridge-type double-girder cranes are widely used in factories, warehouses, stockyards and other occasions to lift goods. It is forbidden to use in flammable, explosive and corrosive medium environments. There are two types of operation on the ground and in the control room. There are two types of operation room, open type and closed type, which can be divided into two types of left or right installation according to the actual situation.
2. Bridge-type double-girder cranes are widely used in workshops, warehouses, stockyards, etc. It has the advantages of compact size, low building headroom, light weight and small wheel pressure.



Crane Detail:

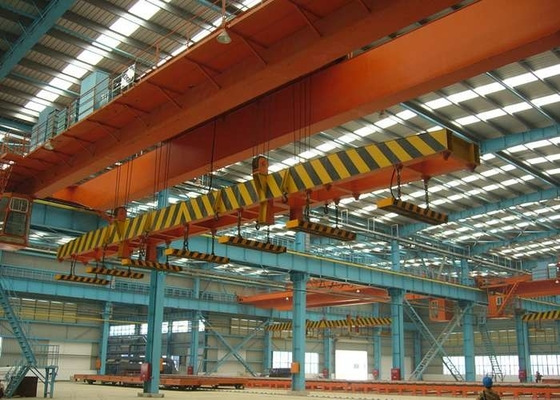

IP54 IP44 EOT Double Girder Overhead Crane 50 Ton Bridge Crane Easy Operated 1

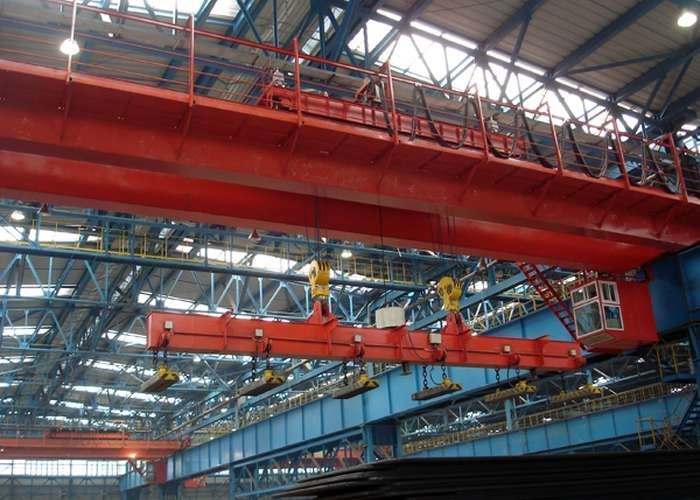

IP54 IP44 EOT Double Girder Overhead Crane 50 Ton Bridge Crane Easy Operated 2
