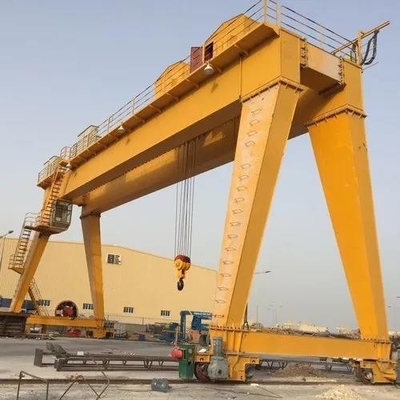

Outdoor MG Model Construction Gantry Crane 32ton In Stone Factory

Outdoor MG Model Construction Gantry Crane 32ton In Stone Factory

  • Outdoor MG Model Construction Gantry Crane 32ton In Stone Factory
  • Outdoor MG Model Construction Gantry Crane 32ton In Stone Factory
Outdoor MG Model Construction Gantry Crane 32ton In Stone Factory
Product Details:
Place of Origin: CHINA
Brand Name: SANTO
Certification: ISO, CE
Model Number: MH, BMH, MHL, MDG.MG
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD5000-50000/set
Packaging Details: Electrical and other parts packed by high quality plywood crate, steel beams packed by plastic films or plastic woven cloth
Delivery Time: 30-45 working days
Payment Terms: L/C, T/T
Supply Ability: 3000set/year
Contact Now
Detailed Product Description
Condition: New Warranty: 12 Months
Span: 7.5-35m After-sales Service Provided: Engineers Available To Service Machinery Overseas,Field Installation,commissioning And Training,Online Support,Field Maintenance And Repair Service
Feature: Gantry Crane Max. Lifting Height: 6m~30m
Rated Lifting Moment: Different Max. Lifting Load: 5T-50T
Product Name: Ground Travelling Gantry Crane Application: Workshop,Warehouse,plants,factory,warehouse And So On
Control Method: Wireless Remote Control,Ground Control,pendant Control Rated Loading Capacity: 1-120t
Color: Yellow, Red, Or As Requirments Power Source: 3 Phase 380V 50hz Or Be Customized
Power Supply: 220V~480V 50/60Hz Crane Feature: Easy Operated Girder Bridge Crane,Single Girder Overhead Crane,EOT Crane,7.5tons Overhead Crane
Type: Hoist Single Girder Bridge Crane,Single Girder Overhead Crane,10 Ton Overhead Crane Lifting Mechanism: Electric Hoist
Lifting Speed: 0~8m/min Main Electrical Parts: Chint, Or As Requirments Siemens, Schneider
High Light:

MG Model Construction Gantry Crane

,

32ton Construction Gantry Crane

,

30m Construction Crane Equipment

32ton MG Model Construction Gantry Crane In Stone Factory Outdoor Using




General Description



Bridge gantry cranes are gantry cranes specially designed for bridge construction. The lattice girder gantry crane is mainly composed of main girder, outriggers, bridge crowns, etc. The components are connected by pins and high-strength bolts, which are convenient for disassembly, equipment and transportation; compared with ordinary gantry cranes, the installation is fast, convenient and economical. practical.



It is suitable for frequently flowing road and bridge construction units. Mainly suitable for moving concrete bridges, precast slabs, precast slabs from one place to another. This gantry crane is divided into two types: one is track type and the other is tire type.



Control method:



Pendent line with press button or remote control or cabin or both



Design and construction rules:



All the standards which is required for the crane is the Chinese standard



Standard Technical Parameter:



Capacity t 10 16/3.2 20/5 30/10 36/10 50/10
Span m 18,22,26,30,35
Lifting height Main m 10-12 10 10-12 10-12 10-12 10-12
Aux m   11.7-12.7 10.6-12.6 10.7-12.7 11-13 11.28-13.28
Working duty   A5-A7
Speed Main hoisting m/min 18.4 13 9.2 10.4 7.7 6
Aux.hoisting     18.4 18.4 13.2 8
Trolley traveling speed 43.8 41.9 42.3 42 39.1 38.13
Crane traveling speed 48.4-54.6 48-53 40.1 51.2 40 43.8
Installed power KW 58-66 85-93 86-94 131-138 132-140 197-213
Max. weheel load KN 299-423 198-265 218-299 292-350 334-427 270-456
Recommend rail   QU80 QU70 QU70 QU80 QU80 QU80/QU70
Power supply   380V-50HZ,3Phase A.C

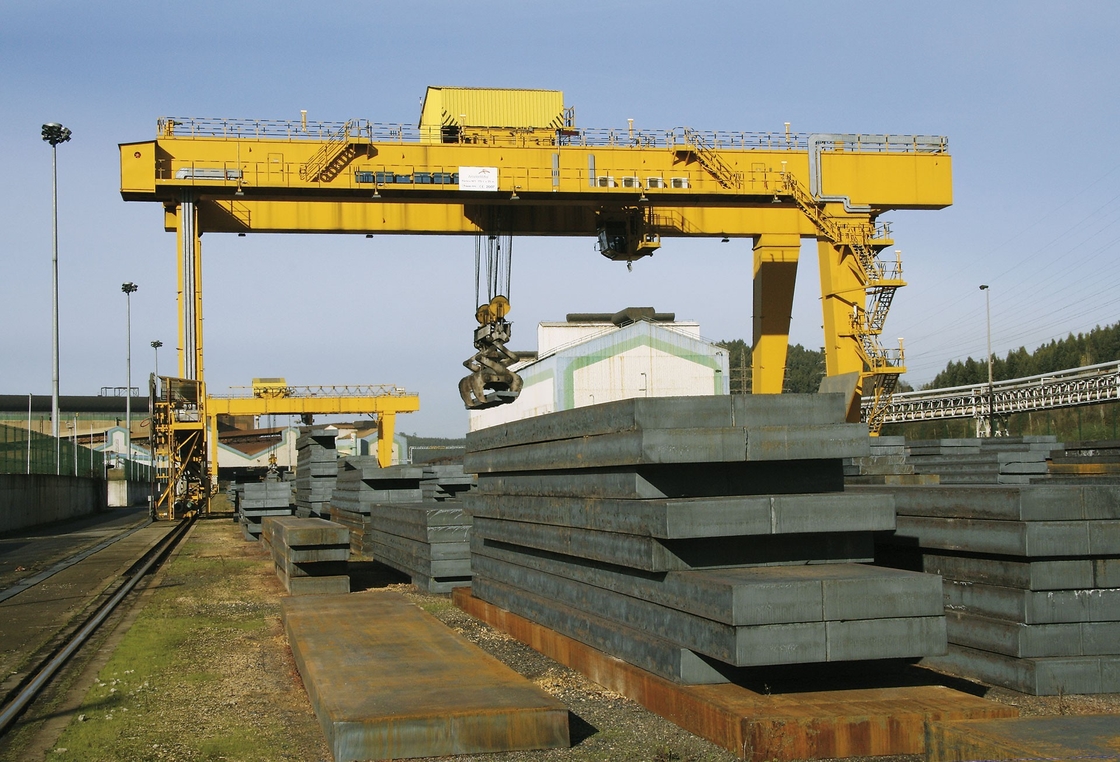

Outdoor MG Model Construction Gantry Crane 32ton In Stone Factory 0





There are two type structure of the main girder and support legs as optional based on customers' repuirements:



Truss type

Box type

Advantage:
a. Small windward side and resistance
b. Light dead weight,low cost
c. Nice appearance

Advantage:
a. Compact structure,good rigidity,strong lifting capacity;indoor use available
b. Characteristic of slim body,save shipping cost.

Specification:
1. Capacity: 5t~32t
2. Span length:10~35m
3. Lifting height: up to 12m
4. Hoist: CD type or MD type
5. Control model: padent control,remote control or
cabin control
6. Single girder gantry crane including general purpose gantry crane and L type gantry crane with truss type.

Specification:
1. Capacity: 5t~32t
2. Span length:10~35m
3. Lifting height: up to 12m
4. Hoist:CD type or MD type
5. Control model: padent control,remote control or cabin control
6. Working temperature:-20°C to + 40°C
7. Single girder gantry crane including general purpose gantry crane and L type gantry crane with boxed type.



Outdoor MG Model Construction Gantry Crane 32ton In Stone Factory 1

Outdoor MG Model Construction Gantry Crane 32ton In Stone Factory 2



Outdoor MG Model Construction Gantry Crane 32ton In Stone Factory 3
