| Place of Origin: | CHINA |
| Brand Name: | SANTO |
| Certification: | ISO, CE |
| Model Number: | MH, BMH, MHL, MDG |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | USD2000-10000/set |
| Packaging Details: | Electrical and other parts packed by high quality plywood crate, steel beams packed by plastic films or plastic woven cloth |
| Delivery Time: | 15-30 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5000set/year |
| Condition: | New | Warranty: | 12 Months |
|---|---|---|---|
| Span: | 7.5-35m | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Field Installation,commissioning And Training,Online Support,Field Maintenance And Repair Service |
| Feature: | Gantry Crane | Max. Lifting Height: | 6m~30m |
| Rated Lifting Moment: | Different | Max. Lifting Load: | 1-20t, Max Up To 32t |
| Product Name: | Ground Travelling Gantry Crane | Application: | Workshop,Warehouse,plants,factory,warehouse And So On |
| Control Method: | Wireless Remote Control,Ground Control,pendant Control | Rated Loading Capacity: | 1-20t |
| Color: | Yellow, Red, Or As Requirments | Power Source: | 3 Phase 380V 50hz Or Be Customized |
| Power Supply: | 220V~480V 50/60Hz | Crane Feature: | Easy Operated Girder Bridge Crane,Single Girder Overhead Crane,EOT Crane,7.5tons Overhead Crane |
| Type: | Hoist Single Girder Bridge Crane,Single Girder Overhead Crane,10 Ton Overhead Crane | Lifting Mechanism: | Electric Hoist |
| Lifting Speed: | 0~8m/min | Main Electrical Parts: | Chint, Or As Requirments Siemens, Schneider |
| High Light: | GOST Bridge Gantry Crane 32T,CE ISO Bridge Gantry Crane 32T,32T Building Material Lifting Crane |
||

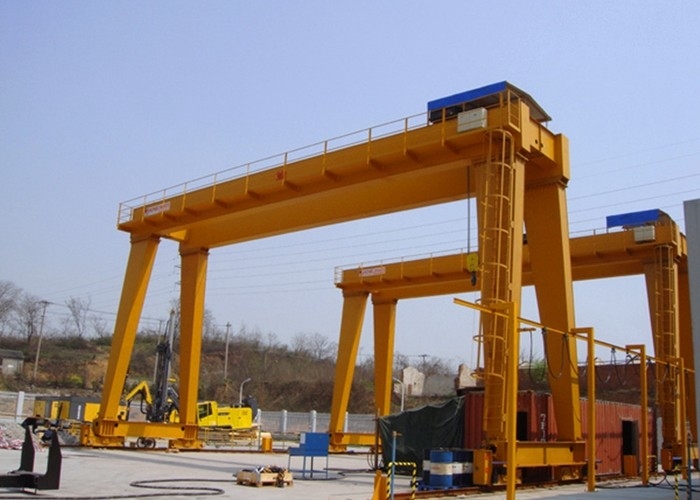

CE ISO GOST Certification Bridge Gantry Cranes For Bridge Construction
Description:

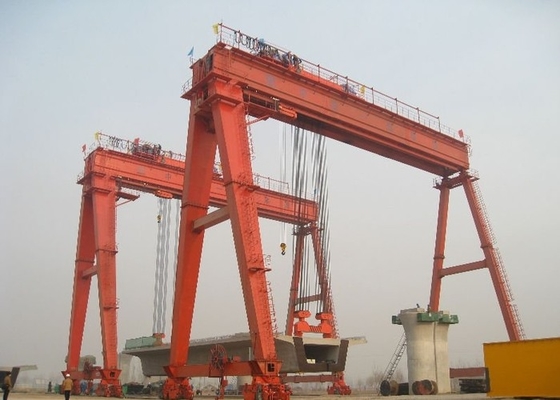

Bridge gantry cranes are gantry cranes specially designed for bridge construction. The lattice girder gantry crane is mainly composed of main girder, outriggers, bridge crowns, etc. The components are connected by pins and high-strength bolts, which are convenient for disassembly, equipment and transportation; compared with ordinary gantry cranes, the installation is fast, convenient and economical. practical.
As a type of gantry crane, it is a special crane designed for bridge construction. It is composed of main girder, outriggers, bridge crane, etc. All parts are connected by high-strength friction clamping bolts and hinge pins, which are easy to disassemble and transport. Compared with ordinary gantry cranes, it is convenient and quick to install, economical and practical. Commonly used in mobile road and bridge construction units.
Control method:
Pendent line with press button or remote control or cabin or both
Design and construction rules:
All the standards which is required for the crane is the Chinese standard
Specification:
| Capacity | t | 10 | 16/3.2 | 20/5 | 30/10 | 36/10 | 50/10 | |
| Span | m | 18,22,26,30,35 | ||||||
| Lifting height | Main | m | 10-12 | 10 | 10-12 | 10-12 | 10-12 | 10-12 |
| Aux | m | 11.7-12.7 | 10.6-12.6 | 10.7-12.7 | 11-13 | 11.28-13.28 | ||
| Working duty | A5-A7 | |||||||
| Speed | Main hoisting | m/min | 18.4 | 13 | 9.2 | 10.4 | 7.7 | 6 |
| Aux.hoisting | 18.4 | 18.4 | 13.2 | 8 | ||||
| Trolley traveling speed | 43.8 | 41.9 | 42.3 | 42 | 39.1 | 38.13 | ||
| Crane traveling speed | 48.4-54.6 | 48-53 | 40.1 | 51.2 | 40 | 43.8 | ||
| Installed power | KW | 58-66 | 85-93 | 86-94 | 131-138 | 132-140 | 197-213 | |
| Max. weheel load | KN | 299-423 | 198-265 | 218-299 | 292-350 | 334-427 | 270-456 | |
| Recommend rail | QU80 | QU70 | QU70 | QU80 | QU80 | QU80/QU70 | ||
| Power supply | 380V-50HZ,3Phase A.C | |||||||
Application:
