| Place of Origin: | CHINA |
| Brand Name: | SANTO |
| Certification: | ISO, CE |
| Model Number: | MH, BMH, MHL, MDG |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | USD2000-10000/set |
| Packaging Details: | Electrical and other parts packed by high quality plywood crate, steel beams packed by plastic films or plastic woven cloth |
| Delivery Time: | 15-30 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5000set/year |
| Condition: | New | Warranty: | 12 Months |
|---|---|---|---|
| Span: | 7.5-35m | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Field Installation,commissioning And Training,Online Support,Field Maintenance And Repair Service |
| Feature: | Gantry Crane | Max. Lifting Height: | 6m~30m |
| Rated Lifting Moment: | Different | Max. Lifting Load: | 1-20t, Max Up To 32t |
| Product Name: | Ground Travelling Gantry Crane | Application: | Workshop,Warehouse,plants,factory,warehouse And So On |
| Control Method: | Wireless Remote Control,Ground Control,pendant Control | Rated Loading Capacity: | 1-20t |
| Color: | Yellow, Red, Or As Requirments | Power Source: | 3 Phase 380V 50hz Or Be Customized |
| Power Supply: | 220V~480V 50/60Hz | Crane Feature: | Easy Operated Girder Bridge Crane,Single Girder Overhead Crane,EOT Crane,7.5tons Overhead Crane |
| Type: | Hoist Single Girder Bridge Crane,Single Girder Overhead Crane,10 Ton Overhead Crane | Lifting Mechanism: | Electric Hoist |
| Lifting Speed: | 0~8m/min | Main Electrical Parts: | Chint, Or As Requirments Siemens, Schneider |
| High Light: | Truss Type Construction Crane Equipment,50T Construction Crane Equipment,Cabin Control gantry crane construction |
||
50t Remote / Cabin Control Truss Structure Type Construction Crane Equipment
General Description

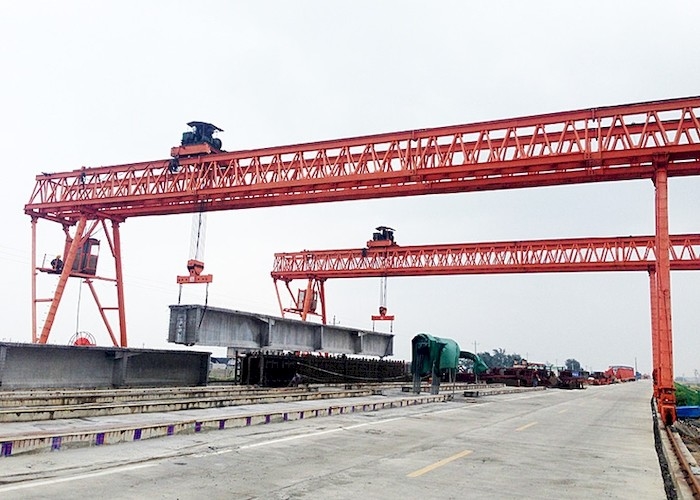

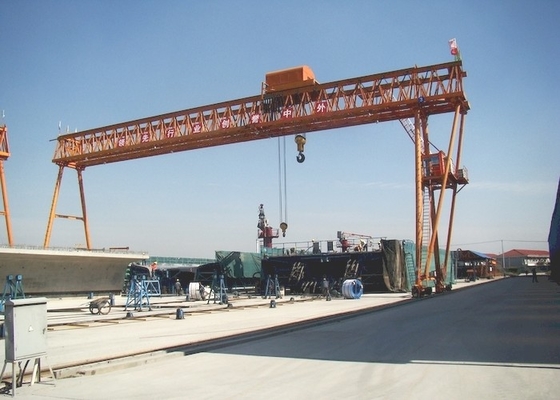

Bridge gantry cranes are gantry cranes specially designed for bridge construction. The lattice girder gantry crane is mainly composed of main girder, outriggers, bridge crowns, etc. The components are connected by pins and high-strength bolts, which are convenient for disassembly, equipment and transportation; compared with ordinary gantry cranes, the installation is fast, convenient and economical. practical.
It is suitable for frequently flowing road and bridge construction units. Mainly suitable for moving concrete bridges, precast slabs, precast slabs from one place to another. This gantry crane is divided into two types: one is track type and the other is tire type.
Control method:
Pendent line with press button or remote control or cabin or both
Design and construction rules:
All the standards which is required for the crane is the Chinese standard
Standard Technical Parameter:
| Capacity | t | 10 | 16/3.2 | 20/5 | 30/10 | 36/10 | 50/10 | |
| Span | m | 18,22,26,30,35 | ||||||
| Lifting height | Main | m | 10-12 | 10 | 10-12 | 10-12 | 10-12 | 10-12 |
| Aux | m | 11.7-12.7 | 10.6-12.6 | 10.7-12.7 | 11-13 | 11.28-13.28 | ||
| Working duty | A5-A7 | |||||||
| Speed | Main hoisting | m/min | 18.4 | 13 | 9.2 | 10.4 | 7.7 | 6 |
| Aux.hoisting | 18.4 | 18.4 | 13.2 | 8 | ||||
| Trolley traveling speed | 43.8 | 41.9 | 42.3 | 42 | 39.1 | 38.13 | ||
| Crane traveling speed | 48.4-54.6 | 48-53 | 40.1 | 51.2 | 40 | 43.8 | ||
| Installed power | KW | 58-66 | 85-93 | 86-94 | 131-138 | 132-140 | 197-213 | |
| Max. weheel load | KN | 299-423 | 198-265 | 218-299 | 292-350 | 334-427 | 270-456 | |
| Recommend rail | QU80 | QU70 | QU70 | QU80 | QU80 | QU80/QU70 | ||
| Power supply | 380V-50HZ,3Phase A.C | |||||||
Single Girder Gantry Crane Series:
There are two type structure of the main girder and support legs as optional based on customers' repuirements:
|
Truss type |
Box type |
||
|
Advantage: |
Advantage: |
||
|
Specification: |
Specification: |
Application:
