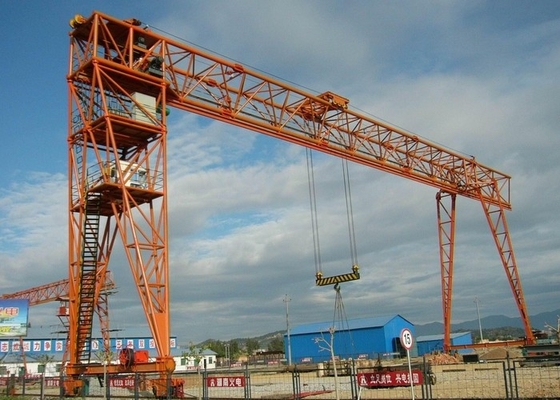

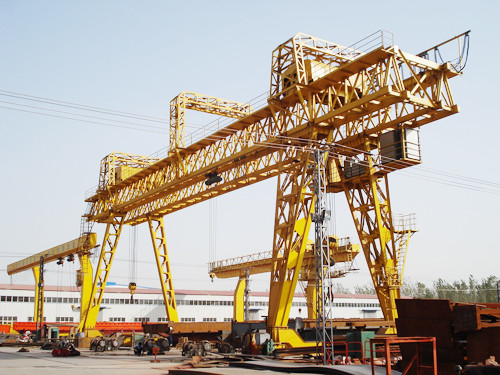

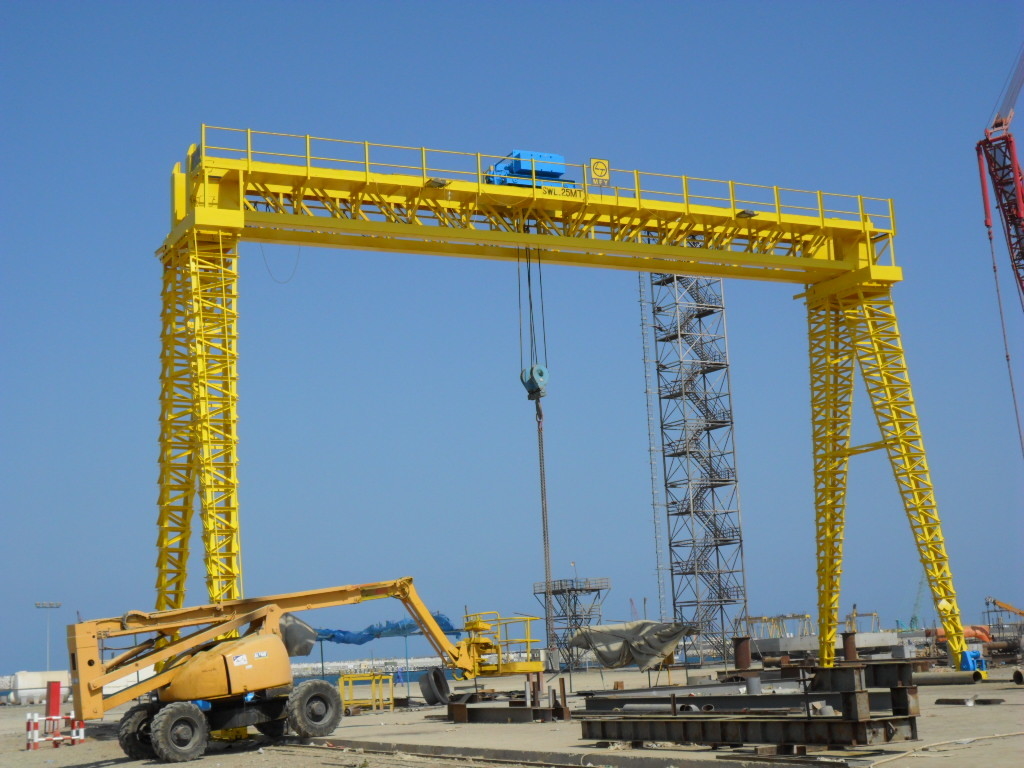

50T Truss Gantry Construction Crane In Storage Yard

50T Truss Gantry Construction Crane In Storage Yard

  • 50T Truss Gantry Construction Crane In Storage Yard
  • 50T Truss Gantry Construction Crane In Storage Yard
  • 50T Truss Gantry Construction Crane In Storage Yard
50T Truss Gantry Construction Crane In Storage Yard
Product Details:
Place of Origin: CHINA
Brand Name: SANTO
Certification: ISO, CE
Model Number: MH,MG,MDG,BMG
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: 5000USD-50000USD
Packaging Details: Electrical and other parts packed by high quality plywood crate, steel beams packed by plastic films or plastic woven cloth
Delivery Time: 45-55 working days
Payment Terms: L/C, T/T
Supply Ability: 2000set/year
Contact Now
Detailed Product Description
Keywords: Gantry Cranes Load Capacity: 20 T To 900 T
Span: 6 M - 50 M Max.Lifting Height: 18m
Structurte: Truss Structure Type Control Mode: Remote
Power Supply: Diesel Generating Set /380v-50hz,3Phase A.C Image Design: Classic Design (Ruby Red, Ruby Blue, White)
High Light:

50T Truss Gantry Construction Crane


Storage Yard Gantry Construction Crane


18m Truss Construction Crane Equipment

50T Truss Gantry Con​struction Crane Used In Storage Yard




Bridge gantry cranes are gantry cranes specially designed for bridge construction. The lattice girder gantry crane is mainly composed of main girder, outriggers, bridge crowns, etc. The components are connected by pins and high-strength bolts, which are convenient for disassembly, equipment and transportation; compared with ordinary gantry cranes, installation is fast, convenient and economical practical.


As a type of gantry crane, it is a special crane designed for bridge construction. It is composed of main girder, outriggers, bridge crane, etc. All parts are connected by high-strength friction clamping bolts and hinge pins, which are convenient for disassembly and transportation. Compared with ordinary gantry cranes, it is convenient and quick to install, economical and practical. Commonly used in mobile road and bridge construction units.




1. Load capacity: 20 t to 900 t

2. Span: 6 m - 50 m

3. Max.Lifting Height: 18m

4. Structurte: Box / truss structure type

6. Character: Single girder/Double griders

7. Power Supply : Diesel generating set /380v-50hz,3Phase A.C

8. Grade ability: 1%-2%

9. Control mode: Remote/Cabin control

10 Running mode:Straight/across/diagonal

11. Image Design: Classic design (Ruby red, ruby blue, white)


Capacity t 10 16/3.2 20/5 30/10 36/10 50/10
Span m 18,22,26,30,35
Lifting height Main m 10-12 10 10-12 10-12 10-12


Aux m   11.7-12.7 10.6-12.6 10.7-12.7 11-13 11.28-13.28
Working duty   A5-A7

Main hoisting

m/min 18.4 13 9.2 10.4 7.7


Aux.hoisting     18.4 18.4 13.2 8
Trolley traveling speed 43.8 41.9 42.3 42 39.1 38.13
Crane traveling speed 48.4-54.6 48-53 40.1 51.2 40 43.8
Installed power KW 58-66 85-93 86-94 131-138 132-140


Max. weheel load KN 299-423 198-265 218-299 292-350 334-427 270-456
Recommend rail   QU80 QU70 QU70 QU80 QU80 QU80/QU70
Power supply   380V-50HZ,3Phase A.C


50T Truss Gantry Construction Crane In Storage Yard 0




It is suitable for frequently flowing road and bridge construction units. Mainly suitable for moving concrete bridges, precast slabs, precast slabs from one place to another. This gantry crane is divided into two types: one is track type and the other is tire type.




Double girder rail mounted or rubber tyred gantry crane for lifting and moving precast concrete bridge girder


Safety and Reliable Mobile Construction Rail Mounted and Rubber Tyred Gantry Crane for Lifting Concrete Bridge Beam and Pipe


Packing & Delivery:


1. Delivery time : 90 Days after receiving the deposit.

2. Packaging :

1). Wooden case for electric parts,motor,accessories, color cloth for main structure.
2). All parts will be loaded into 20ft or 40ft ISO container
all parts will be loaded onto Bulk Cargo Ship after package if the length is beyond 12.0m length is
beyond 12.0m.

3. Transportation : generally 35 days to 60days to destination port.

4. Trade term : FOB, CFR and CIF are common trade terms, if you need more help, please ontact with Trade Consultant.

5. Load port : Qingdao/Shanghai/Tianjin port.
