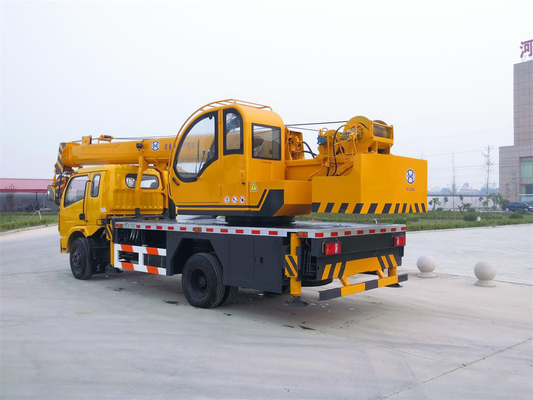

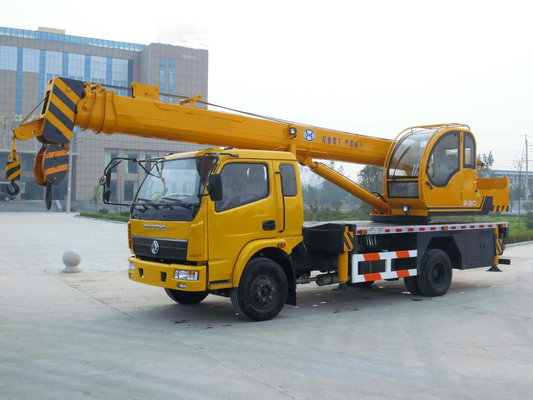

Mobile Cranes Telescoping Boom QY25K5D XM 25Ton Truck Crane

Mobile Cranes Telescoping Boom QY25K5D XM 25Ton Truck Crane

  • Mobile Cranes Telescoping Boom QY25K5D XM 25Ton Truck Crane
  • Mobile Cranes Telescoping Boom QY25K5D XM 25Ton Truck Crane
  • Mobile Cranes Telescoping Boom QY25K5D XM 25Ton Truck Crane
Mobile Cranes Telescoping Boom QY25K5D XM 25Ton Truck Crane
Product Details:
Place of Origin: China
Brand Name: Santo
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: 15000USD-50000USD
Packaging Details: Standard export package by RO-RO ship / Bulk transport / Container packing / SKD / etc., also it can be offered according to your request.
Delivery Time: 20~45 WORKING DAYS
Payment Terms: L/C, T/T
Supply Ability: 1000SETS/YEAR
Contact Now
Detailed Product Description
Feature: Truck Crane Condition: New
Application: Construction , Building, Pickup Rated Loading Capacity: 5t-50t
Engine: Optional Chassis Included Span: 7.5m-31.5m
High Light:

25Ton Truck Crane

,

Telescoping Boom Truck Crane

,

7.5m Truck Mounted Boom Crane

Mobile Cranes Telescoping Boom QY25K5D XM 25Ton Truck Crane



Product Description:



The truck crane are able to travel on highways, eliminating the need for special equipment to transport the crane. When working on the job site, outriggers are extended horizontally from the chassis then vertically to level and stabilize the crane while stationary and hoisting.





Truck cranes are mounted on truck carriers which are used primarily for lifting material on the job site. This series products are designed for ease of use along with mobility and safety.

Truck with crane is also named truck with loading crane.It widely used in municipal construction,Coal mine engineering ,landscaping , the other construction materials and other equipment hoisting and transportation.



Technical Parameters


Parameters of standard truck crane



1. Lifting performance



Announced model QY3B24 QY5B30 QY6B36

QY8B40/

LQY8B38

QY10B42/

LQY10B42

QY12B45/

LQY12B45

QY16B52/

LQY16B52

LQY20B66
Chassis brand Dongfeng, T-king, BMC, Dayun, Benma, Shifeng, Wuzheng, Forland etc. as optional, or homemade
Max.Lifting Capacity 3 T 5 T 6 T 8 T 10 T 12 T 16 T 20 T
Max. boom length 24 m 30 m 36 m 40 m/38 m 42 m 45 m 52 m 66 m



2. Chassis parameters of Dongfeng truck and T-king truck



Chassis brand Dongfeng Dongfeng Dongfeng Dongfeng
Announced model EQ5102JQZK EQ5110JQZK EQ5120JQZK EQ5161JQZK
Engine model 4DX23-120E4 WP4150E40 YC4E140-42 YC4E160-42/ISB180-40
Power(kw) 90 105 110 118/132
Axle base(mm) 3800 3950 4200 4500/5200
Tire 825-16 825-20 825-20 825-20/900-20
Dimension(mm) 9940x2350x3140 10055x2400x3250 10110x2470x3350 11650x2480x3360
Max.travel speed 88 km/h 75 km/h 75 km/h 75 km/h



Advantages



Safety
Bilateral can switch operation, easy observation lift, safer and more humane.
High quality hydraulic components, quality assurance, strong commonality, swap is convenient, safety operation.
With rotary impact device, It is can effectively protect the security of the vehicle.
High-efficiency
Straight arm hanging cylinder with built-in line technology, synchronous expansion, boom concise appearance, scale efficiency is high.
Integral lifting structure, hydraulic system stability, high lifting efficiency.
Dependable
Use at three floating bridge structure design, effectively reduce the additional stress of the chassis frame
Counterparts for the first time using dislocation leg structure, bearing capacity is strong, leg span is the largest
Match the whole machine adopts advanced research and development technology, reasonable structure, reliable in performance.
Stabilization
Using high strength steel, compact structure, light weight, small space for installation, mechanical performance is stable.
Hexagon crane jib structure, good to neutral, bending ability.
Industry for the first time by reduction gear turbine worm type slewing mechanism, the rotary stability.


8oo 1 (3)

NeoImage_

8oo 1 (4)



Truck Chassis


1)Scientific power matching ensure more robust power transmission and more energy-saving power systems.
2)Hydraulic steering system makes structure simple & turning easily.
3)Sophisticated chassis design and matching system makes the crane more reliable performance and lower maintenance costs.
4)Various strengthened road testing to ensure that the chassis with more reliable performance.
5)Intelligent torque limiter system,full protection for crane to ensure the operation is more accurate, more stable, more comfortable

truck crane accessory



Hydraulic System


1)Telescoping system using traffic renewable technology which dramatically improves the speed of outriggers.
2)Hydraulic parts such as balance valve, hydraulic lock are made of high-quality components which can improve reliability of system.
3)Hydraulic components’ rational layout will make maintenance more simple and convenient.

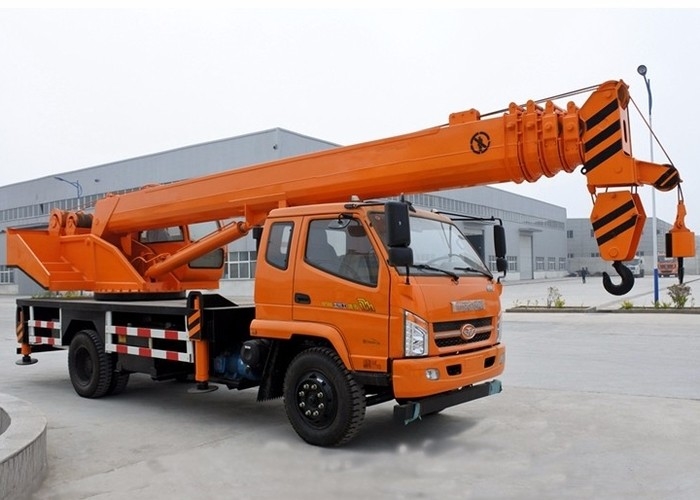

KAMA truck crane p08T-king truck crane p04
