| Place of Origin: | China |
| Brand Name: | Santo |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | 15000USD-50000USD |
| Packaging Details: | Standard export package by RO-RO ship / Bulk transport / Container packing / SKD / etc., also it can be offered according to your request. |
| Delivery Time: | 20~45 WORKING DAYS |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000SETS/YEAR |
| Feature: | Truck Crane | Condition: | New |
|---|---|---|---|
| Application: | Construction , Building, Pickup | Rated Loading Capacity: | 5t-50t |
| Engine: | Optional Chassis Included | Boom Feature: | Knuckle Boom And Telescopic Boom |
| High Light: | ISO 66m Truck Mounted Boom Crane,24m Truck Mounted Boom Crane,ISO truck mounted knuckle boom crane |
||
ISO Certification Truck Mounted Boom Crane For Primarily For Lifting Material On The Job Site
Product Description:
The full name of the truck-mounted crane is a truck-mounted crane, also known as a self-contained crane, a self-unloading crane, and a self-contained crane. It is a kind of equipment that realizes the lifting, turning and hoisting of goods through a hydraulic lifting and telescopic system, and is usually assembled on a truck. It is widely used in the hoisting and transportation of municipal construction, coal mine engineering, landscaping and other infrastructure materials and other equipment. The truck-mounted crane can be operated left and right, and can be rotated 360 degrees forward and reverse, and can also be rotated in all directions. It can also be made into multi-functional, such as the flat belt crane can pull the excavator, the wrecker belt crane can also pull the trolley and so on.
Technical Parameters:
1. Lifting performance
| Announced model | QY3B24 | QY5B30 | QY6B36 |
QY8B40/ LQY8B38 |
QY10B42/ LQY10B42 |
QY12B45/ LQY12B45 |
QY16B52/ LQY16B52 |
LQY20B66 |
| Chassis brand | Dongfeng, T-king, BMC, Dayun, Benma, Shifeng, Wuzheng, Forland etc. as optional, or homemade | |||||||
| Max.Lifting Capacity | 3 T | 5 T | 6 T | 8 T | 10 T | 12 T | 16 T | 20 T |
| Max. boom length | 24 m | 30 m | 36 m | 40 m/38 m | 42 m | 45 m | 52 m | 66 m |
2. Chassis parameters of Dongfeng truck:
| Chassis brand | Dongfeng | Dongfeng | Dongfeng | Dongfeng |
| Announced model | EQ5102JQZK | EQ5110JQZK | EQ5120JQZK | EQ5161JQZK |
| Engine model | 4DX23-120E4 | WP4150E40 | YC4E140-42 | YC4E160-42/ISB180-40 |
| Power(kw) | 90 | 105 | 110 | 118/132 |
| Axle base(mm) | 3800 | 3950 | 4200 | 4500/5200 |
| Tire | 825-16 | 825-20 | 825-20 | 825-20/900-20 |
| Dimension(mm) | 9940x2350x3140 | 10055x2400x3250 | 10110x2470x3350 | 11650x2480x3360 |
| Max.travel speed | 88 km/h | 75 km/h | 75 km/h | 75 km/h |
Adventages:
The operating cost is low. It also provides loading, transportation and unloading. The price of a 6X4 truck-mounted crane equipped with a 12-ton crane is much lower than the total price of a 6X4 truck + a 12-ton truck crane. If In addition to the cost of diesel fuel, daily maintenance, hiring drivers, insurance, and handling procedures, the cost advantage of truck cranes is more obvious. A 6.3-ton truck-mounted crane is about the same price as an 8-ton crane. Driving a crane requires a special operation certificate in addition to the truck, transport certificate, and employment certificate, while driving a truck-mounted crane does not require such an operation certificate.
Application:
It is widely used in the hoisting and transportation of infrastructure materials and other equipment such as municipal construction, coal mine engineering, landscaping and so on.

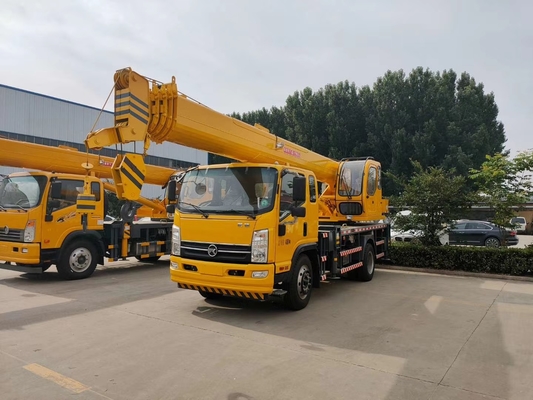

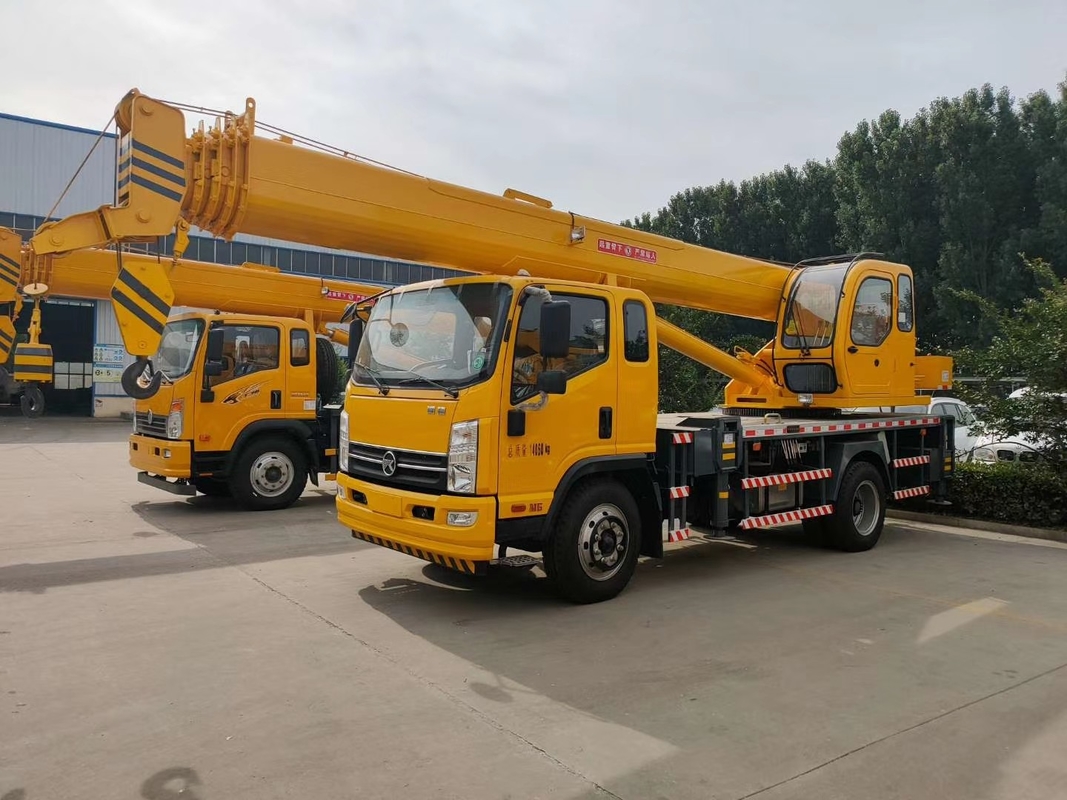

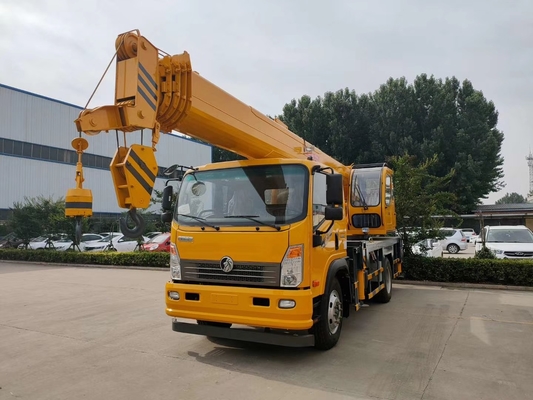

Detail images:
