| Place of Origin: | China |
| Brand Name: | Santo |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | 15000USD-50000USD |
| Packaging Details: | Standard export package by RO-RO ship / Bulk transport / Container packing / SKD / etc., also it can be offered according to your request. |
| Delivery Time: | 20~45 WORKING DAYS |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000SETS/YEAR |
| Feature: | Truck Crane | Condition: | New |
|---|---|---|---|
| Application: | Construction , Building, Pickup | Rated Loading Capacity: | 5t-50t |
| Engine: | Optional Chassis Included | Boom Feature: | Knuckle Boom And Telescopic Boom |
| High Light: | Truck Mounted Boom Crane 75km/H,Truck Mounted Boom Crane 88km/H,88km/H 8 Ton Crane Truck |
||
High - Efficiency Truck Mounted Boom Crane With Broad Business Scope
Product Description:
Truck mounted crane is a kind of transport vehicle which is combined with truck mounted crane and chassis. It is composed of lifting arm, turntable, frame, outrigger and other parts. The mechanical action of the truck-mounted crane is realized through the actions of the luffing, telescopic, rotating, hoisting and other mechanisms, and the lifting operation is realized through the combination of different actions.
Technical Parameters:
1. Lifting performance
| Announced model | QY3B24 | QY5B30 | QY6B36 |
QY8B40/ LQY8B38 |
QY10B42/ LQY10B42 |
QY12B45/ LQY12B45 |
QY16B52/ LQY16B52 |
LQY20B66 |
| Chassis brand | Dongfeng, T-king, BMC, Dayun, Benma, Shifeng, Wuzheng, Forland etc. as optional, or homemade | |||||||
| Max.Lifting Capacity | 3 T | 5 T | 6 T | 8 T | 10 T | 12 T | 16 T | 20 T |
| Max. boom length | 24 m | 30 m | 36 m | 40 m/38 m | 42 m | 45 m | 52 m | 66 m |
2. Chassis parameters of Dongfeng truck:
| Chassis brand | Dongfeng | Dongfeng | Dongfeng | Dongfeng |
| Announced model | EQ5102JQZK | EQ5110JQZK | EQ5120JQZK | EQ5161JQZK |
| Engine model | 4DX23-120E4 | WP4150E40 | YC4E140-42 | YC4E160-42/ISB180-40 |
| Power(kw) | 90 | 105 | 110 | 118/132 |
| Axle base(mm) | 3800 | 3950 | 4200 | 4500/5200 |
| Tire | 825-16 | 825-20 | 825-20 | 825-20/900-20 |
| Dimension(mm) | 9940x2350x3140 | 10055x2400x3250 | 10110x2470x3350 | 11650x2480x3360 |
| Max.travel speed | 88 km/h | 75 km/h | 75 km/h | 75 km/h |
Adventages:
The truck-mounted crane is widely used. Compared with the partner transportation of ordinary trucks and cranes, the truck-mounted crane has many advantages in business. It is not limited by time. In many places in big cities, trucks are not allowed to drive during the day, so goods are only transported at night. The charges for cranes at night are very high, and in this case, the advantages of truck-mounted cranes are obvious. The truck-mounted crane is especially required to transport the utility pole, because the truck-mounted crane can not only hoist and transport the utility pole, but also erect the utility pole to help the installation after arriving at the construction site, which is very convenient.
It is convenient and fast. The largest model of the truck-mounted crane is only the 8X4 model, that is, the first four and the last eight models. This model is generally equipped with a 14-ton crane and 30 tons of goods. The length of the whole vehicle is only 13 meters, and the width is only 13 meters. It is only 2.5 meters, but for a truck crane, a casual truck crane is more than 20 meters, and the turning radius is too large, which is not easy to operate.
Application:
It is widely used in the hoisting and transportation of infrastructure materials and other equipment such as municipal construction, coal mine engineering, landscaping and so on.

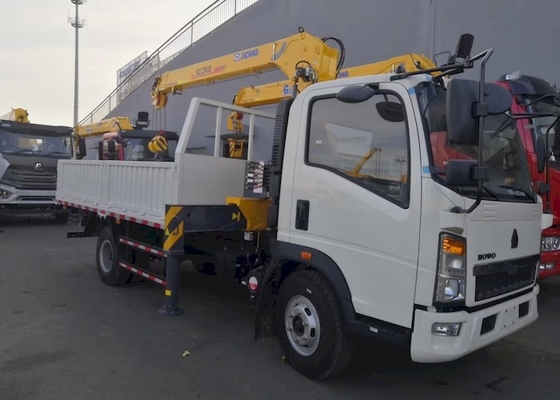

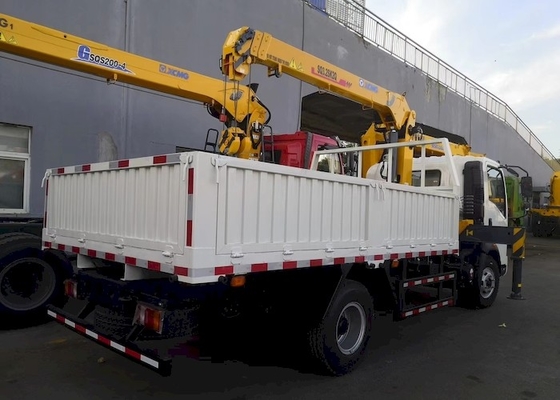

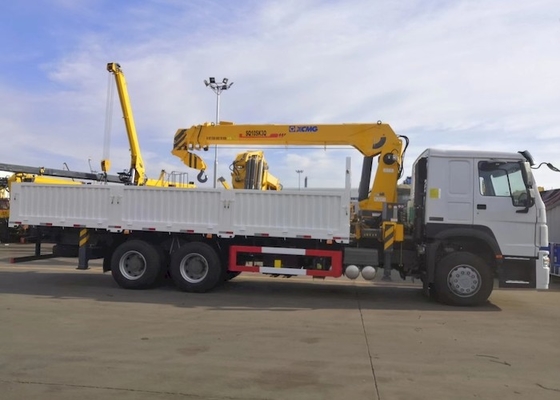

Detail images:
