LH Type Mobile Electric Double Girder Overhead Crane 50Ton with Electric Trolley

Product Details:

Place of Origin:	CHINA
Brand Name:	SANTO
Certification:	ISO, CE
Model Number:	LH

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	USD6000-40000/set
Packaging Details:	Electrical and other parts packed by high quality plywood crate, steel beams packed by plastic films or plastic woven cloth
Delivery Time:	35-45 working days
Payment Terms:	L/C, T/T
Supply Ability:	6000set/year

Contact Now

Detailed Product Description

Product Name:	LH Type Puente Grua Mobile Electric Double Girder Overhead Crane 50Ton With Electric Trolley	Span:	7-35m
Max. Lifting Height:	6m~30m	Max. Lifting Load:	32t
Control Method:	Wireless Remote Control,Ground Control,pendant Control	Application:	Workshop,Warehouse,plants,factory,warehouse And So On
Rated Loading Capacity:	320KN	Main Electrical Parts:	Chint, Or As Requirments Siemens, Schneider
High Light:	Double Girder Overhead Crane 50Ton , LH Type Double Girder Overhead Crane , 30m Mobile Electric Overhead Crane

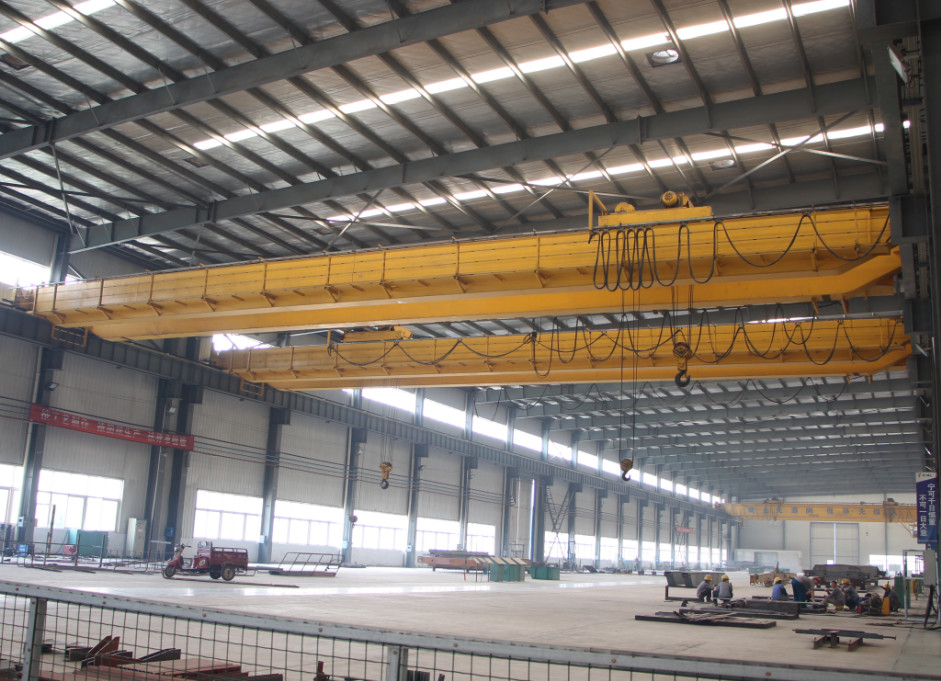

LH Type Puente Grua Mobile Electric Double Girder Overhead Crane 50Ton With Electric Trolley

1. Compact Gear Motor	2. Limit Switch
Smooth traveling and lifting work, Low Dead Weight Low Noise German Quality, Safety and Durable	Safe Limit Switch for Lifting and Traveling Incase of load crash the top of lift mechanism Incase of trolley or Crane crash to the end of track.
3. Small and high strength Wheel	4. Aviation Revos
Small euro-type wheel help lowen the whole dead weight of the overhead crane Advanced Wheel shape design lower the noise and make the traveling more smoothly	With this Aviational Revos, the Electrical box has a higher protect class, Safety and Reliable
5. Hook
DIN standard hook with block High strength and with cover, Beautiful and pratical

Traditional ISO standard overhead Crane Design

Strong and durable steel material adapted make the whole crane more safety.

Cheaper price while the quality from us are top of line, because we are professional.

Trolley

Industrial Double Girder Electric Overhead Travelling Crane Lifting Machine 5ton 10ton 20ton 50ton 100ton with Best Price

Main Beam

Industrial Double Girder Electric Overhead Travelling Crane Lifting Machine 5ton 10ton 20ton 50ton 100ton with Best Price

European FEM/DIN standard double girder overhead crane

Compact design especially for low clearance workshop. Light deadweight help lower the total cost for construction.

Meanwhile, the price is also more affortable than other supplier.

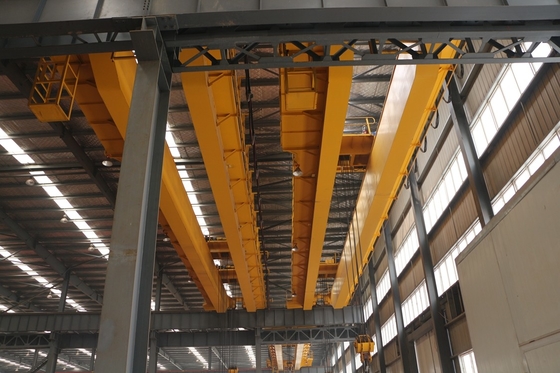

Cranes

Industrial Double Girder Electric Overhead Travelling Crane Lifting Machine 5ton 10ton 20ton 50ton 100ton with Best Price

Trolley Showing

Industrial Double Girder Electric Overhead Travelling Crane Lifting Machine 5ton 10ton 20ton 50ton 100ton with Best Price

Design Standard

The design and manufacture comply with following ISO or FEM/DIN standards

GB/T 3811-2008 GB6067.1-2010 GB/T14405-2011 GB/T14406-2011 GB/T10183-2005 GB/T5905-2011 JB/T4315-1997 GB/T8918-2006 GB/T700-2006 GB/T1591-2008 Jb928-1994 GB11345-1989		Design rules for cranes Crane machinery safety procedures General overhead crane General gantry cranes Tolerance of Overhead crane and gantry crane manufacuturing and rails installation Crane testing rules and process Crane Electrical control equipment Wire rope for cranes Carbon structural steel Low-Alloy High-Tensile Structural Steel The standard of Radiographic inspection for weld joint Manual ultrasonic testing method
DIN EN 14492-2 DIN EN 60204-32 DIN 3051-Sections 1–4 DIN 15017 DIN 15020- Sections 1–2 DIN 15061- Sections 1–2 DIN 15100 DIN 15400 through DIN15414		Cranes – Power Driven Hoists Safety of Machinery; Electrical Equipment of Machines; Requirements for Hoisting Machines Lifting Ropes; Steel Wires Cranes & Hoists; Principles of Motor and Gear Sizing Hoists; Principles of Rope Reeving Cranes & Hoists; Grooves for Rope Sheaves & Drums Serial Lifting Equipment; Nomenclature Detailed Aspects of Load Hooks and Bottom Block Construction
FEM 1.002 FEM 9.811 FEM 9.511 FEM 9.661 FEM 9.683 FEM 9.852 FEM 9.755 FEM 9.751 FEM 9.901		Illustrated Terminology of Heavy Lifting Equipment Rope and Chain Hoists – General Specifications Rules for the Design of Series Lifting Equipment - Classification of Mechanisms Rules for the design of Series Lifting Equipment - Dimensions and Design of Rope Reeving Components Selection of Hoist and Travel Motors Power Driven Series Hoist Mechanisms, Standardized Test Procedure for Verification of the Classification Measures for Achieving Safe Working Periods for Motorized Serial Hoist Units (S.W.P.) Power Driven Series Hoist Mechanisms, Safety Rules for the Design of Series Lifting Equipment and Cranes Equipped with Series Lifting Equipment

Sketch & Parameters

QSWL Gn rated lifting capacity				t	32/10 (we can supply up to 550 ton)
Opertional method				m/min	Remote or Pendant control/Cabin Control
Speed	Main.hook lifting				3(0.3/3)
	Aux.hook lifting				7(7/0.7)
	Cross travelling				20
	Long travelling		Remote or Pendant control		20/30
			Cabin Control		30/40
Motor	Main.hook lifting			kw	ZDX62-6/18.5,(ZDS2.2/18.5)
	Aux.hook lifting				ZD151-4/13(ZDS1-1.5/13)
	Cross travelling				ZDY123-4/2.2x2
	Long travelling		Remote or Pendant control		ZDY123-4/2.2x2		ZDY131-4/3x2
			Cabin Control		ZDR112L2-4/3.0x2			ZDR125-4/4.6x2
Electric Hoist					WH164;CD1(MD1)
Lifting Height				m	9;12;16;24
Duty Class					A3--A5
Power source					3-phase A.C. 50Hz;380V
Track recommended					43KG/M
Span				m	7.5	10.5	13.5	16.5	19.5	22.5	25.5
Max.wheel presure				KN	167	184	196	206	215	224	233
Crane weight		Remote or Pendant control		kg	12530	14660	16360	18870	21650	24260	27060
		Cabin Control		kg	13430	15560	17260	19770	22550	25160	27960
Basic dimensions		B		mm	5070--5960			5572--6222
		W		mm	3600~4500
		Wc		mm	2200-2900
		K		mm	1600~2500
		H		mm	1900
		H1		mm	765
		H2		mm	170	270	370	470	570	670	770
		H3		mm	2395	2495	2595	2695	2795	2895	2995
		H4		mm	-700
		b		mm	230
		S1		mm	1100
		S2		mm	1600

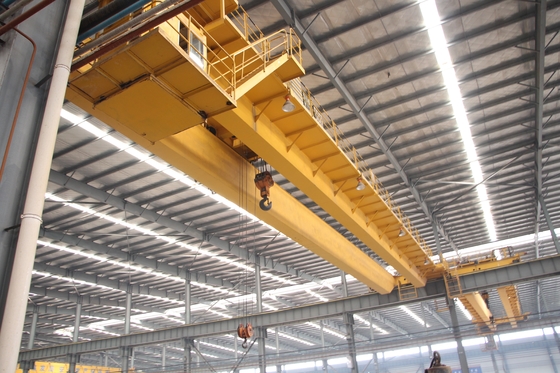

Installation

Spare parts we purchases

We have a very strictly purchase part selection system. We do all is to help improve our customers experience of our Crane

No.	Items	COOPERATE Manufacturers
1	Motor	Sino-US KDS Motor Factory Nanjing Special Motor Factory Wuxi XINDALI Motor Factory ABB-China SEW(Gearmotor)-German
2	Gear Box	SEW-German Jiangsu Tailong Reducer Factory Jiangsu Taixing Reducer Factory Shanghai TGS Transmission Equipment Co., Ltd. GUOTAI
3	Wire Rope	Italy Redaelli S.p.A. Nantong Wire Rope Factory
4	Electrical	CHINT Schneider SIMENS
5	Converter	Yaskawa Electric (China) Co., Ltd. Mitsubishi Schneider ABB-China
6	Controller	Lee's Hi-Tech Enterprise Co.,LTD. HBC-German Jay-Electronique
7.	Shaft	China: HRB/LYC/ZWZ SKF/FAG/NTN/IKO/KOYO/NACHI/TIMKEN

In order to make a very quick offer and saving your waiting time, It's better to fill the information below. Copy and send us the information together with the enquiry.

Industrial Double Girder Electric Overhead Travelling Crane Lifting Machine 5ton 10ton 20ton 50ton 100ton with Best Price

Load Capacity, ton:	(_______)
Span, S, m:	(_______)
Lift Height, H, m:	(_______)
Voltage:	(_______)
Duty Class:	(_______)
? Hours per day:	(_______)
Control way:	(_______)
Lift Speed:	(_______)
Cross & Long travel speed:	(_______)
Rail supply needed	(_______)
Power supply system needed	(_______)
Your nearest port:	(_______)

{Tips: 5 ton, 10 ton, 16 ton, 20 ton, 30 ton, 40 ton, 50 ton up to 550 ton}

{Tips: 6m ~40m}

{Tips: 380V, 50Hz, AC, 3-phase or please note}

{Tips: A5, A3, If you don't know, please fill the follow}

{Tips: Remote control, cabin control or pendent control }

{Tips: Single speed, double speed, or stepless speed}

{Tips: Single speed or stepless speed}

{Tips: If yes, please note the Long travel length}

{Tips: We quote CIF price need the port. FOB price please note FOB}

If your workshop roof is very low, Its better to send us a drawing, a sketch or show us datas and then our Engineer can work out a full suitable solution just for yours.

Looking forward your kindly inquiry and hope to help your strong business in near future!
