Large Area Movements Lightweight KBK Crane For Production Line

Large Area Movements Lightweight KBK Crane For Production Line

  • Large Area Movements Lightweight KBK Crane For Production Line
  • Large Area Movements Lightweight KBK Crane For Production Line
  • Large Area Movements Lightweight KBK Crane For Production Line
Large Area Movements Lightweight KBK Crane For Production Line
Product Details:
Place of Origin: CHINA
Brand Name: SANTO
Certification: ISO, CE
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD3000-10000/set
Packaging Details: Electrical and other parts packed by high quality plywood crate, steel beams packed by plastic films or plastic woven cloth
Delivery Time: 20-30 working days
Payment Terms: L/C, T/T
Supply Ability: 5000set/year
Contact Now
Detailed Product Description
Max. Lifting Load:: 3200kg Bridge Span: 3m To 12m
Lifting Mechanism: Electric Chain Hoist Lifting Height: 3m, 6m, 9m Or As Requirements
Product Name: Kbk Light Crane System, Workstation Crane Lifting Speed: Variable Speed (standard)
Control Method: Pendant Control Or As Request Voltage: 380V, 50Hz, 3-phase AC Or As Request
Condition: New Feature: Standard Modular Design
Warranty: 1 Year
High Light:

Lightweight KBK Crane


KBK Crane For Production Line


Large Area Movements Lightweight Crane

Large - Area Movements Light Weight KBK Crane For Production Line




KBK rail cranes are widely used in the field of material transportation at present. Below we briefly introduce the basic advantages and use characteristics of KBK rail cranes.
Since the KBK rail cranes make full use of the free space above the work surface and the production line, valuable floor space is left for other production activities.
KBK standard components are designed and manufactured in accordance with the concept of standardization and modularization, and are flexible, reliable in system performance, flexible in operation and easy in installation.
Because each component is produced in standardized modules, each component is easy to install and flexible. It can complete the splicing and debugging of the track in a short time, so the short investment time is also one of its advantages.


KBK Crane Features:


1. Good reliability and stable performance
The components of the RBD flexible light suspension crane system are all standard modules, which can ensure large-scale and high-quality production, so the system is very reliable; the main body of the system module is three specifications of cold-rolled profiles, with high strength, good rigidity, and light weight. Ensure the stability of the system.


2. Strong adaptability
The RBD flexible suspension crane system can be flexibly designed and installed according to the needs of each station in the factory. From fixed-point transportation to high-accuracy multi-point and multi-beat automatic conveyor lines, they can be combined at will. It can be used for newly designed workshops, and can also be used for system transformation and extension.


3. Easy to install, cost-effective
The installation and commissioning of the RBD flexible suspension crane system is very convenient. The RBD profiles and each standard module only need to be connected by bolts, which can save the space and area of the factory, thereby reducing energy consumption and improving enterprise efficiency. The system can be operated manually, or automatically or semi-automatically, with high efficiency.


4. Maintenance free
Our warranty on RBD Flexible Suspension Cranes can be up to five years.




KBK-LD Type Single Girder Workstation Suspension Crane

KBK Modular Crane System Ceiling Mounted and Free Standing Workstation Crane 125kg to 3200kg with European Modular Design

125 250 500 1000
L 9000 8000 7000 4000
LK 8500 7500 6500 3500
L2 95 95 95 220
L3 645 585 525 470
B 190 190 190 460
H 808 898 948 1071
h 335 335 335 349
We can customised design according to customers' requirements.




Our KBK light crane system can be utilized in production facilities for the following industries and more:

  • Applications with lighter loads (usually less than 3200 kgs.)
  • Parts Assembly
  • Machining
  • Palletizing loads
  • Injection Molding
  • Warehouse loading docks
  • Process Equipment Maintenance
  • Logistics
  • Metal Manufacturing
  • Wind Power
  • Automobile Making
  • Rail Transfer
  • Construction Machinery

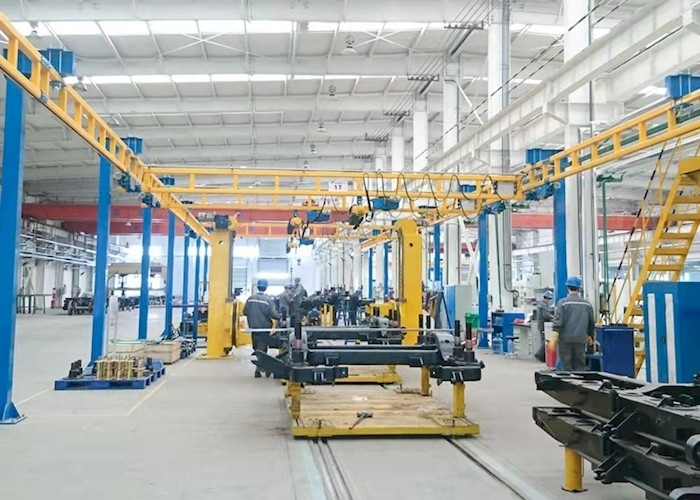

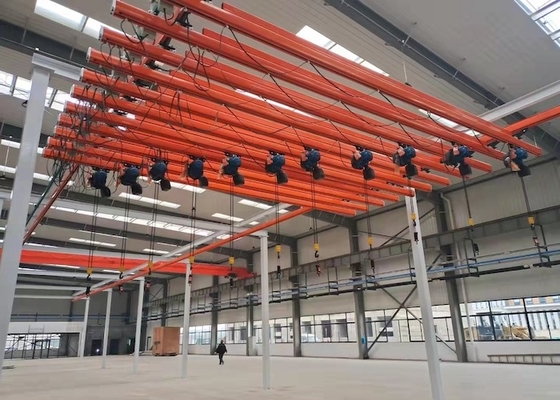

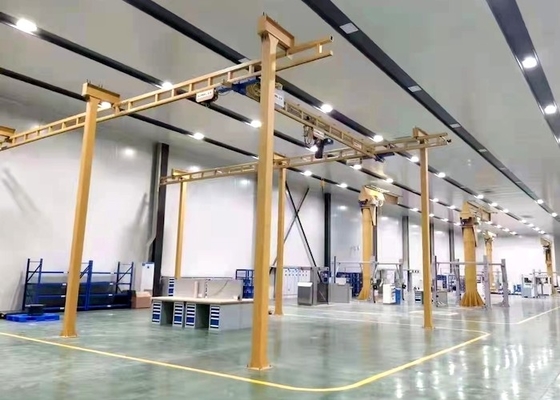

KBK Crane Photos:

Large Area Movements Lightweight KBK Crane For Production Line 1
