360 Degree Wide Adaptability Mobile Jib Crane 125KG To 500KG Lifting Weight

360 Degree Wide Adaptability Mobile Jib Crane 125KG To 500KG Lifting Weight

  • 360 Degree Wide Adaptability Mobile Jib Crane 125KG To 500KG Lifting Weight
  • 360 Degree Wide Adaptability Mobile Jib Crane 125KG To 500KG Lifting Weight
360 Degree Wide Adaptability Mobile Jib Crane 125KG To 500KG Lifting Weight
Product Details:
Place of Origin: CHINA
Brand Name: SANTO
Certification: ISO, CE
Model Number: BXB, BZZ, BXD, BXN, BZD, BZN
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD3000-5000/set
Packaging Details: Electrical and other parts packed by high quality plywood crate, steel beams packed by plastic films or plastic woven cloth
Delivery Time: 15-30 working days
Payment Terms: L/C, T/T
Supply Ability: 5000set/year
Contact Now
Detailed Product Description
Condition: New Warranty: 12 Months
Arm Outreach: 3-20m After-sales Service Provided: Engineers Available To Service Machinery Overseas,Field Installation,commissioning And Training,Online Support,Field Maintenance And Repair Service
Feature: Jib Crane Max. Lifting Height: 6m~30m
Rated Lifting Moment: Different Max. Lifting Load: 20t
Product Name: Jib Crane Application: Workshop,Warehouse,plants,factory,warehouse And So On
Control Method: Wireless Remote Control,pendant Control Rated Loading Capacity: 1-20t
Color: Yellow, Red, Or As Requirments Power Source: 3 Phase 380V 50hz Or Be Customized
Power Supply: 220V~480V 50/60Hz Crane Feature: Easy Operated Jib Crane
Type: Slewing Arm Jib Crane, Light Crane System Lifting Mechanism: Electric Hoist, Chain Hoist, Chain Block, Etc
Lifting Speed: 0~8m/min Main Electrical Parts: Chint, Or As Requirments Siemens, Schneider
High Light:

Mobile Jib Crane 125KG


jib crane 360 degree rotation


500KG mobile crane with jib

Wide Adaptability Mobile Jib Crane Lifting Weight 125KG To 500KG


Jib Crane Introduction:


The working strength of the jib crane is light. The crane is composed of a column, a slewing arm slewing drive device and an electric hoist. The lower end of the column is fixed on the concrete foundation by anchor bolts, and the cycloidal pinwheel reduction device drives the jib to rotate. The swing arm I-beam runs in a straight line from left to right, and lifts heavy objects. The jib of the crane is a hollow steel structure, which is light in weight, large in span, large in lifting capacity, economical and durable. The built-in traveling jib crane MODE type traveling mechanism adopts special engineering plastic traveling wheels with rolling bearings, which has low friction force and light travel; small structure size is especially beneficial to improve the hook stroke.


Jib Crane Specification:


Type BZ0.25 BZ0.5 BZ1 BZ2 BZ3 BZ5 BZ8 BZ10
Lift Capacity (t) 0.25 0.5 1 2 3 5 8 10
Max. Lift Height(m) 3 3 3 3 4 4 6 8
Slew Angle(0) 360 360 360 360 360 360 360 360
Lift Speed (m/min) Normal 4;10;8 5;10;8 8 8 8 8 8 8
Slow 1;2.5;0.8 1.25;2.5 0.8 0.8 0.8 0.8 0.8 0.8
Level Travel Speed (m/min) 20 20 20 20 20 20 20 20
Slewing Speed (r/min) 0.7 0.7 0.7 0.7 0.6 0.6 0.6 0.6
Electric hoist wire rope electric hoist or chain electric hoist
Power supply 220~440V,50/60HZ,3phase or customized
Control mode Pendent pushbutton control or remote control
Above parameter just for your reference,jib crane can be customized design Max.20t according to your demands.


Note: sers can also select double speed, single speed chain and wire rope hoist.


Jib Crane Advantages:

  • Jib cranes could be used everywhere, from small shops to big factory produce line, or every industries. The features of jib crane are easy to install, use and operation.
  • Compared with wall mounted and wall travelling jib crane, free standing jib cranes can reach to the higher capacities, longer spans and greater rotation range. Because of the favorable structure, this kind jib crane can be custom-modified to meet the requirement of your special applications.The only restriction of installation is that pressure of the soil free standing jib crane founded on must be up to 2500 lbs per square foot.
  • Easy to install and relocate. Nearly can be installed in anyplace if needed.
  • Because of the its good adaptability, it can adapt with your changing needs with a little modify.
  • Some kinds of this special cranes require no floor space while others can maximize the lifting height. So , with them ,the utility rate of space is unrivaled.
  • The structure of this kind crane is small and flexible. It can work as a supplement for a gantry or overhead crane . By working together, the productivity of your workshop can ultimately increase to the maximum .
  • If the material you need to move is light and small, launch a high-power overhead or gantry crane is a great waste. Under those circumstances, low-power crane hand goods more effectivel


For safety and high-altitude work considerations, please specify the maintenance plan of the equipment according to the actual situation, and check it at least every six months or a year according to the following key tips.

1. Bolted connection line, bolted connection of anchor bolts, and bolted connection with stopper end cap. Bolted connection for arm installation, bolt connection for drive installation.


2. Tight fit and wear of the pin connection on the hoist, trolley/carrying beam of matching and wear parts. Slow down and wear of trolley wheel, roller and cantilever bearing motion. Generally, add lithium-based or calcium-based grease once after 6 months of use. Inspection of electrical equipment, including wear of cable sliders, damage to flat cables, etc.


3. Wear of the stopper.


4. The inspection and maintenance of the electric hoist, the inspection and maintenance of the electric hoist should be carried out by the designated personnel, and the electric hoist, the chain and the walking drive device should be checked according to the corresponding regulations.


5. When it is found in the inspection that the damage exceeds the relevant specified value, the parts should be replaced.


Pictures Show:

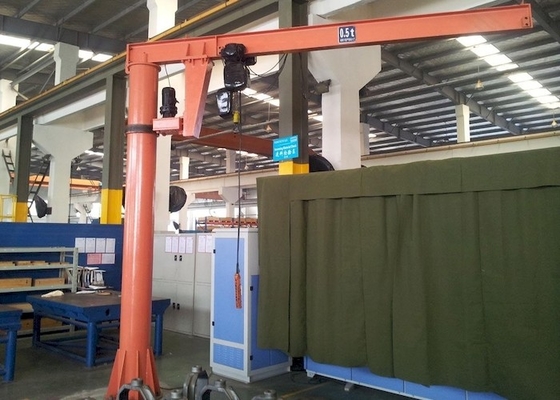

360 Degree Wide Adaptability Mobile Jib Crane 125KG To 500KG Lifting Weight 0

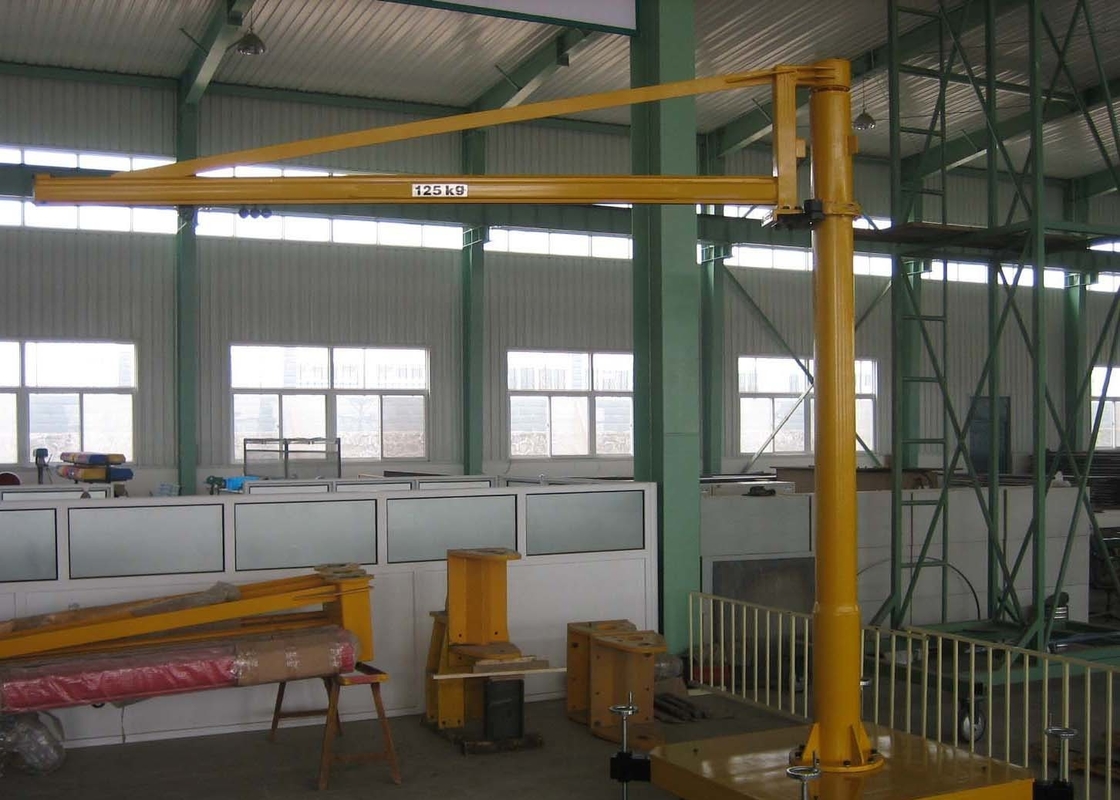

360 Degree Wide Adaptability Mobile Jib Crane 125KG To 500KG Lifting Weight 1

360 Degree Wide Adaptability Mobile Jib Crane 125KG To 500KG Lifting Weight 2
