OEM ODM 650cm To 1000cm Swing Arm Jib Crane Flexible Rotation

OEM ODM 650cm To 1000cm Swing Arm Jib Crane Flexible Rotation

  • OEM ODM 650cm To 1000cm Swing Arm Jib Crane Flexible Rotation
  • OEM ODM 650cm To 1000cm Swing Arm Jib Crane Flexible Rotation
  • OEM ODM 650cm To 1000cm Swing Arm Jib Crane Flexible Rotation
OEM ODM 650cm To 1000cm Swing Arm Jib Crane Flexible Rotation
Product Details:
Place of Origin: CHINA
Brand Name: SANTO
Certification: ISO, CE
Model Number: BXB, BZZ, BXD, BXN, BZD, BZN
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD3000-5000/set
Packaging Details: Electrical and other parts packed by high quality plywood crate, steel beams packed by plastic films or plastic woven cloth
Delivery Time: 15-30 working days
Payment Terms: L/C, T/T
Supply Ability: 5000set/year
Contact Now
Detailed Product Description
Condition: New Warranty: 12 Months
Arm Outreach: 3-20m After-sales Service Provided: Engineers Available To Service Machinery Overseas,Field Installation,commissioning And Training,Online Support,Field Maintenance And Repair Service
Feature: Jib Crane Max. Lifting Height: 6m~30m
Rated Lifting Moment: Different Max. Lifting Load: 20t
Product Name: Jib Crane Application: Workshop,Warehouse,plants,factory,warehouse And So On
Control Method: Wireless Remote Control,pendant Control Rated Loading Capacity: 1-20t
Color: Yellow, Red, Or As Requirments Power Source: 3 Phase 380V 50hz Or Be Customized
Power Supply: 220V~480V 50/60Hz Crane Feature: Easy Operated Jib Crane
Type: Slewing Arm Jib Crane, Light Crane System Lifting Mechanism: Electric Hoist, Chain Hoist, Chain Block, Etc
Lifting Speed: 0~8m/min Main Electrical Parts: Chint, Or As Requirments Siemens, Schneider
High Light:

1000cm Swing Arm Jib Crane


650cm Swing Arm Jib Crane


ODM Flexible Rotating Jib Crane

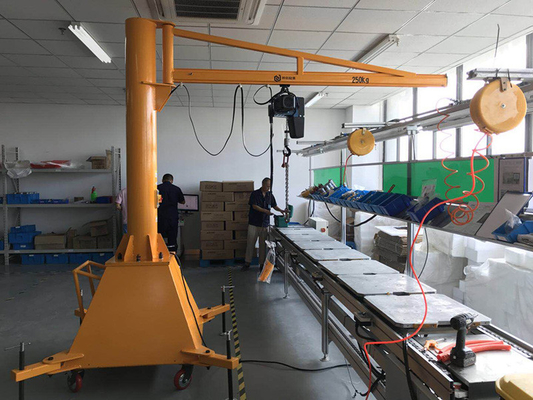

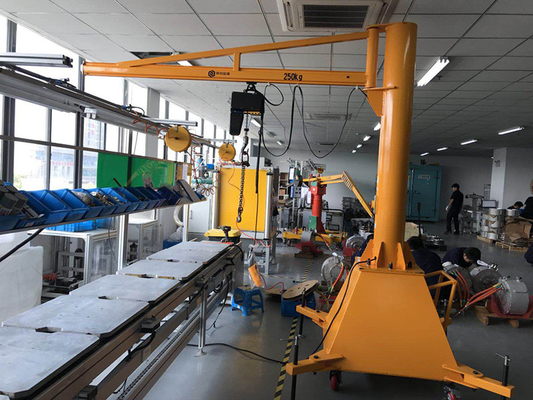

Jib Crane Flexible Rotation And Large Working Space For Assembly Lines




The working strength of the jib crane is light. The crane is composed of a column, a slewing arm slewing drive device and an electric hoist. The lower end of the column is fixed on the concrete foundation by anchor bolts, and the cycloidal pinwheel reduction device drives the jib to rotate. The swing arm I-beam runs in a straight line from left to right, and lifts heavy objects. The jib of the crane is a hollow steel structure, which is light in weight, large in span, large in lifting capacity, economical and durable. The built-in traveling jib crane MODE type traveling mechanism adopts special engineering plastic traveling wheels with rolling bearings, which has low friction force and light travel; small structure size is especially beneficial to improve the hook stroke.




(1) Simple installation

Wall traveling jib cranes can be mounted on wall, no special floor space required.


(2) Shorten loading time, improve work efficiency

With a jib crane, workers can lift, quickly transport and precisely deposit all kinds of work pieces at any time.


(3) Easy handing, lighten laboring work

It can relieve the strain of physically demanding work on your staff. The risk of injuries or accidents when handing heavy or unwieldy parts is considerably reduced.


(4) High quality with good price

All of our cranes are ending with full load factory testing of every part, certifies the functionality and quality to customers. We will offer you the most adequate equipments for your needs through good communication.


Technical parameters:


Model Lift Capacity(t) Arm Length(mm)
BXB0.25 0.25 10000
BXB0.5 0.5
BXB1 1 10000
BXB2 2 10000
BXB3 3 7500
BXB5 5 6500


Main Classification of Jib Crane:


BB Wall-travelling Jib Crane
Lifting capacity: o.5-16t, Lifting height: 6-30m, Working class: A3.


BZ Pillar Jib Crane

Lifting capacity: o.5-5t, Lifting height: 1-10m, Working class: A3.


BX Wall Mounted Jib Crane

Lifting capacity: o.25-1t, Lifting height: 1-10m, Working class: A3.


OEM ODM 650cm To 1000cm Swing Arm Jib Crane Flexible Rotation 0



For safety and high-altitude work considerations, please specify the maintenance plan of the equipment according to the actual situation, and check it at least every six months or a year according to the following key tips.


1. Bolted connection line, bolted connection of anchor bolts, and bolted connection of end cap with stopper. Bolted connection for arm installation, bolt connection for drive installation.


2. Tight fit and wear of the pin connection on the hoist, trolley/carrying beam of the fitting and wear parts. Slow down and wear of trolley wheel, roller and cantilever bearing motion. Generally, add lithium-based or calcium-based grease once after 6 months of use. Inspection of electrical equipment, including wear of cable sliders, damage to flat cables, etc.


3. Wear of the stopper.


4. The inspection and maintenance of the electric hoist, the inspection and maintenance of the electric hoist should be carried out by the designated personnel, and the electric hoist, the chain and the walking drive device should be checked according to the corresponding regulations.


5. When it is found in the inspection that the damage exceeds the relevant specified value, the parts should be replaced.
