| Place of Origin: | CHINA |
| Brand Name: | SANTO |
| Certification: | ISO, CE |
| Model Number: | BXB, BZZ, BXD, BXN, BZD, BZN |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | USD3000-5000/set |
| Packaging Details: | Electrical and other parts packed by high quality plywood crate, steel beams packed by plastic films or plastic woven cloth |
| Delivery Time: | 15-30 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5000set/year |
| Condition: | New | Warranty: | 12 Months |
|---|---|---|---|
| Arm Outreach: | 3-20m | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Field Installation,commissioning And Training,Online Support,Field Maintenance And Repair Service |
| Feature: | Jib Crane | Max. Lifting Height: | 6m~30m |
| Rated Lifting Moment: | Different | Max. Lifting Load: | 20t |
| Product Name: | Jib Crane | Application: | Workshop,Warehouse,plants,factory,warehouse And So On |
| Control Method: | Wireless Remote Control,pendant Control | Rated Loading Capacity: | 1-20t |
| Color: | Yellow, Red, Or As Requirments | Power Source: | 3 Phase 380V 50hz Or Be Customized |
| Power Supply: | 220V~480V 50/60Hz | Crane Feature: | Easy Operated Jib Crane |
| Type: | Slewing Arm Jib Crane, Light Crane System | Lifting Mechanism: | Electric Hoist, Chain Hoist, Chain Block, Etc |
| Lifting Speed: | 0~8m/min | Main Electrical Parts: | Chint, Or As Requirments Siemens, Schneider |
| High Light: | 440V BZ Column Fixed Boom Crane,Fixed Boom Crane 30m Lifting Height,220V wall travelling crane |
||
Wall Travelling Jib Cranes Provide Materials Long Movement Without Floor Space
Jib Crane Introduction:
BZ jib crane is a small and medium-sized lifting equipment developed recently. It has the characteristics of unique structure, safe and reliable operation, high efficiency, energy saving, time saving, labor saving, flexibility and so on. Can run in 3D environment. It is even better in the case of short distance and concentrated improvement. It is widely used in various sites across various industries.
Jib Crane Features:
1. The Jib Crane is suitable to work in the dock, warehouse, workshop etc fixed working conditions, it can work within the 360 degrees to lift, move and materials handling.
2. This type machine is composed by the vertical shaft, revolving arm, rotating shaft, hoist etc, the bottom of the vertical shaft is fixed on the concrete base.
3. This type machine with advantages of the simple structure, operate convenience, turning agile, wide working conditions
Jib Crane Specification:
| Type | BZ0.25 | BZ0.5 | BZ1 | BZ2 | BZ3 | BZ5 | BZ8 | BZ10 | |
| Lift Capacity (t) | 0.25 | 0.5 | 1 | 2 | 3 | 5 | 8 | 10 | |
| Max. Lift Height(m) | 3 | 3 | 3 | 3 | 4 | 4 | 6 | 8 | |
| Slew Angle(0) | 360 | 360 | 360 | 360 | 360 | 360 | 360 | 360 | |
| Lift Speed (m/min) | Normal | 4;10;8 | 5;10;8 | 8 | 8 | 8 | 8 | 8 | 8 |
| Slow | 1;2.5;0.8 | 1.25;2.5 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | |
| Level Travel Speed (m/min) | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | |
| Slewing Speed (r/min) | 0.7 | 0.7 | 0.7 | 0.7 | 0.6 | 0.6 | 0.6 | 0.6 | |
| Electric hoist | wire rope electric hoist or chain electric hoist | ||||||||
| Power supply | 220~440V,50/60HZ,3phase or customized | ||||||||
| Control mode | Pendent pushbutton control or remote control | ||||||||
| Above parameter just for your reference,jib crane can be customized design Max.20t according to your demands. | |||||||||
Note: sers can also select double speed, single speed chain and wire rope hoist.
Safe operation:

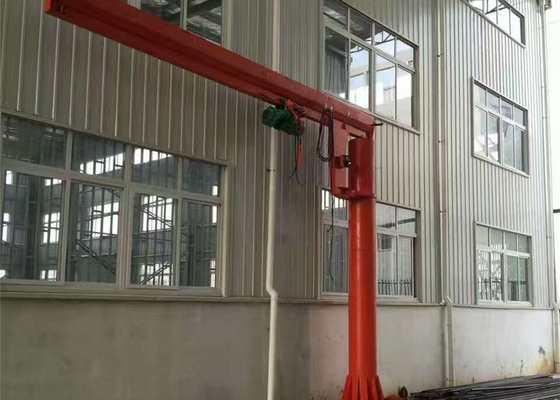

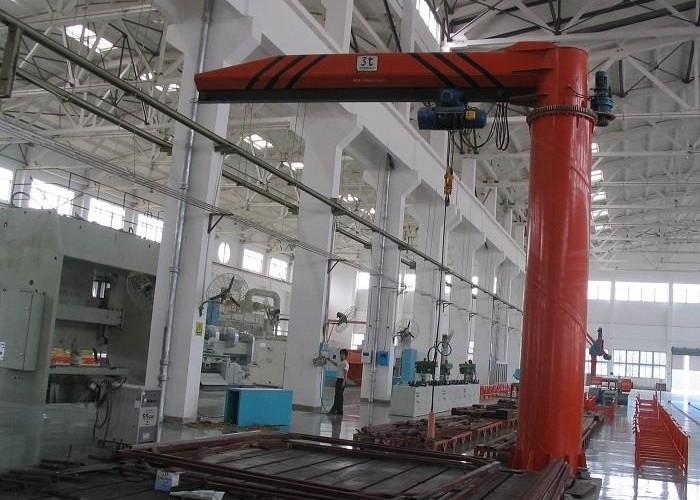

Jib Crane Details:
