125Kg-5000Kg Fixed Column Mounted Jib Crane 360 Degree Rotation

125Kg-5000Kg Fixed Column Mounted Jib Crane 360 Degree Rotation

  • 125Kg-5000Kg Fixed Column Mounted Jib Crane 360 Degree Rotation
  • 125Kg-5000Kg Fixed Column Mounted Jib Crane 360 Degree Rotation
125Kg-5000Kg Fixed Column Mounted Jib Crane 360 Degree Rotation
Product Details:
Place of Origin: CHINA
Brand Name: SANTO
Certification: ISO, CE
Model Number: BXB, BZZ, BXD, BXN, BZD, BZN
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD3000-5000/set
Packaging Details: Electrical and other parts packed by high quality plywood crate, steel beams packed by plastic films or plastic woven cloth
Delivery Time: 15-30 working days
Payment Terms: L/C, T/T
Supply Ability: 5000set/year
Contact Now
Detailed Product Description
Condition: New Warranty: 12 Months
Arm Outreach: 3-20m After-sales Service Provided: Engineers Available To Service Machinery Overseas,Field Installation,commissioning And Training,Online Support,Field Maintenance And Repair Service
Feature: Jib Crane Max. Lifting Height: 6m~30m
Rated Lifting Moment: Different Max. Lifting Load: 20t
Product Name: Jib Crane Application: Workshop,Warehouse,plants,factory,warehouse And So On
Control Method: Wireless Remote Control,pendant Control Rated Loading Capacity: 1-20t
Color: Yellow, Red, Or As Requirments Power Source: 3 Phase 380V 50hz Or Be Customized
Power Supply: 220V~480V 50/60Hz Crane Feature: Easy Operated Jib Crane
Type: Slewing Arm Jib Crane, Light Crane System Lifting Mechanism: Electric Hoist, Chain Hoist, Chain Block, Etc
Lifting Speed: 0~8m/min Main Electrical Parts: Chint, Or As Requirments Siemens, Schneider
High Light:

5000Kg Column Mounted Jib Crane


125Kg Column Mounted Jib Crane


fixed jib crane 360 Degree Rotation

Fixed - Column Jib Crane , Column - Type Jib Crane Lifting Capacity 125Kg - 5000Kg


Jib Crane Introduction:


The working strength of the jib crane is light. The crane is composed of a column, a slewing arm slewing drive device and an electric hoist. The lower end of the column is fixed on the concrete foundation by anchor bolts, and the cycloidal pinwheel reduction device drives the jib to rotate. The swing arm I-beam runs in a straight line from left to right, and lifts heavy objects. The jib of the crane is a hollow steel structure, which is light in weight, large in span, large in lifting capacity, economical and durable. The built-in traveling jib crane MODE type traveling mechanism adopts special engineering plastic traveling wheels with rolling bearings, which has low friction force and light travel; small structure size is especially beneficial to improve the hook stroke.


Jib Crane Features:


1. The Jib Crane is suitable to work in the dock, warehouse, workshop etc fixed working conditions, it can work within the 360 degrees to lift, move and materials handling.

2. This type machine is composed by the vertical shaft, revolving arm, rotating shaft, hoist etc, the bottom of the vertical shaft is fixed on the concrete base.

3. This type machine with advantages of the simple structure, operate convenience, turning agile, wide working conditions


Jib Crane Specification:


Type BZ0.25 BZ0.5 BZ1 BZ2 BZ3 BZ5 BZ8 BZ10
Lift Capacity (t) 0.25 0.5 1 2 3 5 8 10
Max. Lift Height(m) 3 3 3 3 4 4 6 8
Slew Angle(0) 360 360 360 360 360 360 360 360
Lift Speed (m/min) Normal 4;10;8 5;10;8 8 8 8 8 8 8
Slow 1;2.5;0.8 1.25;2.5 0.8 0.8 0.8 0.8 0.8 0.8
Level Travel Speed (m/min) 20 20 20 20 20 20 20 20
Slewing Speed (r/min) 0.7 0.7 0.7 0.7 0.6 0.6 0.6 0.6
Electric hoist wire rope electric hoist or chain electric hoist
Power supply 220~440V,50/60HZ,3phase or customized
Control mode Pendent pushbutton control or remote control
Above parameter just for your reference,jib crane can be customized design Max.20t according to your demands.


Note: sers can also select double speed, single speed chain and wire rope hoist.


Jib Crane Advantages:

  • Jib cranes could be used everywhere, from small shops to big factory produce line, or every industries. The features of jib crane are easy to install, use and operation.
  • Compared with wall mounted and wall travelling jib crane, free standing jib cranes can reach to the higher capacities, longer spans and greater rotation range. Because of the favorable structure, this kind jib crane can be custom-modified to meet the requirement of your special applications.The only restriction of installation is that pressure of the soil free standing jib crane founded on must be up to 2500 lbs per square foot.
  • Easy to install and relocate. Nearly can be installed in anyplace if needed.
  • Because of the its good adaptability, it can adapt with your changing needs with a little modify.
  • Some kinds of this special cranes require no floor space while others can maximize the lifting height. So , with them ,the utility rate of space is unrivaled.
  • The structure of this kind crane is small and flexible. It can work as a supplement for a gantry or overhead crane . By working together, the productivity of your workshop can ultimately increase to the maximum .
  • If the material you need to move is light and small, launch a high-power overhead or gantry crane is a great waste. Under those circumstances, low-power crane hand goods more effectivel

Pictures Show:

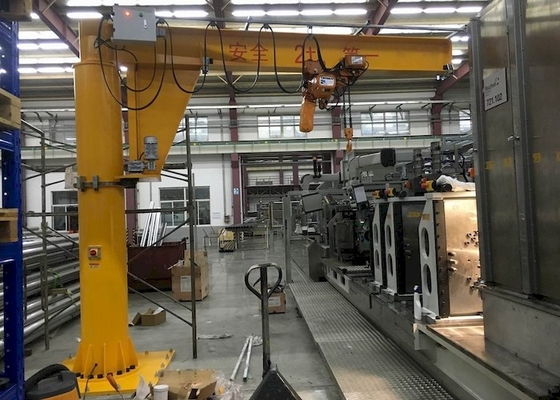

125Kg-5000Kg Fixed Column Mounted Jib Crane 360 Degree Rotation 0

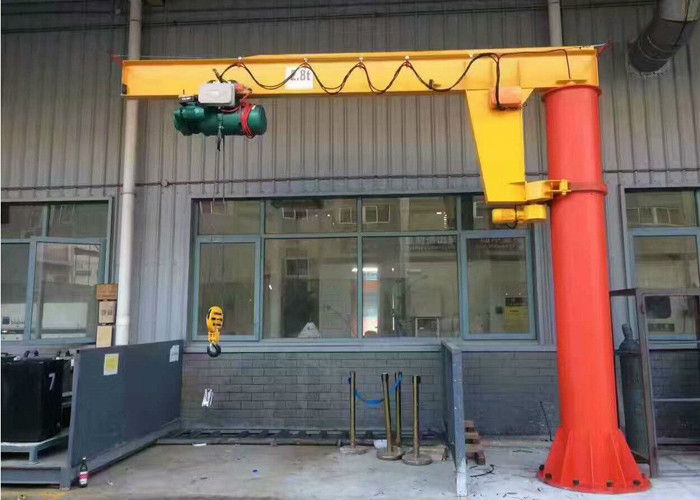

125Kg-5000Kg Fixed Column Mounted Jib Crane 360 Degree Rotation 1

125Kg-5000Kg Fixed Column Mounted Jib Crane 360 Degree Rotation 2
