| Place of Origin: | China |
| Brand Name: | Santo Crane |
| Certification: | ISO CE |
| Model Number: | QD |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | The normal package for crane is waterproof cloth, wooden box for hoist and other accessories. |
| Delivery Time: | 20~45 WORKING DAYS |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1500SET/YEAR |
| Product Name: | Double Girder Bridge Crane | Material: | Q235B Q345C |
|---|---|---|---|
| Span: | 7-35m | Applicable Industries: | Manufacturing Plant |
| Condition: | New | Working Duty: | A3-A5 |
| Control Method: | Wireless Remote Control/ Cabin | Color: | Yellow/ Red / Blue |
| High Light: | Strong Bearing Double Girder Overhead Crane,Double Girder Overhead Crane QD,QD Metallurgical Workshop Bridge Crane |
||
Strong Bearing Capacity Double Girder Bridge Crane For Metallurgical Workshop
Production Information:

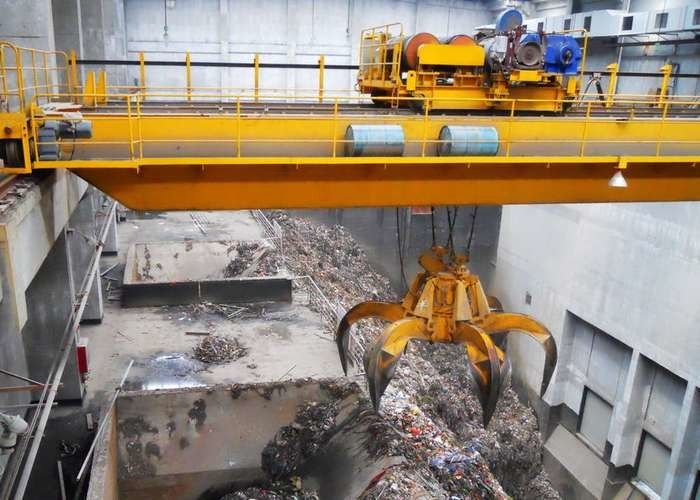

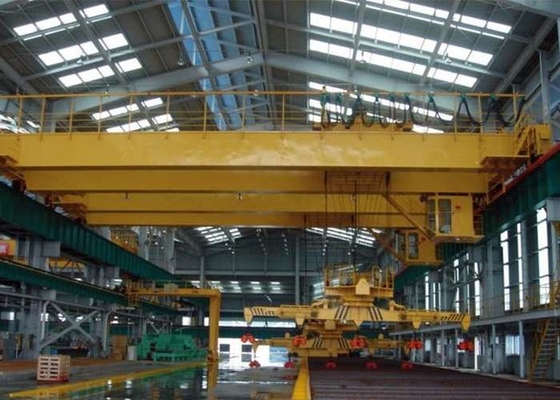

The double-girder overhead crane is composed of straight rail, crane main beam, lifting trolley, power transmission system and electrical control system, and is especially suitable for material conveying in the plane range with large suspension and large lifting capacity.
The double-girder bridge crane has strong bearing capacity, large span, good overall stability and many varieties, but its own quality is larger than that of the single-girder gantry crane with the same lifting capacity, and the cost is also higher. According to the structure of the main beam, it can be divided into two forms: box beam and truss. Generally, a box-shaped structure is used.
Design advantage:
1. The double-girder bridge crane is the first in the design of honeycomb girder, which has the characteristics of light weight, heavy load and strong wind resistance.
2. The unique steel pin connection is not only firm and reliable, but also the assembly time is short.
3. The flexible tie rod outrigger can be disassembled into a single piece for site steering, which is convenient for transportation.
4. The smallest installed capacity can solve the difficulty of electricity consumption in the on-site construction.
Technical parameters:
|
Loading capacity |
5 ~ 500t |
|
Lifting height |
3 ~ 30 m or customized |
|
Lifting speed |
Single speed: 1 ~ 12.5 m/min; or customized |
|
Span |
3 ~ 30 m or customized |
|
Lifting mechanism |
Winch trolley |
|
Working class |
A5 ~ A8 |
|
Working temperature |
-20 ~ 40 ℃ |
|
Power supply |
AC-3Phase-220//230380/400/415/440V-50/60Hz |
|
Control voltage |
DC-36 / 48V |
|
Motor protection class |
IP54 IP55 IP65 |
|
Control way |
Ground handle control(Push button),wireless remote control,cabnient control |
|
Safety device |
Buffer,current overload protection,overload device,power failure protection |
|
Painting color |
Yellow,Red or Customzied |
Product Application:
Twin Trolley Overhead Crane is mainly consists of strong bridge beams, two trolley-traveling mechanism, crane traveling mechanism and electrical appliances The two trolleys on the crane beam could work simultaneously or separately as your demand, it's more efficient and convenient. With two trolleys that works simultaneously or separately, this crane is suitable to lift long materials (wood, paper tube, pipe and bar) in workshop or outdoor stores in factories and mines.
Safety Device:
1. Overload protection
2. Main lifting motor with thermal protection
3. Hooks with latch
4. Rubber buffers
5. Protective earthing
6. Crane switch and travel end switch
7. Emergency switch can stop all movement when any dangerous happened
8. Sub-assemblies characteristic are tested before assembly
9. All cranes must be pre-assembled and tested before leaving factory and offer the certification of test.
