| Place of Origin: | CHINA |
| Brand Name: | SANTO |
| Certification: | ISO, CE |
| Model Number: | QD, QDY, YZ, YZS, QL, QZ, QC |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Electrical and other parts packed by high quality plywood crate, steel beams packed by plastic films or plastic woven cloth |
| Delivery Time: | 35-45 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 6000set/year |
| Condition: | New | Warranty: | 12 Months |
|---|---|---|---|
| Span: | 7-35m | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Field Installation,commissioning And Training,Online Support,Field Maintenance And Repair Service |
| Feature: | Electric Overhead Travelling Bridge Crane | Max. Lifting Height: | 6m~30m |
| Rated Lifting Moment: | Different | Max. Lifting Load: | 800t |
| Product Name: | Rail Mounted Gantry Crane | Application: | Workshop,Warehouse,plants,factory,warehouse And So On |
| Control Method: | Wireless Remote Control,Ground Control,pendant Control | Rated Loading Capacity: | 1-800t |
| Color: | Yellow, Red, Or As Requirments | Power Source: | 3 Phase 380V 50hz Or Be Customized |
| Power Supply: | 220V~480V 50/60Hz | Crane Feature: | Easy Operated Double Girder Overhead Crane |
| Type: | Heavy Duty Double Girder Overhead Crane, EOT Crane | Lifting Mechanism: | Open Winch Trolley |
| Lifting Speed: | Standard Or As Requirement | Main Electrical Parts: | Chint, Or As Requirments Siemens, Schneider |
| High Light: | 32/5T Double Girder Overhead Crane 6m,Double Girder Overhead Crane 30m,Customized 10T Overhead Crane |
||
6m~30m Lifting Height Electric Double Girder Overhead Crane For Manufacturing
Information:
The double-girder overhead crane is composed of straight rail, crane main beam, lifting trolley, power transmission system and electrical control system, and is especially suitable for material transportation in the plane range with large suspension and large lifting capacity.
The double-girder bridge crane has strong bearing capacity, large span, good overall stability and many varieties, but its own quality is larger than that of the single-girder gantry crane with the same lifting capacity, and the cost is also higher. According to the structure of the main beam, it can be divided into two forms: box beam and truss. Generally, a box-shaped structure is used.
Design advantages:
1. The double-girder bridge crane is the first in the design of honeycomb girder, which has the characteristics of light weight, large load and strong wind resistance.
2. The unique steel pin connection is not only firm and reliable, but also the assembly time is short.
3. Flexible rod outriggers can be disassembled into a single piece for construction site steering, which is convenient for transportation.
4. The smallest installed capacity solves the difficulty of using electricity in field construction.
Technical Specification:
|
Lifting Capacity |
t |
5 |
10 |
16/3.2 |
20/5 |
32/5 |
50/10 |
|||||||||
|
Working Duty |
ISO |
A3-A8 |
||||||||||||||
|
Span |
m |
7-35, customized |
||||||||||||||
|
Lifting Height |
Main hook |
m |
10 |
11 |
10 |
11 |
10 |
11 |
10 |
11 |
10 |
11 |
10 |
12 |
||
|
Aux. hook |
10.275,11.275 |
10.446,11.446 |
10.73 |
11.73 |
10.918 |
12.918 |
||||||||||
|
Speed |
Lifting |
Main |
m/min |
11.3 |
8.5 |
7.9 |
7.2 |
7.5 |
5.9 |
|||||||
|
Aux. |
14.6 |
15.4 |
15.4 |
10.4 |
||||||||||||
|
Trolley traveling |
37.3 |
35.6 |
36.6 |
37 |
36 |
|||||||||||
|
Crane traveling |
37.3 |
39.7 |
40.1 |
39.7 |
39.7 |
37.3 |
39.7 |
39.4 |
38.5 |
|||||||
|
Recommended Tail |
|
43kg/m |
43kg/m or QU70 |
|||||||||||||
|
Power Supply |
|
3-Phase 380V 50HZ, or as clients' requirement |
||||||||||||||
Application:
1. Bridge-type double-girder cranes are widely used in factories, warehouses, stockyards and other occasions to lift goods. It is forbidden to use in flammable, explosive and corrosive medium environments. There are two types of operation on the ground and in the control room. There are two types of operation room, open type and closed type, which can be divided into two types of left or right installation according to the actual situation.
2. Bridge-type double-girder cranes are widely used in workshops, warehouses, stockyards, etc. It has the advantages of compact size, low building headroom, light weight and small wheel pressure.

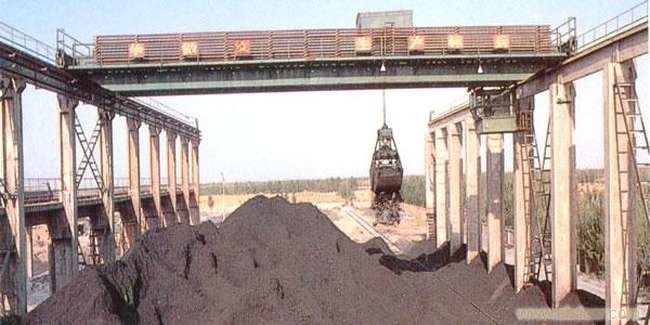

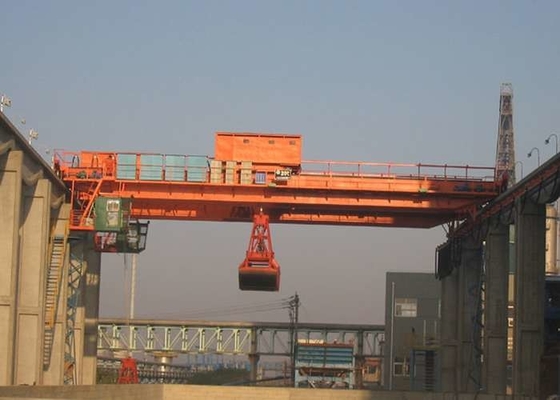

Crane Detail:
Delivery:
