Place of Origin: | CHINA |
Brand Name: | SANTO |
Certification: | ISO, CE |
Model Number: | QD, QDY, YZ, YZS, QL, QZ, QC |
Minimum Order Quantity: | 1set |
---|---|
Price: | Negotiable |
Packaging Details: | Electrical and other parts packed by high quality plywood crate, steel beams packed by plastic films or plastic woven cloth |
Delivery Time: | 35-45 working days |
Payment Terms: | L/C, T/T |
Supply Ability: | 6000set/year |
Product Name: | Electric Double Beam Overhead Crane | Condition: | New |
---|---|---|---|
Span: | 7-35m | Feature: | Electric Overhead Travelling Bridge Crane |
Max. Lifting Height: | 6m~30m | Rated Lifting Moment: | Different |
Max. Lifting Load: | 800t | Application: | Workshop,Warehouse,plants,factory,warehouse And So On |
Control Method: | Wireless Remote Control,Ground Control,pendant Control | Rated Loading Capacity: | 1-800t |
Color: | Yellow, Red, Or As Requirments | Power Source: | 3 Phase 380V 50hz Or Be Customized |
Power Supply: | 220V~480V 50/60Hz | Crane Feature: | Easy Operated Double Girder Overhead Crane |
Lifting Mechanism: | Open Winch Trolley | Main Electrical Parts: | Chint, Or As Requirments Siemens, Schneider |
High Light: | 2 Beam Heavy Duty Overhead Crane,500Ton heavy duty overhead crane,Foundries 500T double hook crane |

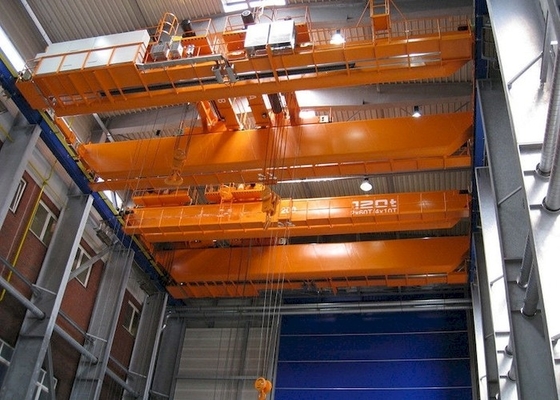

Heavy Duty 500 Ton Electric Double Beam Overhead Crane , Bridge Crane With Double Hooks
Description:
Overhead cranes can also be called bridge cranes.
Using prefabricated and custom components based on a modular design, we are able to offer a wide range of highly reliable cranes ranging from 1 ton to 550 ton SWL, with single, double or underslung structures.
Our range of standard cranes uses our ultra-efficient chain hoists, highly advanced wire rope hoists or combined open winch hoists with competitive prices and very fast lead times.
Advantages:
1. Customized design overhead crane;
2. Support OEM / ODM for our clients;
3. Steel material adopt high quality carbon steel Q235 or Q345B;
4. Easy to install,operate,maintain;
5. Crane drive: IP54 or IP44,level F insulation;
6. With senior technical engineer team and perfect sales service.
Technical Specification:
Lifting Capacity | t | 5 | 10 | 16/3.2 | 20/5 | 32/5 | 50/10 | |||||||||
Working Duty | ISO | A3-A8 | ||||||||||||||
Span | m | 7-35, customized | ||||||||||||||
Lifting Height | Main hook | m | 10 | 11 | 10 | 11 | 10 | 11 | 10 | 11 | 10 | 11 | 10 | 12 | ||
Aux. hook | 10.275,11.275 | 10.446,11.446 | 10.73 | 11.73 | 10.918 | 12.918 | ||||||||||
Speed | Lifting | Main | m/min | 11.3 | 8.5 | 7.9 | 7.2 | 7.5 | 5.9 | |||||||
Aux. | 14.6 | 15.4 | 15.4 | 10.4 | ||||||||||||
Trolley traveling | 37.3 | 35.6 | 36.6 | 37 | 36 | |||||||||||
Crane traveling | 37.3 | 39.7 | 40.1 | 39.7 | 39.7 | 37.3 | 39.7 | 39.4 | 38.5 | |||||||
Recommended Tail | 43kg/m | 43kg/m or QU70 | ||||||||||||||
Power Supply | 3-Phase 380V 50HZ, or as clients' requirement |
Application:
Serving many types of industries has given Santo Crane a broad list of experiences. | |
|
|
Delivery:
Company information:
Henan Santo Crane Co., Ltd. is well-known for professional manufacturer and service-supplier of new high-tech gantry crane, overhead crane, electric hoist, portal crane, steel workshop. Our products are widely used in energy, metallurgy, transportation, heavy machinery, Nuclear power, hydropower, aviation and military projects a series of environment-friendly machinery. All of the products can be customized as your demand.
The leading products of Santo widely used in Machinery, Metallurgy, Electric Power, Railway, Aerospace , Port, Petroleum, Petrochemical, etc, our products are serving the national key projects such as: the South-to-North Water Transfer Project, the West-East National Gas Transmission, the Three Gorges Hydropower Station, Jiuquan Satellite Lunching Center, Qinshan Nuclear Power Station, Hangzhou Bay Bridge, Beijing Olympic Games and so on, accelerate successfully the launch of Spacecraft Shenzhou-10 and Chang’e-3,our products have been exported to more than 69 countries like America, Japan, Russia, Korea, etc. In 2013 the annual sales revenue reached 6.669 billion, and the Overhead Traveling Crane and the Gantry Crane continue to hold the first position around the whole country.
