5 Ton To 550 Ton M8 Double Girder Overhead Crane Pendant Control

Product Details:

Place of Origin:	CHINA
Brand Name:	SANTO
Certification:	ISO, CE
Model Number:	QD, QDY, YZ, YZS, QL, QZ, QC

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	Negotiable
Packaging Details:	Electrical and other parts packed by high quality plywood crate, steel beams packed by plastic films or plastic woven cloth
Delivery Time:	35-45 working days
Payment Terms:	L/C, T/T
Supply Ability:	6000set/year

Contact Now

Detailed Product Description

Name:	Double Girder Bridge Crane	Type:	Heavy Duty Double Girder Overhead Crane, EOT Crane
Span:	7-35m	Feature:	Electric Overhead Travelling Bridge Crane
Max. Lifting Height:	6m~30m	Max. Lifting Load:	800t
Rated Loading Capacity:	1-800t	Lifting Speed:	As Requirement
Lifting Mechanism:	Open Winch Trolley	Main Electrical Parts:	Chint, Or As Requirments Siemens, Schneider
Control Method:	Wireless Remote Control,Ground Control,pendant Control	After-sales Service Provided:	Engineers Available To Service Machinery Overseas,Field Installation,commissioning And Training,Online Support,Field Maintenance And Repair Service
Application:	Workshop,Warehouse,plants,factory,warehouse And So On	Color:	As Requirments
High Light:	M8 Double Girder Overhead Crane , 550T Double Girder Overhead Crane , 5 Ton Overhead Crane Pendant Control

Large Span 5 Ton Up To 550 Ton Double Girder Overhead Crane With Safety Devices

Product Description:

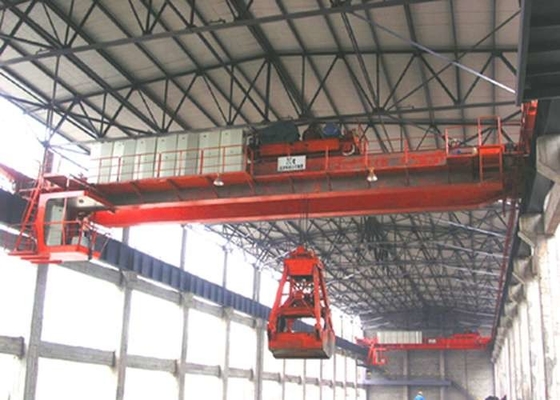

Double girder overhead crane is for heavy duty industry. The Max. working duty is M8. According to application, the double girder overhead crane can be design with hook, magnet or grab.

Features:

All the standards which required for the crane is the Chinese national standard, and we also passed the CE, ISO, and BV certificates .The quality is great.

Appearance: compact size, building headroom low light self-weight.
Using environment: mechanical processing workshop, metallurgical plant auxiliary workshops, warehouses, the field and power stations of transport, assembly and maintenance and handling.
Temperature: - 25°c ~ 40°c
Bridge crane working duty : A3 ~ A8

Specification:

QSWL Gn rated lifting capacity				t	32/10 (we can supply up to 550 ton)
Opertional method				m/min	Remote or Pendant control/Cabin Control
Speed	Main.hook lifting				3(0.3/3)
	Aux.hook lifting				7(7/0.7)
	Cross travelling				20
	Long travelling		Remote or Pendant control		20/30
			Cabin Control		30/40
Motor	Main.hook lifting			kw	ZDX62-6/18.5,(ZDS2.2/18.5)
	Aux.hook lifting				ZD151-4/13(ZDS1-1.5/13)
	Cross travelling				ZDY123-4/2.2x2
	Long travelling		Remote or Pendant control		ZDY123-4/2.2x2		ZDY131-4/3x2
			Cabin Control		ZDR112L2-4/3.0x2			ZDR125-4/4.6x2
Electric Hoist					WH164;CD1(MD1)
Lifting Height				m	9;12;16;24
Duty Class					A3--A5
Power source					3-phase A.C. 50Hz;380V
Track recommended					43KG/M
Span				m	7.5	10.5	13.5	16.5	19.5	22.5	25.5
Max.wheel presure				KN	167	184	196	206	215	224	233
Crane weight		Remote or Pendant control		kg	12530	14660	16360	18870	21650	24260	27060
		Cabin Control		kg	13430	15560	17260	19770	22550	25160	27960
Basic dimensions		B		mm	5070--5960			5572--6222
		W		mm	3600~4500
		Wc		mm	2200-2900
		K		mm	1600~2500
		H		mm	1900
		H1		mm	765
		H2		mm	170	270	370	470	570	670	770
		H3		mm	2395	2495	2595	2695	2795	2895	2995
		H4		mm	-700
		b		mm	230
		S1		mm	1100
		S2		mm	1600

Design Standard:

GB/T 3811-2008	Design rules for cranes
GB6067.1-2010	Crane machinery safety procedures
GB/T14405-2011	General overhead crane
GB/T104406-2011	General gantry cranes
GB/T10183-2005	Tolerance of Overhead crane and gantry crane manufacuturing and rails installation
GB/T5905-1986	Crane testing rules and process
JB/T4315-1997	Crane Electrical control equipment
Gb8918-2006	Wire rope for cranes
GB/T700-2006	Carbon structural steel
GB/T1591-2008	Low-Alloy High-Tensile Structural Steel
Jb928-1994	The standard of Radiographic inspection for weld joint
GB11345-1989	Manual ultrasonic testing method

Sketch & Parameters:

20 ton 30 ton 50 ton 60 ton 100 ton up to 500 ton Electric Double Beam Girder Overhead Bridge Crane with Double hooks

Installation:

20 ton 30 ton 50 ton 60 ton 100 ton up to 500 ton Electric Double Beam Girder Overhead Bridge Crane with Double hooks

Customer Visiting:

20 ton 30 ton 50 ton 60 ton 100 ton up to 500 ton Electric Double Beam Girder Overhead Bridge Crane with Double hooks

Free inquiry:

In order to make a very quick offer and saving your waiting time, It's better to fill the information below. Copy and send us the information together with the enquiry.

20 ton 30 ton 50 ton 60 ton 100 ton up to 500 ton Electric Double Beam Girder Overhead Bridge Crane with Double hooks

Load Capacity, ton:	(_______)
Span, S, m:	(_______)
Lift Height, H, m:	(_______)
Voltage:	(_______)
Duty Class:	(_______)
? Hours per day:	(_______)
Control way:	(_______)
Lift Speed:	(_______)
Cross & Long travel speed:	(_______)
Rail supply needed	(_______)
Power supply system needed	(_______)
Your nearest port:	(_______)

{Tips: 5 ton, 10 ton, 16 ton, 20 ton, 30 ton, 40 ton, 50 ton up to 550 ton}

{Tips: 6m ~40m}

{Tips: 380V, 50Hz, AC, 3-phase or please note}

{Tips: A5, A3, If you don't know, please fill the follow}

{Tips: Remote control, cabin control or pendent control }

{Tips: Single speed, double speed, or stepless speed}

{Tips: Single speed or stepless speed}

{Tips: If yes, please note the Long travel length}

{Tips: We quote CIF price need the port. FOB price please note FOB}

If your workshop roof is very low, Its better to send us a drawing, a sketch or show us datas and then our Engineer can work out a full suitable solution just for yours.

Looking forward your kindly inquiry and hope to help your strong business in near future!
