Remote Control Double Girder Overhead Travelling Crane 15 Ton 20 Ton 30 Ton

Remote Control Double Girder Overhead Travelling Crane 15 Ton 20 Ton 30 Ton

  • Remote Control Double Girder Overhead Travelling Crane 15 Ton 20 Ton 30 Ton
  • Remote Control Double Girder Overhead Travelling Crane 15 Ton 20 Ton 30 Ton
Remote Control Double Girder Overhead Travelling Crane 15 Ton 20 Ton 30 Ton
Product Details:
Place of Origin: CHINA
Brand Name: SANTO
Certification: ISO, CE
Model Number: LH
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD5000-30000/set
Packaging Details: Electrical and other parts packed by high quality plywood crate, steel beams packed by plastic films or plastic woven cloth
Delivery Time: 35-40 working days
Payment Terms: L/C, T/T
Supply Ability: 5000set/year
Contact Now
Detailed Product Description
Keyworda: EOT CRANE Condition: New
Feature: Electric Overhead Travelling Bridge Crane Main Electrical Parts: Chint, Or As Requirments Siemens, Schneider
Span: 7-35m Rated Loading Capacity: 1-50t
Lifting Mechanism: Electric Hoist With Crabs Trolley Max. Lifting Load: 50t
Max. Lifting Height: 6m~30m Lifting Speed: Standard Or As Requirement
Control Method: Wireless Remote Control,Ground Control,pendant Control Power Supply: 220V~480V 50/60Hz Or Be Customized
Application: Workshop,Warehouse,plants,factory,warehouse And So On After-sales Service Provided: Engineers Available To Service Machinery Overseas,Field Installation,commissioning And Training,Online Support,Field Maintenance And Repair Service
High Light:

Double Girder Overhead Travelling Crane 15T

,

43kg/m overhead crane 20 ton

,

Remote Control Crane 15 Ton

Remote Control Double Girder Crane 5 Ton 10 Ton 15 Ton 20 Ton 30 Ton



Product introduction:



Overhead Cranes can also be referred to as Bridge Cranes.

Using pre-engineered and bespoke components based on modular designs, we are able to deliver a large range of highly reliable cranes with capacities from 1 ton up to 550 ton SWL with single girder, double girder or underhung structures.

Our standard crane range uses our super efficient chain hoist, highly advanced wire rope hoist or built-up open winch hoist with competitive prices and very quick delivery times.



Optional Features:


Weight overload protection device
Emergency stop system
Over current Protection, Short-circuit Protection
Phase sequence protection
Zero position protection, No-Voltage protection, convenient and simple operation.
Protective earth conductor is fitted as standard
Voltage lower protection system
Current overload protection system
High protection level IP44,IP54,IP55
Long and cross travel limit switch
Anti-falling protection of trolley and crane prevents from accidental falling
High quality long time bearing polyurethane materials buffer fixed at the end of trolley travelling and crane travelling to prevent over traveling
Safety hook latch used for avoiding the lifted material out off from the hook
Audible and visual alarm device to inform the person stay near by the travelling crane
Rain Cover for lifting mechanism of outdoor cranes, electric cabinet and driving mechanism



Specification:



Load capacity(t) 3 5 10 16 20 20/5 32/5
Span(m) 10.5~31.5
Max Lifting height(m) Main Hook 6~30
Auxiliary Hook 6~30
Working class A3 A4
Speed(m/min) Main Hoisting 8,8/0.8 8,8/0.8 7,7/0.7 3.5,3.5/0.35 3.5,3.5/0.35 3.5,3.5/0.35 2.4,2.4/0.24
Auxiliary Lifting           8,8/0.8 8,8/0.8
Trolley Cross Traveling 20,2~20
Crane Long Traveling 30,3~30
Motor Type Squirrel cage motor
Motor (Kw) Main Hoisting 4.5 7.5 13 13 18.5 18.5 18.5
Auxiliary Lifting           7.5 7.5
Trolley Cross Traveling 2*0.4, 2*0.8, 2*1.5
Crane Long Traveling 2*0.8, 2*1.5, 2*2.2
Control mode Pendent control, Remote control, Cabin control
Recommended Rail model 24kgs/m 30kgs/m 38kgs/m 43kg/m or P50
Power source   3Ph A.C 50Hz 380V, or as requirements


Safety feature:


Weight overload protection device, top quality long time bearing polyurethane materials buffer, crane traveling limit switch, voltage lower protection functions, emergency stop system, current overload protection system and so on!



Details:

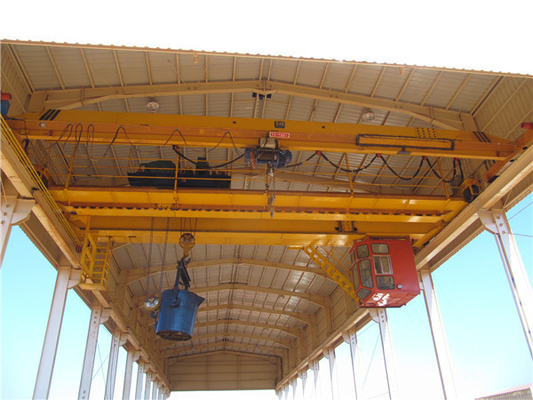

Remote Control Double Girder Overhead Travelling Crane 15 Ton 20 Ton 30 Ton 0

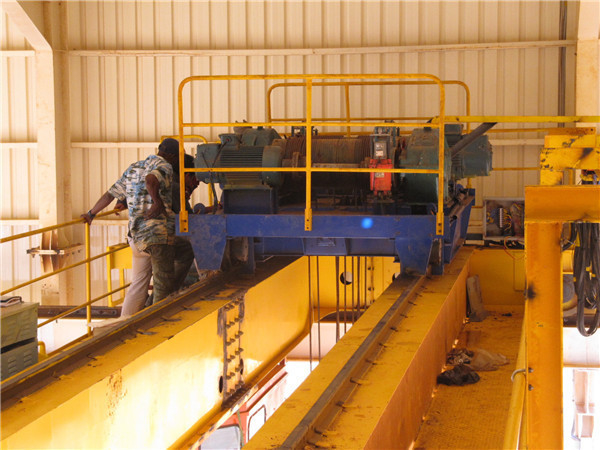

Remote Control Double Girder Overhead Travelling Crane 15 Ton 20 Ton 30 Ton 1

Remote Control Double Girder Overhead Travelling Crane 15 Ton 20 Ton 30 Ton 2



Delivery:



Electrical and other parts packed by high quality plywood crate, steel beams packed by plastic films or plastic woven cloth.

Remote Control Double Girder Overhead Travelling Crane 15 Ton 20 Ton 30 Ton 3
