2T 3T 5T 10T Single Girder Overhead Crane P24 P38 Rail Workshop Overhead Crane

 Electric Single Beam Crane Top Running Industrial Workshop Overhead Crane Hoist Load Capacity 2 Ton 3 Ton 5 Ton 10 Ton

Description:

Single girder overhead crane is a light duty lifting equipment,used along with electric hoists.It consists of one girder beam supported on each side by an end carriage. The electric hoist (electric wire rope hoist or electric chain hoist) are underhung—meaning they run on the bottom flange of the single girder.

1. One-time Forming box girder
2. Whole length CNC cutting for complete web plate
3. High quality automatic welding and NDT inspection
4. Shot-blasting Sa2.5 for complete girder after welding
5. High tension bolts mounting between girder and legs
6. All hoist and crane movements are independent and can be run simultaneously

Feature:

1. Rigid box-typed main girder;
2. Shot blasting for the whole body after welding and releasing internal stresses;
3. Painting epoxy zinc-rich primer, and the thickness of oil film is 140μm;
4. Main girder and end girders are connected by 10.9 degree high-strength bolts;
5. Driven by electric reducer or traditional LD drive system;
6. Running smoothly, brake efficiently, long service life.


Application:

Single girder overhead cranes are often the cost-effective lifting solution for various applications and industries. Manufacturing workshop, metallurgy, petroleum,petrochemicals, ports, railway, civil aviation, power station, food industry, paper making, building material, warehouses and other material handling application.


Standard Specification:

Standard specification just for your reference, our crane can be customized design based on your requirements.

Advantage:

■ Bridge girder: welded box girder construction, high strength.
■ End truck: welded box girder construction, torsionally rigid.
■ Crane wheels: Surface hardened steel wheels, highly wear-resistant.
■ Connections between the cross girder and end trucks – manufactured to precise machined tolerances for minimum wear.
■ Optional hoist: Electric wire rope hoist Or Low headroom hoist for a higher lifting height.
■ Less expensive due to a simpler trolley design, reduced freight costs, simplified and faster installation, and less material for the bridge and runway beams.
■ Lower loads on the building structure or foundations due to a reduced deadweight.
■ Better hook approach for both trolley travel and bridge travel.
■ Easier to install, service, and maintain.
■ Ideal for workshops, warehouses, material yards, and manufacturing and production facilities.
■ Heavy duty slipring motor, Or Sq. cage motor with VVVF, IP54 or IP44, insulation class F or H, soft starting and smooth running.

Company Information:

Santo crane mainly dealing in researching, developing and producing the lifting machinery, port machinery, construction-use tower crane, reducer, etc.
The leading products of Santo widely used in Machinery, Metallurgy, Electric Power, Railway, Aerospace , Port, Petroleum, Petrochemical, etc, our products are serving the national key projects such as: the South-to-North Water Transfer Project, the West-East National Gas Transmission, the Three Gorges Hydropower Station, Jiuquan Satellite Lunching Center, Qinshan Nuclear Power Station, Hangzhou Bay Bridge, Beijing Olympic Games and so on, accelerate successfully the launch of Spacecraft Shenzhou-10 and Chang’e-3,our products have been exported to more than 69 countries like America, Japan, Russia, Korea, etc. In 2013 the annual sales revenue reached 6.669 billion, and the Overhead Traveling Crane and the Gantry Crane continue to hold the first position around the whole country.

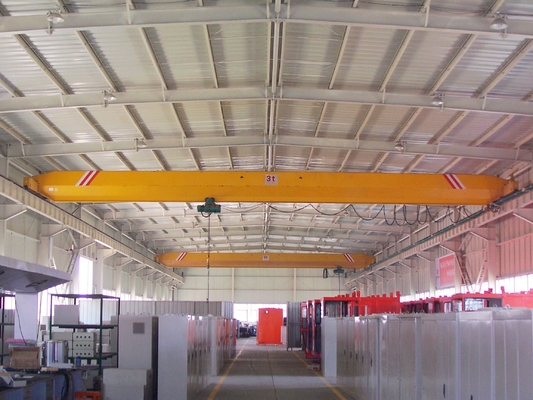

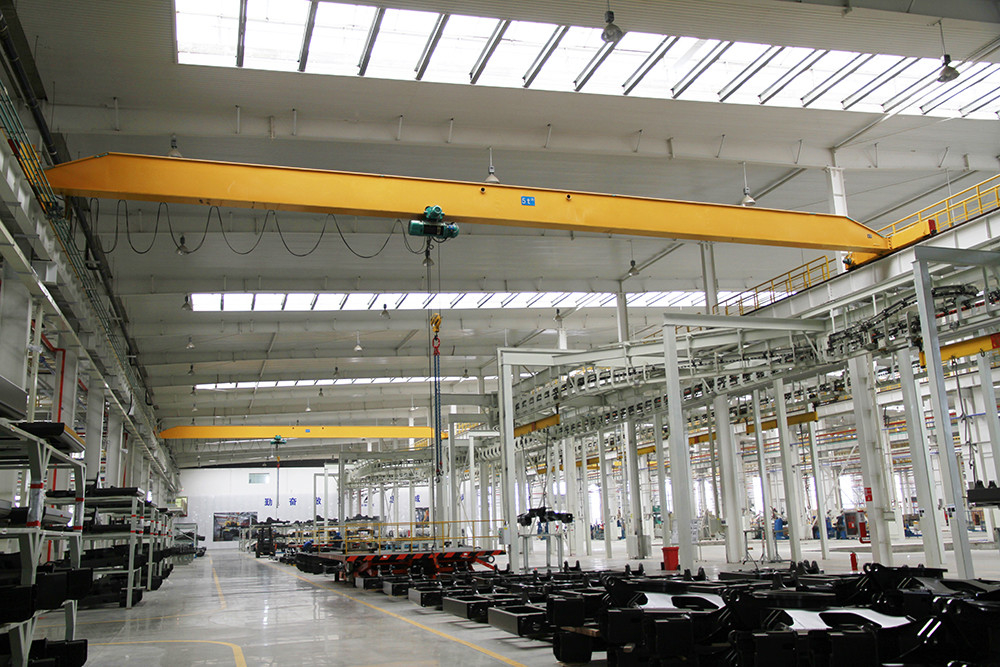

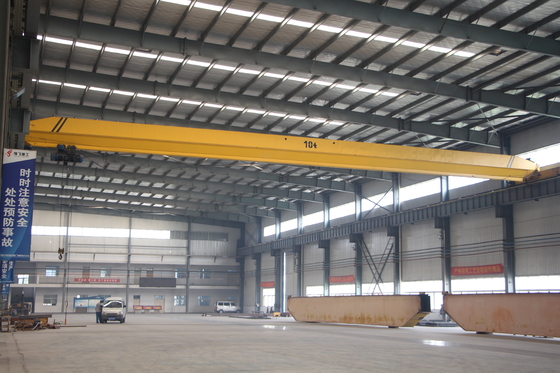

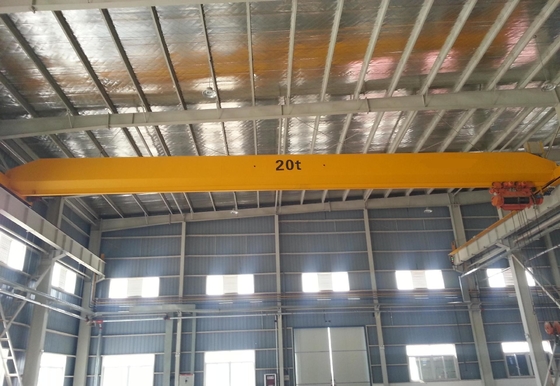

Reference Cases:


If you need this type single beam overhead crane, please tell us your request with below information:

• Capacity: 1~20t

• Span: 7.5~31.5m(Max 35m)

• Lifting height: 6,9,12,18,24,30m(Max 100m)

• Lifting speed: 0.35~8m/min(defined by Capacity)

• Traveling speed: 20/30 m/min

• Duty Group: ISO M4
