Place of Origin: | CHINA |
Brand Name: | SANTO |
Certification: | ISO, CE |
Model Number: | LD, LDE, LT, LDP, LX |
Minimum Order Quantity: | 1set |
---|---|
Price: | USD2000-10000/set |
Packaging Details: | Electrical and other parts packed by high quality plywood crate, steel beams packed by plastic films or plastic woven cloth |
Delivery Time: | 15-30 working days |
Payment Terms: | L/C, T/T |
Supply Ability: | 5000set/year |
Product Name: | Overhead Travelling Crane,Electric Single Girder 10 Ton Overhead Crane With Electric Hoist,5 Ton Single Girder Wire Rope Overhead Travelling Crane For Sale | Max. Lifting Load: | 20t |
---|---|---|---|
Span: | 7.5-31.5m | Max. Lifting Height: | 6m~30m |
Rated Lifting Moment: | Different | Application: | Warehouse |
Control Method: | Wireless Remote Control,Ground Control,pendant Control | Rated Loading Capacity: | 1-20t |
Color: | Yellow, Red, Or As Requirments | Power Source: | 3 Phase 380V 50hz Or Be Customized |
Power Supply: | 220V~480V 50/60Hz | Type: | Hoist Single Girder Bridge Crane,Single Girder Overhead Crane,10 Ton Overhead Crane |
High Light: | 1Ton Radio Remote Control Overhead Crane,10Ton wireless remote control eot crane,santo Single Beam Bridge Crane |
1 Ton 2 Ton 3 Ton 5 Ton 10 Ton Wireless Radio Remote Control Overhead Crane With Single Beam Bridge Span And Hoist
Description:

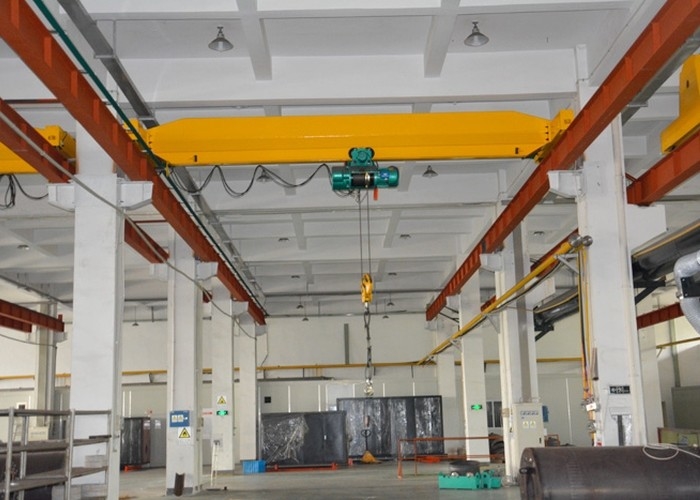

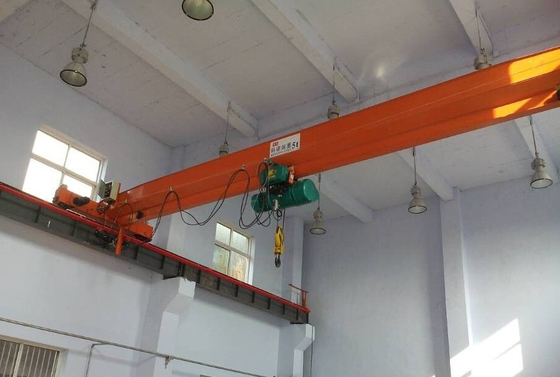

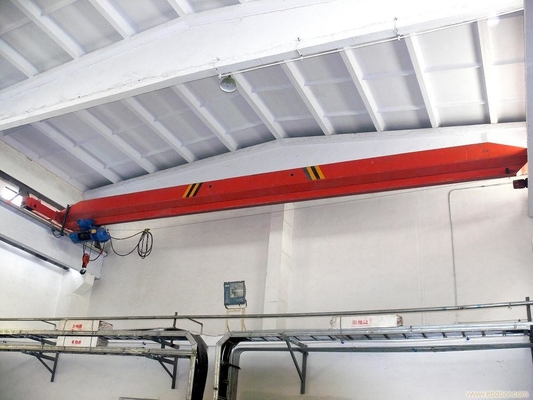

Wireless remote control overhead cranes consist single bridge beam, two rails, end trucks, two runway beams and a hoist to lift the load that runs on the bridge beam.
Wireless remote control overhead cranes are often the cost-effective lifting solution for various applications and industries. Single girder cranes use less material and are more compact and lightweight than a double girder crane, which results in a significant cost-savings in material, freight, and installation. Also, because they only require one bridge beam, these systems typically have less deadweight, meaning they can utilize lighter runway systems and tie into the existing building support structure.
Santo has the mature technology on developing and producing cranes especially heavy duty.
Besides, we also provide customized service for your additional requirements.
Application:
Single girder overhead cranes are often the cost-effective lifting solution for various applications and industries. Single girder cranes use less material and are more compact and lightweight than a double girder crane, which results in a significant cost-savings in material, freight, and installation. Also, because they only require one bridge beam, these systems typically have less deadweight, meaning they can utilize lighter runway systems and tie into the existing building support structure.
Standard Specification:
Lifting capacity | t | 1, 2, 3, 5, 10 | 16, 20 | |||||||||
Span | m | 7.5-31.5 | ||||||||||
Lifting height | m | 6, 9, 12, 18, 24, 30 | 9, 12, 18, 24, 30 | |||||||||
Traveling mechanism | Traveling speed | m/min | 20 | 30 | 45 | 60 | 75 | 20 | 30 | 45 | 60 | 75 |
Reducer ratio | 58.78 | 39.38 | 26.36 | 19.37 | 15.88 | 58.78 | 39.38 | 26.36 | 19.37 | 15.88 | ||
Motor model | ZDY21-4 | ZDY122-4 | ZDY131S-4 | |||||||||
Motor power | kw | 0.8*2 | 1.5*2 | 1.5*2 | 2.2*2 | |||||||
Motor rotation | m/min | 1380 | 1380 | |||||||||
Lifting mechanism | Electric hoist model | CD1/MD1 | CD1/MD1/HC | |||||||||
Lifting speed | m/min | 8, 8/0.8, 7, 7/0.7 | 3.5, 3.5/0.35 | |||||||||
Traveling speed | m/min | 20(30) | 20(30) | |||||||||
Motor | Taper Squirrel-cage type | Taper Squirrel-cage type | ||||||||||
Working duty | A3-A5 | |||||||||||
Power supply | 380V-50HZ, 3Phase or as your demand |
Crane Advantage:
■ Bridge girder: welded box girder construction, high strength.
■ End truck: welded box girder construction, torsionally rigid.
■ Crane wheels: Surface hardened steel wheels, highly wear-resistant.
■ Connections between the cross girder and end trucks – manufactured to precise machined tolerances for minimum wear.
■ Optional hoist: Electric wire rope hoist Or Low headroom hoist for a higher lifting height.
■ Less expensive due to a simpler trolley design, reduced freight costs, simplified and faster installation, and less material for the bridge and runway beams.
■ Lower loads on the building structure or foundations due to a reduced deadweight.
■ Better hook approach for both trolley travel and bridge travel.
■ Easier to install, service, and maintain.
■ Ideal for workshops, warehouses, material yards, and manufacturing and production facilities.
■ Heavy duty slipring motor, Or Sq. cage motor with VVVF, IP54 or IP44, insulation class F or H, soft starting and smooth running.
Company Information:
Santo crane mainly dealing in researching, developing and producing the lifting machinery, port machinery, construction-use tower crane, reducer, etc.
The leading products of Santo widely used in Machinery, Metallurgy, Electric Power, Railway, Aerospace , Port, Petroleum, Petrochemical, etc, our products are serving the national key projects such as: the South-to-North Water Transfer Project, the West-East National Gas Transmission, the Three Gorges Hydropower Station, Jiuquan Satellite Lunching Center, Qinshan Nuclear Power Station, Hangzhou Bay Bridge, Beijing Olympic Games and so on, accelerate successfully the launch of Spacecraft Shenzhou-10 and Chang’e-3,our products have been exported to more than 69 countries like America, Japan, Russia, Korea, etc. In 2013 the annual sales revenue reached 6.669 billion, and the Overhead Traveling Crane and the Gantry Crane continue to hold the first position around the whole country

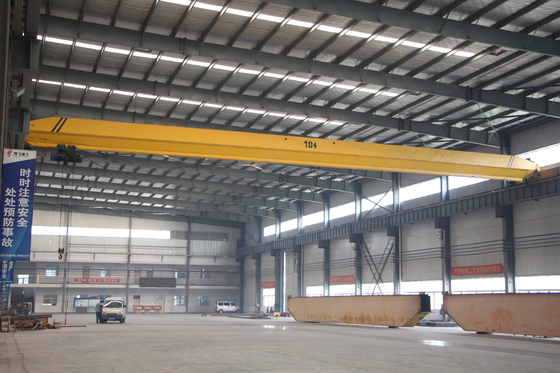

Reference Cases:
If you need this type single beam overhead crane, please tell us below details:
1. The lifting capacity that you need(ton)
2. The span that you need(The distance of wheel to wheel center)
3. The Max. lifting height from ground to hook center(m)
4. The power source standard(Voltage= V, 50/60Hz, 3phase)
