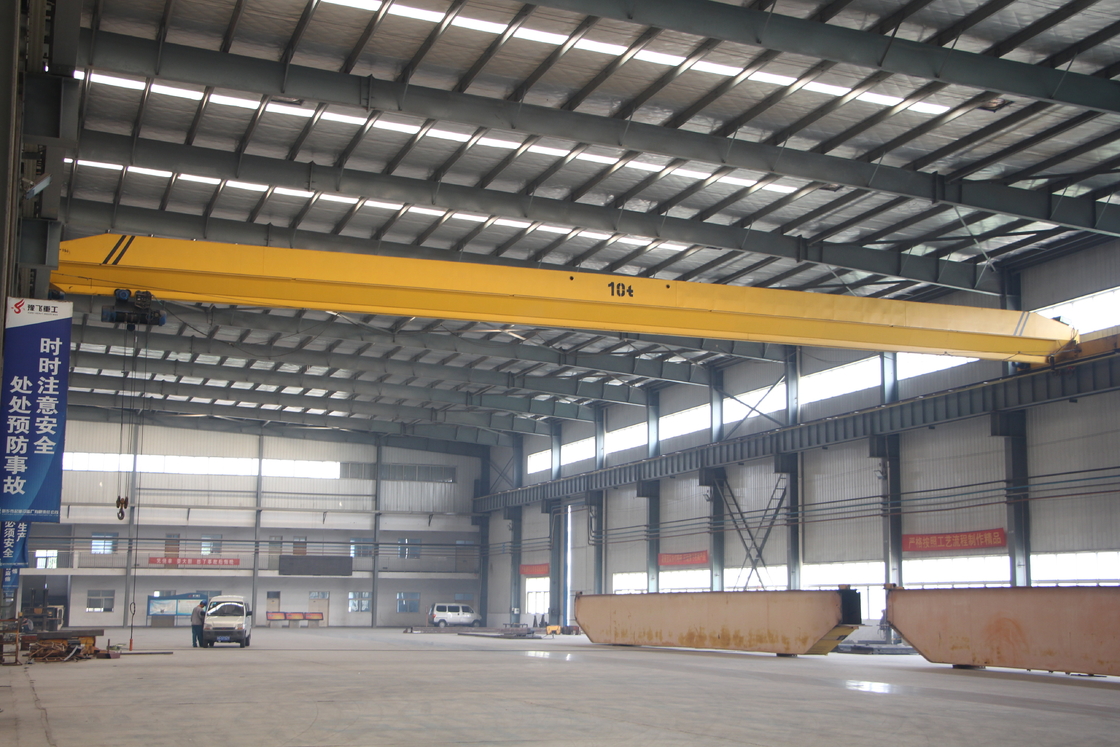

6 10 20 Ton Single Girder Bridge Crane

6 10 20 Ton Single Girder Bridge Crane

  • 6 10 20 Ton Single Girder Bridge Crane
  • 6 10 20 Ton Single Girder Bridge Crane
  • 6 10 20 Ton Single Girder Bridge Crane
6 10 20 Ton Single Girder Bridge Crane
Product Details:
Place of Origin: China
Brand Name: Santo Crane
Certification: ISO, CE
Model Number: LD, LDP,LX
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: 6000USD~20000USD /set
Packaging Details: Plastic sheets for beams, spare parts are packed in wooden case
Delivery Time: 20~40 working days
Payment Terms: L/C, T/T
Supply Ability: 5000sets /year
Contact Now
Detailed Product Description
Condition: New Warranty: 12 Months
Span: 7.5m-31.5m Or On Request Max. Lifting Height: 30m
Max. Lifting Capacity: 20t For Single Girder Feature: Bridge Crane
Type: Hoist Single Girder Bridge Crane Lifting Mechanism: Electric Hoist
Application: Workshop, Warehouse, Factory Color: Red ,Yellow Or On Request
Power Supply: 220V-480V 50/60Hz Control Method: Wireless Remote Control, Pendent Control,Cab Control
High Light:

20 Ton Single Girder Bridge Crane


380V 50Hz 6 ton bridge crane


30m height 10 Ton Bridge Crane

Support Customization 6 10 20 ton Single girder Bridge Crane frequency inverter overhead crane




1. Rigid box-typed main girder;

2. Shot blasting for the whole body after welding and releasing internal stresses;

3. Painting epoxy zinc-rich primer, and the thickness of oil film is 140μm;

4. Main girder and end girders are connected by 10.9 degree high-strength bolts;

5. Driven by electric reducer or traditional LD drive system;

6. Running smoothly, brake efficiently, long service life.


Main Technical Parameter:


Lifting capacity(t)


Crane traveling mechanism

Traveling speed


Rotational speed m/min


Lifting mechanism& hoist traveling mechanism


CD1, MD1

Lifting speed m/min

8 0.8/8

Lifting height m

6 9 12 18

Traveling speed m/min


Working system


Power supply

380V, 50Hz, AC, 3-Phase

Applicable track steel I-beam



Safety Features:


  • Limit switch for lifting, cross traveling and long crane traveling .

  • Overload protect device: once overweight, stop working immediately.

  • Buffer: avoid collision.

  • Emergency stop switch: has the protection of any emergency.

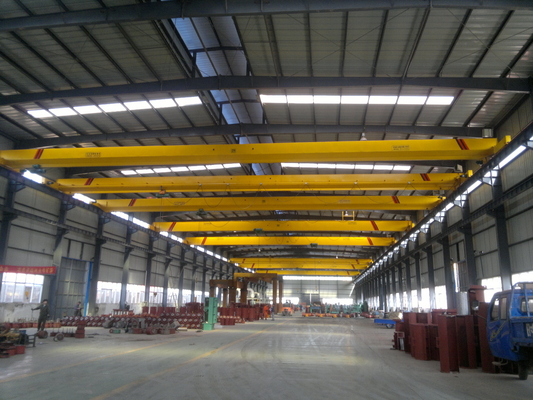

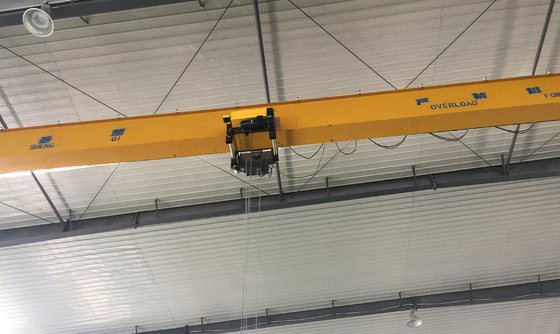

Photos show:


Electric Hoist Single Girder Under Running Suspension Underslung Crane with Remote Control or Pendant Control
