| Place of Origin: | China |
| Brand Name: | Santo Crane |
| Certification: | ISO, CE |
| Model Number: | LD, LDP,LX |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | 6000USD~20000USD /set |
| Packaging Details: | Plastic sheets for beams, spare parts are packed in wooden case |
| Delivery Time: | 20~40 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5000sets /year |
| Control Method: | Wireless Remote Control, Pendent Control,Cab Control | Condition: | New |
|---|---|---|---|
| Power Supply: | 220V-480V 50/60Hz | Warranty: | 12 Months |
| Span: | 7.5m-31.5m Or On Request | Max. Lifting Height: | 30m |
| Max. Lifting Capacity: | 20t For Single Girder | Feature: | Bridge Crane |
| Type: | Hoist Single Girder Bridge Crane | Lifting Mechanism: | Electric Hoist |
| Application: | Workshop, Warehouse, Factory | Color: | Red ,Yellow Or On Request |
| High Light: | 20T Modular Bridge Crane,A3 Warehouse bridge crane,5T Customized Bridge Crane |
||
Customized 5 10 15 20 Ton Workshop Warehouse Modular Bridge Crane Single
Information:
Single Beam Overhead Crane is a kind of crane travelling along two parallel rails and lifting mechanisms travel along horizontal main girder. Single Beam Overhead Crane is composed of main girder, end girders, traveling mechanisms, lifting mechanism (hoist) and electrical components. This crane is usually used in long distance workshops and runs along the rails on both sidewalls.
This Single Beam Overhead Crane is with traditional steel girder or box-typed girder. This type crane can be used in steel plants, hydro-power stations, warehouses and workshops etc.
The working system is A3.
The span is 3m-16.5m.
Working temperature is -25°C~40 °C.
Lifting capacity is 0.5~10t.
Parameter:
| Lifting capacity(t) | 0.5~10t | |
| Crane traveling mechanism | Traveling speed | 20 |
| Rotational speed m/min | 1380 | |
| Lifting mechanism& hoist traveling mechanism | Type | CD1, MD1 |
| Lifting speed m/min | 8 0.8/8 | |
| Lifting height m | 6 9 12 18 | |
| Traveling speed m/min | 20 | |
| Working system | A3 | |
| Power supply | 380V, 50Hz, AC, 3-Phase | |
| Applicable track steel I-beam |
120a~145c |
|

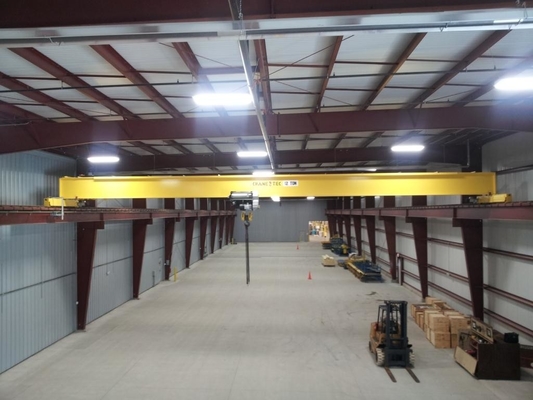

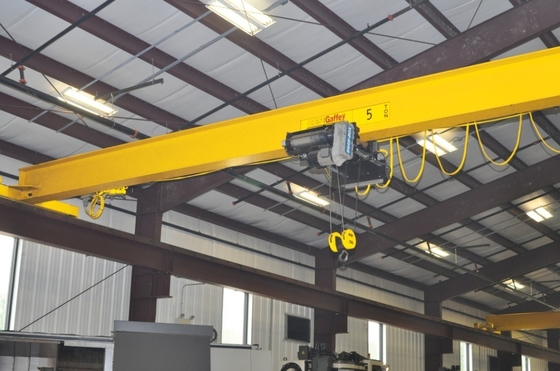

Photos:
Delivery:
All our packing ways are standard packing. In wood case or carton, or as your demand. After the production, we will do our best to do the shipping as soon as possible.
Ordering Notice of New Design Manual Hoist Single Girder Underslung Crane with High Quality
Please inform us the following data for the purpose of servicing you better!
