| Place of Origin: | CHINA |
| Brand Name: | SANTO |
| Certification: | ISO, CE |
| Model Number: | LH |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | USD5000-30000/set |
| Packaging Details: | Electrical and other parts packed by high quality plywood crate, steel beams packed by plastic films or plastic woven cloth |
| Delivery Time: | 35-40 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5000set/year |
| Condition: | New | Warranty: | 12 Months |
|---|---|---|---|
| Span: | 7-35m | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Field Installation,commissioning And Training,Online Support,Field Maintenance And Repair Service |
| Feature: | Electric Overhead Travelling Bridge Crane | Max. Lifting Height: | 6m~30m |
| Rated Lifting Moment: | Different | Max. Lifting Load: | 50t |
| Product Name: | EOT CRANE | Application: | Workshop,Warehouse,plants,factory,warehouse And So On |
| Control Method: | Wireless Remote Control,Ground Control,pendant Control | Rated Loading Capacity: | 1-50t |
| Color: | Yellow, Red, Or As Requirments | Power Source: | 3 Phase 380V 50hz Or Be Customized |
| Power Supply: | 220V~480V 50/60Hz | Crane Feature: | Easy Operated Double Girder Overhead Crane |
| Type: | Double Girder Electric Hoist Overhead Crane, EOT Crane | Lifting Mechanism: | Electric Hoist With Crabs Trolley |
| Lifting Speed: | Standard Or As Requirement | Main Electrical Parts: | Chint, Or As Requirments Siemens, Schneider |
| High Light: | Remote Control Double Girder Hoist,SANTO Double Girder Hoist,30 Ton Overhead Traveling Crane |
||

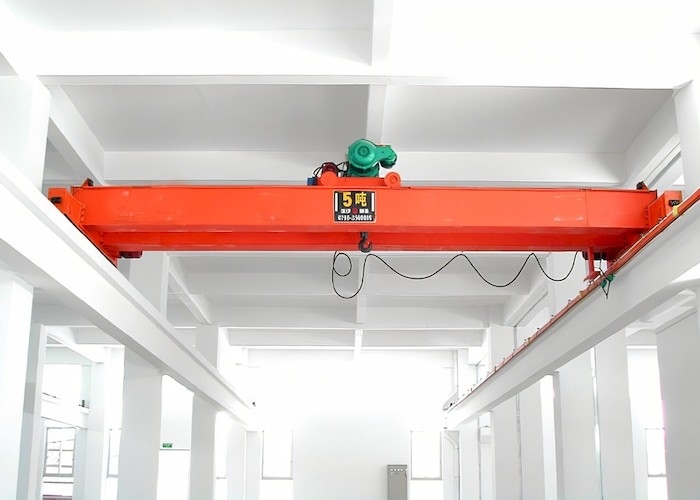

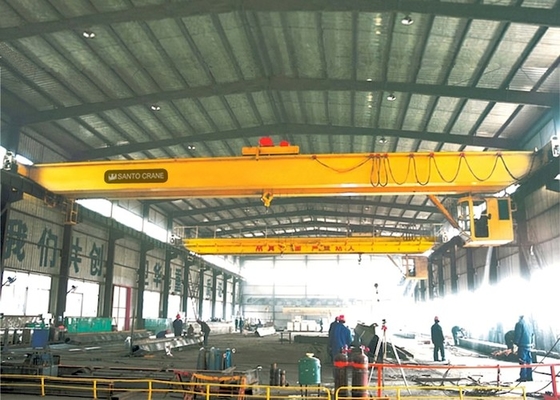

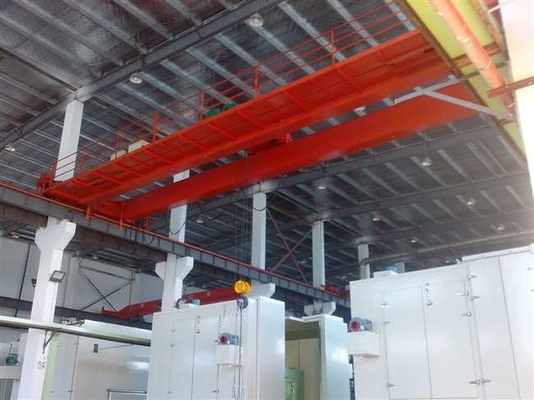

High Quality Remote Control Double Girder Hoist Overhead Traveling Crane 5 Ton 10 Ton 15 Ton 20 Ton 30 Ton
Product introduction:
LH model Electric Hoist Double Girder Overhead Traveling Crane is a light duty lifting equipment, it is widely used in factories,plants,warehouse, workshop to lift goods or assemble machine,it is not frequently used in a day.
LH model Electric Hoist Double Girder Overhead Traveling Crane is composed with Girder frame, Crane traveling device, and trolley with lifting and moving device, festoon cable and electric control system. The control mode is pendent line control,remote wireless control,cabin control. The lifting unit is electric hoist. The working class is A3 or A4. There are two rails for the trolley move on the main girder.
The crane girders are of welded girder construction. This result in lower dead weights with a high degree of vertical and horizontal rigidity and smaller wheel loads being transmitted to the crane runway.
Specification:
| Load capacity(t) | 3 | 5 | 10 | 16 | 20 | 20/5 | 32/5 | ||
| Span(m) | 10.5~31.5 | ||||||||
| Max Lifting height(m) | Main Hook | 6~30 | |||||||
| Auxiliary Hook | 6~30 | ||||||||
| Working class | A3 A4 | ||||||||
| Speed(m/min) | Main Hoisting | 8,8/0.8 | 8,8/0.8 | 7,7/0.7 | 3.5,3.5/0.35 | 3.5,3.5/0.35 | 3.5,3.5/0.35 | 2.4,2.4/0.24 | |
| Auxiliary Lifting | 8,8/0.8 | 8,8/0.8 | |||||||
| Trolley Cross Traveling | 20,2~20 | ||||||||
| Crane Long Traveling | 30,3~30 | ||||||||
| Motor Type | Squirrel cage motor | ||||||||
| Motor (Kw) | Main Hoisting | 4.5 | 7.5 | 13 | 13 | 18.5 | 18.5 | 18.5 | |
| Auxiliary Lifting | 7.5 | 7.5 | |||||||
| Trolley Cross Traveling | 2*0.4, 2*0.8, 2*1.5 | ||||||||
| Crane Long Traveling | 2*0.8, 2*1.5, 2*2.2 | ||||||||
| Control mode | Pendent control, Remote control, Cabin control | ||||||||
| Recommended Rail model | 24kgs/m | 30kgs/m | 38kgs/m | 43kg/m or P50 | |||||
| Power source | 3Ph A.C 50Hz 380V, or as requirements | ||||||||

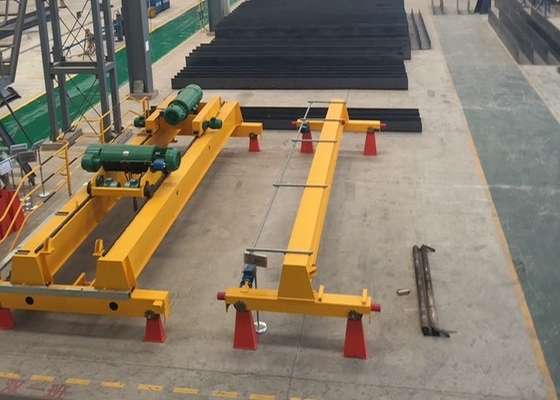

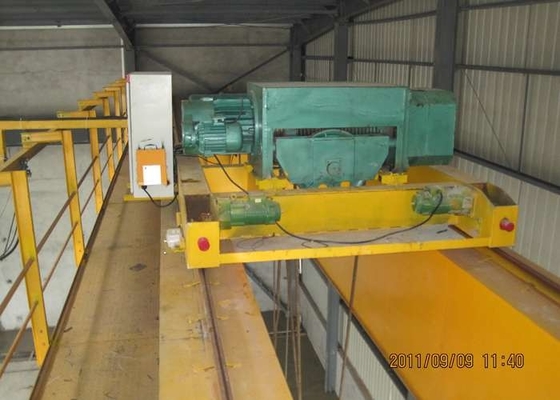

Crane Details:
Safety feature:
Weight overload protection device, top quality long time bearing polyurethane materials buffer, crane traveling limit switch, voltage lower protection functions, emergency stop system, current overload protection system and so on!
Optional Features:
Weight overload protection device
Emergency stop system
Over current Protection, Short-circuit Protection
Phase sequence protection
Zero position protection, No-Voltage protection, convenient and simple operation.
Protective earth conductor is fitted as standard
Voltage lower protection system
Current overload protection system
High protection level IP44,IP54,IP55
Long and cross travel limit switch
Anti-falling protection of trolley and crane prevents from accidental falling
High quality long time bearing polyurethane materials buffer fixed at the end of trolley travelling and crane travelling to prevent over traveling
Safety hook latch used for avoiding the lifted material out off from the hook
Audible and visual alarm device to inform the person stay near by the travelling crane
Rain Cover for lifting mechanism of outdoor cranes, electric cabinet and driving mechanism
Design standard
Crane design standard GB 3811.
General Purpose Overhead Crane design standard GB/T14405
Manufacturing and tolerances of rail installation GB/T10183.
Crane wheel standard:JBT 6392
Crane test specification and procedures GB/T5905.
Crane electric control equipment JB/T4315.
Important application wire rope GB8918.
Carbon structure steel GB/T700.
Low alloy high strength structure steel GB/T1591.
Welding joint radiographic inspection standard JB928.
Steel welding joint manual ultrasonic flaw detection way GB11345.
Delivery:
Electrical and other parts packed by high quality plywood crate, steel beams packed by plastic films or plastic woven cloth.
