| Place of Origin: | CHINA |
| Brand Name: | SANTO |
| Certification: | ISO, CE |
| Model Number: | QD, QDY, YZ, YZS, QL, QZ, QC |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | USD6000-40000/set |
| Packaging Details: | Electrical and other parts packed by high quality plywood crate, steel beams packed by plastic films or plastic woven cloth |
| Delivery Time: | 35-45 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 6000set/year |
| Product Name: | Double Girder Overhead Crane | Main Electrical Parts: | Chint, Or As Requirments Siemens, Schneider |
|---|---|---|---|
| Span: | 7-35m | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Field Installation,commissioning And Training,Online Support,Field Maintenance And Repair Service |
| Feature: | Electric Overhead Travelling Bridge Crane | Max. Lifting Height: | 6m~30m |
| Rated Lifting Moment: | Different | Max. Lifting Load: | 800t |
| Application: | Workshop,Warehouse,plants,factory,warehouse And So On | Control Method: | Wireless Remote Control,Ground Control,pendant Control |
| High Light: | 550T Double Girder Overhead Crane,OEM 30 ton overhead crane,ODM 60 ton Overhead Crane |
||

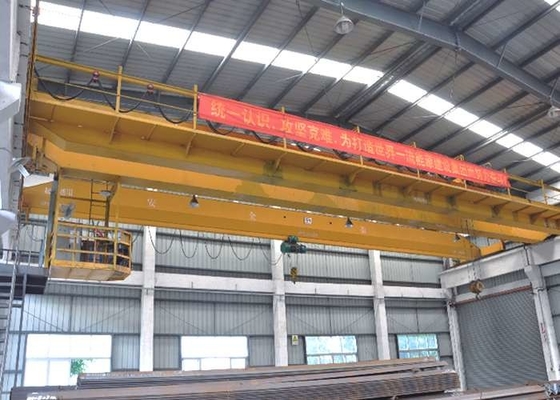

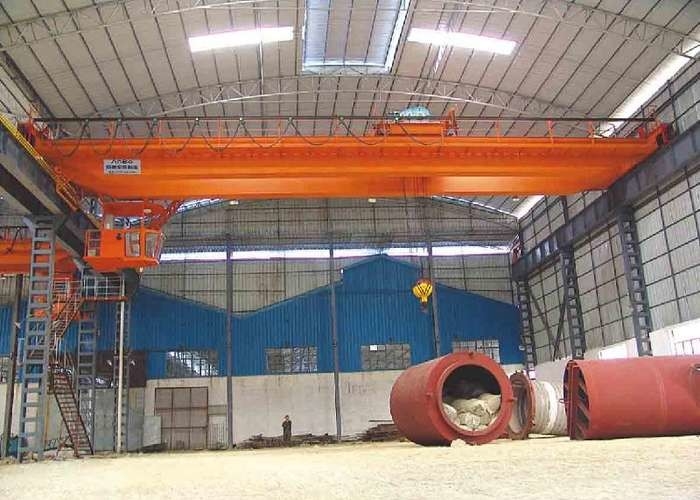

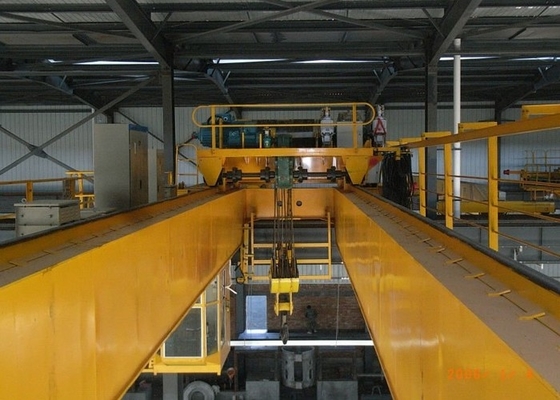

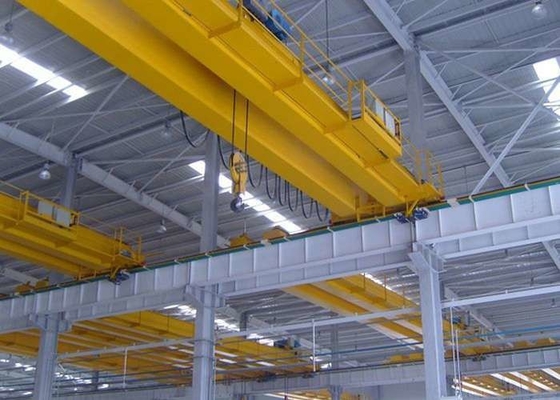

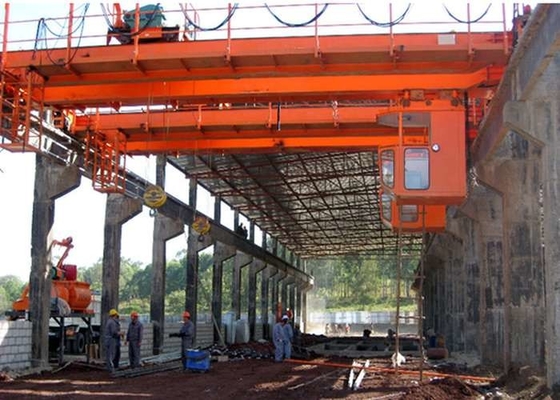

20 ton 30 ton 50 ton 60 ton 100 ton up to 500 ton Electric Double Beam Girder Overhead Bridge Crane with Double hooks
Product Description:
Overhead Cranes can also be referred to as Bridge Cranes.
Using pre-engineered and bespoke components based on modular designs, we are able to deliver a large range of highly reliable cranes with capacities from 1 ton up to 550 ton SWL with single girder, double girder or underhung structures.
Our standard crane range uses our super efficient chain hoist, highly advanced wire rope hoist or built-up open winch hoist with competitive prices and very quick delivery times.
Santocranes' hoists and cranes have developed a strong reputation for reliability and endurance with an unparalleled record in a vast range of applications and environments worldwide.
Every function of the latest generation santo hoist has been reviewed and a whole series of innovations applied to provide new levels of user-friendliness and performance. The result is an easy to operate, high endurance hoist incorporating state-of-the-art technology. The santo wire rope hoist has been designed to fulfill expectations and improve our customer’s productivity. With exceptionally safe and efficient lifting, the new santo hoist sets the benchmarks in the crane industry and provides a series of unique benefits for the user. The santo hoist epitomises intelligent design for easy load handling and we think you will agree represents unbeatable value for money and a serious investment.
Features:
All the standards which required for the crane is the Chinese national standard, and we also passed the CE, ISO, and BV certificates .The quality is great.
Parameter:
| QSWL Gn rated lifting capacity | t | 32/10 (we can supply up to 550 ton) | |||||||||
| Opertional method | m/min | Remote or Pendant control/Cabin Control | |||||||||
| Speed | Main.hook lifting | 3(0.3/3) | |||||||||
| Aux.hook lifting | 7(7/0.7) | ||||||||||
| Cross travelling | 20 | ||||||||||
| Long travelling | Remote or Pendant control | 20/30 | |||||||||
| Cabin Control | 30/40 | ||||||||||
| Motor | Main.hook lifting | kw | ZDX62-6/18.5,(ZDS2.2/18.5) | ||||||||
| Aux.hook lifting | ZD151-4/13(ZDS1-1.5/13) | ||||||||||
| Cross travelling | ZDY123-4/2.2x2 | ||||||||||
| Long travelling | Remote or Pendant control | ZDY123-4/2.2x2 | ZDY131-4/3x2 | ||||||||
| Cabin Control | ZDR112L2-4/3.0x2 | ZDR125-4/4.6x2 | |||||||||
| Electric Hoist | WH164;CD1(MD1) | ||||||||||
| Lifting Height | m | 9;12;16;24 | |||||||||
| Duty Class | A3--A5 | ||||||||||
| Power source | 3-phase A.C. 50Hz;380V | ||||||||||
| Track recommended | 43KG/M | ||||||||||
| Span | m | 7.5 | 10.5 | 13.5 | 16.5 | 19.5 | 22.5 | 25.5 | |||
| Max.wheel presure | KN | 167 | 184 | 196 | 206 | 215 | 224 | 233 | |||
| Crane weight | Remote or Pendant control | kg | 12530 | 14660 | 16360 | 18870 | 21650 | 24260 | 27060 | ||
| Cabin Control | kg | 13430 | 15560 | 17260 | 19770 | 22550 | 25160 | 27960 | |||
| Basic dimensions | B | mm | 5070--5960 | 5572--6222 | |||||||
| W | mm | 3600~4500 | |||||||||
| Wc | mm | 2200-2900 | |||||||||
| K | mm | 1600~2500 | |||||||||
| H | mm | 1900 | |||||||||
| H1 | mm | 765 | |||||||||
| H2 | mm | 170 | 270 | 370 | 470 | 570 | 670 | 770 | |||
| H3 | mm | 2395 | 2495 | 2595 | 2695 | 2795 | 2895 | 2995 | |||
| H4 | mm | -700 | |||||||||
| b | mm | 230 | |||||||||
| S1 | mm | 1100 | |||||||||
| S2 | mm | 1600 | |||||||||
Spare parts we purchases:
|
Free inquiry:
In order to make a very quick offer and saving your waiting time, It's better to fill the information below. Copy and send us the information together with the enquiry.
|
{Tips: 5 ton, 10 ton, 16 ton, 20 ton, 30 ton, 40 ton, 50 ton up to 550 ton} | ||||||||||||||||||||||||
| {Tips: 6m ~40m} | |||||||||||||||||||||||||
| {Tips: 380V, 50Hz, AC, 3-phase or please note} | |||||||||||||||||||||||||
| {Tips: A5, A3, If you don't know, please fill the follow} | |||||||||||||||||||||||||
| {Tips: Remote control, cabin control or pendent control } | |||||||||||||||||||||||||
| {Tips: Single speed, double speed, or stepless speed} | |||||||||||||||||||||||||
| {Tips: Single speed or stepless speed} | |||||||||||||||||||||||||
| {Tips: If yes, please note the Long travel length} | |||||||||||||||||||||||||
| {Tips: If yes, please note the Long travel length} | |||||||||||||||||||||||||
| {Tips: We quote CIF price need the port. FOB price please note FOB} |
If your workshop roof is very low, Its better to send us a drawing, a sketch or show us datas and then our Engineer can work out a full suitable solution just for yours.
Looking forward your kindly inquiry and hope to help your strong business in near future!
