| Place of Origin: | CHINA |
| Brand Name: | SANTO |
| Certification: | ISO, CE |
| Model Number: | LDY, LD, LDE, LT, LDP, LX |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | USD2000-10000/set |
| Packaging Details: | Electrical and other parts packed by high quality plywood crate, steel beams packed by plastic films or plastic woven cloth |
| Delivery Time: | 15-30 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5000set/year |
| Condition: | New | Warranty: | 12 Months |
|---|---|---|---|
| Span: | 7.5-31.5m | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Field Installation,commissioning And Training,Online Support,Field Maintenance And Repair Service |
| Feature: | Bridge Crane | Control Method: | Wireless Remote Control,Ground Control,pendant Control |
| Rated Loading Capacity: | 1-10t | Color: | Yellow, Red, Or As Requirments |
| Crane Feature: | Easy Operated Girder Bridge Crane,Single Girder Overhead Crane,EOT Crane,7.5tons Overhead Crane | Lifting Mechanism: | Electric Hoist |
| Lifting Speed: | 0~8m/min | Main Electrical Parts: | Chint, Or As Requirments Siemens, Schneider |
| High Light: | Foundry Single Girder Overhead Crane,20m Single Girder Overhead Crane,6m Lift Height Foundry Crane |
||

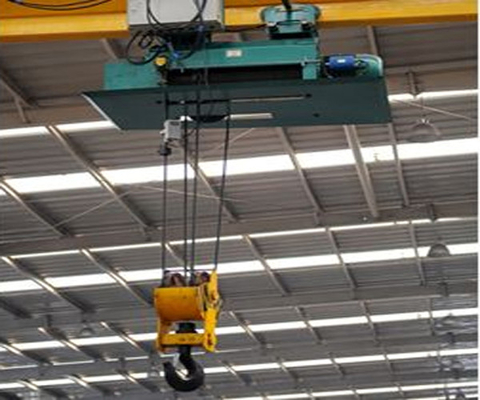

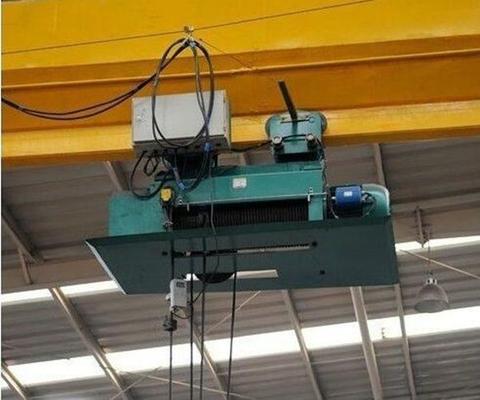

LDY Foundry Casting Using Single Girder Overhead Crane With Heat Resistance Shield For Molten Steel Handling
Description:
LDY Single girder overhead crane is mainly used for lifting molten metal and foundries in metallurgy. The lifting hoist is YH metallurgy wire-rope electric hoist with lifting capacity reaching 10t. Designed and manufactured in accordance with JB/T 1306-2008 standard.
The bottom of main girder adopts special heat-insulation treatment with working environment temperature ﹣10℃~﹢60℃, and relative humidity ≤ 50%( 40℃). Design and manufacture meet the requirements of AQSIQ Doc # (2007)375.
Crane design and manufacture meet the State administration of quality supervision, inspection and quarantine of the quality of writing "2007" document No. 375, lifting other molten metal items and lifting hot solid metal location can also refer to the selection.
LDY model single girder overhead crane parameters:
Load capacity: 1-10t
Span: 7.5-31.5m
Lifting height: 6-20m
Lifting speed: 1.75-8m/min
Hoist running speed: 20m/min
Crane running speed: 20m/min
Work duty: A6
Advantages & Features:
The hoisting mechanism is installed with two independent braking devices – brake and safety brake (double braking) and metallurgical electric hoist with overload limiter. Tapered rotor motor with large starting torque is used for lifting operation motor, with class H insulation, high temperature resistant cable, and thermal insulation protection measures are adopted outside electrical equipment such as motor. The operation mode is ground handle operation or wireless remote control operation.
Safe configuration:
Two sets of independent brake, double spacing, heat insulation plate
Reasonable structure, Favorable performance
Smooth starting and stopping system, Safe and reliable traveling mechanism
Low noise, commodious cabin and good view
Convenient maintenance, excellent exchange for parts and components
Long service life, High mechanical efficiency
Remote control, No flashlight door handle line limit
Overload protection, limit switch for lifting and travelling
Advanced design:
LDP model motor driven single beam crane is designed and produced according to GB/T 3811-2008, JB/T 1306-2008 standard and hoist model CD1 single lifting speed, MD1 dual lifting speed.
The control method is ground control(ground control, remote control, or ground control + remote control). If the span and lifting height is out of the range that stylebook lists, we can do non-standard design according to the requirement.
Specification:
| Capacity | t | 1 | 2 | 3 | 5 | 10 |
| Span | S(m) | 7.5~31.5 | 7.5~31.5 | 7.5~31.5 | 7.5~31.5 | 7.5~31.5 |
| Lifting height | m | 6~20 | 6~20 | 6~20 | 6~20 | 6~20 |
| Lifting speed | m/min | 8(2/8) | 8(2/8) | 8(2/8) | 8(2/8) | 7(1.75/7) |
| Trolley speed | m/min | 20(30) | 20(30) | 20(30) | 20(30) | 20(30) |
| Crane speed | m/min | 20(30) | 20(30) | 20(30) | 20(30) | 20(30) |
| Work duty | A6 | A6 | A6 | A6 | A6 | |
| Track type | P18 P24 | P18 P24 | P24 | P24 | P24 P30 |
Company information:
The leading products of Santo widely used in Machinery, Metallurgy, Electric Power, Railway, Aerospace , Port, Petroleum, Petrochemical, etc, our products are serving the national key projects such as: the South-to-North Water Transfer Project, the West-East National Gas Transmission, the Three Gorges Hydropower Station, Jiuquan Satellite Lunching Center, Qinshan Nuclear Power Station, Hangzhou Bay Bridge, Beijing Olympic Games and so on, accelerate successfully the launch of Spacecraft Shenzhou-10 and Chang’e-3,our products have been exported to more than 69 countries like America, Japan, Russia, Korea, etc. In 2013 the annual sales revenue reached 6.669 billion, and the Overhead Traveling Crane and the Gantry Crane continue to hold the first position around the whole country

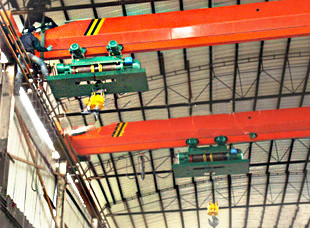

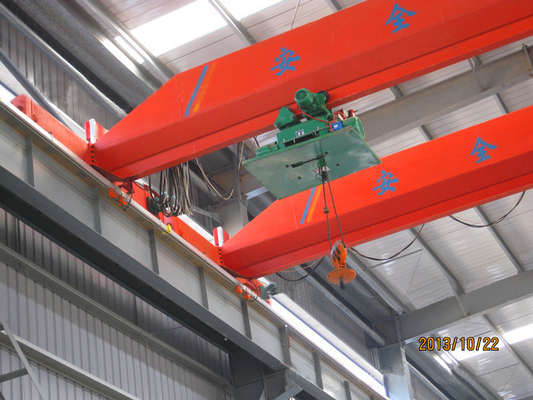

Crane Detail:
