| Place of Origin: | CHINA |
| Brand Name: | SANTO |
| Certification: | ISO, CE |
| Model Number: | LD, LDE, LT, LDP, LX |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | USD2000-10000/set |
| Packaging Details: | Electrical and other parts packed by high quality plywood crate, steel beams packed by plastic films or plastic woven cloth |
| Delivery Time: | 15-30 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5000set/year |
| Feature: | Bridge Crane | Span: | 7.5-31.5m |
|---|---|---|---|
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Field Installation,commissioning And Training,Online Support,Field Maintenance And Repair Service | Max. Lifting Height: | 6m~30m |
| Rated Lifting Moment: | Different | Application: | Workshop,Warehouse,plants,factory,warehouse And So On |
| Control Method: | Wireless Remote Control,Ground Control,pendant Control | Lifting Mechanism: | Electric Hoist |
| Lifting Speed: | 0~8m/min | Main Electrical Parts: | Chint, Or As Requirments Siemens, Schneider |
| High Light: | Q345B LDP Electrical Overhead Crane,Q235 LDP Electrical Overhead Crane,A3 A4 Low Headroom Bridge Crane |
||
LDP Single Girder Electric Hoist Overhead Crane With Low Headroom Side Mounted Trolley
Description:

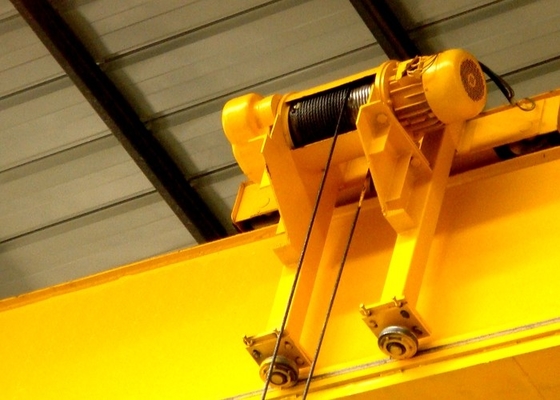

The hoist of LDP single girder overhead crane is mounted on the side of the girder to increase lifting height and reduce workshop cost. So this crane can be installed in low clearance and it is the best choice for users who needs max lifting height in the case of the height of workshop is limited.
Electric hoist is at one side of main girder,so can increase space of hook and reduce the cost,With advantages of big trolley tread, smooth traveling, tight structure, strong rigidity, delicate operation, low noise, safety and reliablity and beautiful exterior.
Lifting capacity: 1t - 10t;
Span: 7.5m - 31.5m;
Work duty: A3 and A4;
Working temperature: ﹣20℃~﹢40℃.
Advantages & Features:
Material: Steel plate material Q235 or Q345B ( similar with foreign steel plate Fe3 or Fe52)
Steel structure: Strong Steel box type, seamless once forming technology more strong and elegant.
Strong box type with standard deflection.
Crane traveling motor: Soft start type
Wheel:Vacuum casting by our group, Inter medium frequency quenching, strongly control on quality by our group
Main electrical parts: Schneider brand
Safe configuration:
1. Weight overload protection device
2. Top quality durable polyurethane buffer
3. Crane traveling limit switch
4. Low voltage protection function
5. Emergency stop system
6. Current overload protection function
Advanced design:
LDP model motor driven single beam crane is designed and produced according to GB/T 3811-2008, JB/T 1306-2008 standard and hoist model CD1 single lifting speed, MD1 dual lifting speed.
The control method is ground control(ground control, remote control, or ground control + remote control). If the span and lifting height is out of the range that stylebook lists, we can do non-standard design according to the requirement.
Specification:
| Lifting Capacity | t | 1t | 2t | 3t | 5t | 10t |
| Span | m | 7.5~22.5; Customizable | ||||
| Lifting Height | m | 6, 9, 12; Customizable | ||||
| Lifting Speed | m/min | 8 or 8/0.8 | 8 or 8/0.8 | 8 or 8/0.8 | 8 or 8/0.8 | 7 or 7/0.7 |
| Trolley Traveling Speed | m/min | 20 | 20 | 20 | 20 | 20 |
| Crane Traveling Speed | m/min | 20/30 | 20/30 | 20/30 | 20/30 | 20/30 |
| Duty Class | ISO | A4 | A4 | A4 | A4 | A4 |
| Power Supply | 380V, 50Hz, 3Phase | |||||

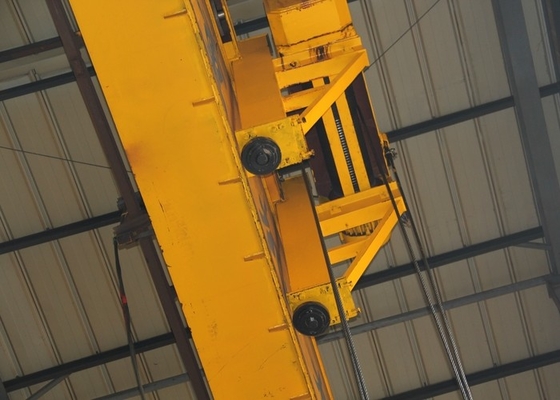

Crane Detail:
Delivery:
