| Place of Origin: | CHINA |
| Brand Name: | SANTO |
| Certification: | ISO, CE |
| Model Number: | LD, LDE, LT, LDP, LX |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | USD2000-10000/set |
| Packaging Details: | Electrical and other parts packed by high quality plywood crate, steel beams packed by plastic films or plastic woven cloth |
| Delivery Time: | 15-30 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5000set/year |
| Product Name: | Overhead Travelling Crane | Lifting Speed: | 0~8m/min |
|---|---|---|---|
| Condition: | New | Warranty: | 12 Months |
| Span: | 7.5-31.5m | Feature: | Bridge Crane |
| Max. Lifting Height: | 6m~30m | Max. Lifting Load: | 20t |
| Application: | Workshop,Warehouse,plants,factory,warehouse And So On | Control Method: | Wireless Remote Control,Ground Control,pendant Control |
| Main Electrical Parts: | Chint, Or As Requirments Siemens, Schneider | Rated Loading Capacity: | 1-20t |
| High Light: | Span 31.5m 20 Ton Bridge Crane,Span 7.5m 20 Ton Bridge Crane,Single Beam EOT Crane 8m/Min |
||
Single Girder Eot Crane With Chinese Standard Lifting Capacity Up To 20t Bridge Span 7.5~31.5m
Description:

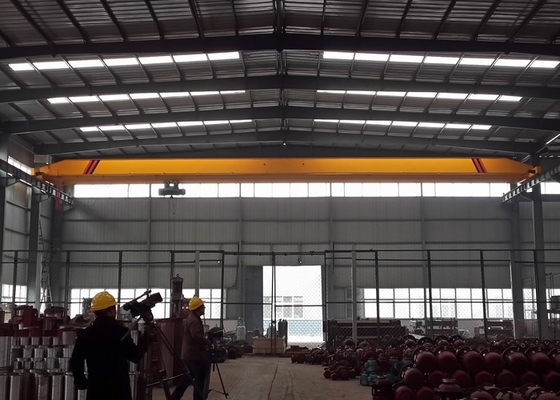

Chinese standard single girder overhead crane is a kind of crane travelling along two parallel rails and lifting mechanisms travel along horizontal main girder. Chinese standard single girder overhead crane is composed of main girder, end girders, traveling mechanisms, lifting mechanism (hoist) and electrical components. This crane is usually used in long distance workshops and runs along the rails on both sidewalls.
This crane is a single girder type crane with traditional steel girder or box-typed girder. The lifting capacity is usually less than 20 tons. This type crane can be used in steel plants, hydro-power stations, warehouses and workshops etc.
Application:
Electric Hoist Single Girder Beam Overhead Crane is widely used in plants, warehouses, material stocks to lift goods. It is prohibited to use the equipment in the combustible, explosive or corrosives environment.This product has two operational methods, ground or operational room which is open or closed model and can be installed on left or right side according to the practical situation. And the direction of entering the gate has two forms, sideway and ends in order to satisfy the users' choice under different conditions.
Specification:
| Lifting capacity | t | 1, 2, 3, 5, 10 | 16, 20 | |||||||||
| Span | m | 7.5-31.5 | ||||||||||
| Lifting height | m | 6, 9, 12, 18, 24, 30 | 9, 12, 18, 24, 30 | |||||||||
| Traveling mechanism | Traveling speed | m/min | 20 | 30 | 45 | 60 | 75 | 20 | 30 | 45 | 60 | 75 |
| Reducer ratio | 58.78 | 39.38 | 26.36 | 19.37 | 15.88 | 58.78 | 39.38 | 26.36 | 19.37 | 15.88 | ||
| Motor model | ZDY21-4 | ZDY122-4 | ZDY131S-4 | |||||||||
| Motor power | kw | 0.8*2 | 1.5*2 | 1.5*2 | 2.2*2 | |||||||
| Motor rotation | m/min | 1380 | 1380 | |||||||||
| Lifting mechanism | Electric hoist model | CD1/MD1 | CD1/MD1/HC | |||||||||
| Lifting speed | m/min | 8, 8/0.8, 7, 7/0.7 | 3.5, 3.5/0.35 | |||||||||
| Traveling speed | m/min | 20(30) | 20(30) | |||||||||
| Motor | Taper Squirrel-cage type | Taper Squirrel-cage type | ||||||||||
| Working duty | A3-A5 | |||||||||||
| Power supply | 380V-50HZ, 3Phase or as your demand | |||||||||||
Advantage:
1. Rigid box-typed main girder;
2. Shot blasting for the whole body after welding and releasing internal stresses;
3. Painting epoxy zinc-rich primer, and the thickness of oil film is 140μm;
4. Main girder and end girders are connected by 10.9 degree high-strength bolts;
5. Driven by electric reducer or traditional LD drive system;
6. Running smoothly, brake efficiently, long service life;
Company Information:
Santo crane mainly dealing in researching, developing and producing the lifting machinery, port machinery, construction-use tower crane, reducer, etc.
The leading products of Santo widely used in Machinery, Metallurgy, Electric Power, Railway, Aerospace , Port, Petroleum, Petrochemical, etc, our products are serving the national key projects such as: the South-to-North Water Transfer Project, the West-East National Gas Transmission, the Three Gorges Hydropower Station, Jiuquan Satellite Lunching Center, Qinshan Nuclear Power Station, Hangzhou Bay Bridge, Beijing Olympic Games and so on, accelerate successfully the launch of Spacecraft Shenzhou-10 and Chang’e-3,our products have been exported to more than 69 countries like America, Japan, Russia, Korea, etc. In 2013 the annual sales revenue reached 6.669 billion, and the Overhead Traveling Crane and the Gantry Crane continue to hold the first position around the whole country
