| Place of Origin: | CHINA |
| Brand Name: | SANTO |
| Certification: | ISO, CE |
| Model Number: | LD, LDE, LT, LDP, LX |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | USD2000-10000/set |
| Packaging Details: | Electrical and other parts packed by high quality plywood crate, steel beams packed by plastic films or plastic woven cloth |
| Delivery Time: | 15-30 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5000set/year |
| Main Electrical Parts: | Chint, Or As Requirments Siemens, Schneider | Type: | Hoist Single Girder Bridge Crane,Single Girder Overhead Crane,10 Ton Overhead Crane |
|---|---|---|---|
| Max. Lifting Height: | 6m~30m | Application: | Workshop,Warehouse,plants,factory,warehouse And So On |
| Power Supply: | 220V~480V 50/60Hz | Crane Feature: | Easy Operated Girder Bridge Crane,Single Girder Overhead Crane,EOT Crane,7.5tons Overhead Crane |
| Lifting Mechanism: | Electric Hoist | Lifting Speed: | 0~8m/min |
| High Light: | Santo Single Girder Overhead Cranes,JB T1306 94 Overhead Cranes 10 Ton,10Ton SG EOT Crane |
||
Top Running Lifting Machine Single Girder Overhead Crane 10 Ton
Description:
The LD type single girder overhead crane is the most popular crane for all type of workshops. It can be characterized by advanced metal structure and higher steel strength, used together with CD1 or MD1 electric hoist as a complete set.
These cranes are more efficient and require less maintenance.working class A3-A5, working temperature is between -25C to 40C.
This crane model recommended by the WTO and match China standard JB/T1306-94.
LD crane has two operational methods- pendant or cabin (open or closed type).
Application:
Electric Hoist Single Girder Beam Overhead Crane is widely used in plants, warehouses, material stocks to lift goods. It is prohibited to use the equipment in the combustible, explosive or corrosives environment.This product has two operational methods, ground or operational room which is open or closed model and can be installed on left or right side according to the practical situation. And the direction of entering the gate has two forms, sideway and ends in order to satisfy the users' choice under different conditions.
Specification:
| Lifting capacity | t | 1, 2, 3, 5, 10 | 16, 20 | |||||||||
| Span | m | 7.5-31.5 | ||||||||||
| Lifting height | m | 6, 9, 12, 18, 24, 30 | 9, 12, 18, 24, 30 | |||||||||
| Traveling mechanism | Traveling speed | m/min | 20 | 30 | 45 | 60 | 75 | 20 | 30 | 45 | 60 | 75 |
| Reducer ratio | 58.78 | 39.38 | 26.36 | 19.37 | 15.88 | 58.78 | 39.38 | 26.36 | 19.37 | 15.88 | ||
| Motor model | ZDY21-4 | ZDY122-4 | ZDY131S-4 | |||||||||
| Motor power | kw | 0.8*2 | 1.5*2 | 1.5*2 | 2.2*2 | |||||||
| Motor rotation | m/min | 1380 | 1380 | |||||||||
| Lifting mechanism | Electric hoist model | CD1/MD1 | CD1/MD1/HC | |||||||||
| Lifting speed | m/min | 8, 8/0.8, 7, 7/0.7 | 3.5, 3.5/0.35 | |||||||||
| Traveling speed | m/min | 20(30) | 20(30) | |||||||||
| Motor | Taper Squirrel-cage type | Taper Squirrel-cage type | ||||||||||
| Working duty | A3-A5 | |||||||||||
| Power supply | 380V-50HZ, 3Phase or as your demand | |||||||||||
Advantage:
1). Compact design, optimal use of the work areas
2). Heavier loads, wider spans and higher working frequency
3). Control the load easily, position the load exactly
4). Superior safety and reliability
5). “One-Stop Shop” for your crane and hoist needs
Company Information:
Santo crane mainly dealing in researching, developing and producing the lifting machinery, port machinery, construction-use tower crane, reducer, etc.
The leading products of Santo widely used in Machinery, Metallurgy, Electric Power, Railway, Aerospace , Port, Petroleum, Petrochemical, etc, our products are serving the national key projects such as: the South-to-North Water Transfer Project, the West-East National Gas Transmission, the Three Gorges Hydropower Station, Jiuquan Satellite Lunching Center, Qinshan Nuclear Power Station, Hangzhou Bay Bridge, Beijing Olympic Games and so on, accelerate successfully the launch of Spacecraft Shenzhou-10 and Chang’e-3,our products have been exported to more than 69 countries like America, Japan, Russia, Korea, etc. In 2013 the annual sales revenue reached 6.669 billion, and the Overhead Traveling Crane and the Gantry Crane continue to hold the first position around the whole country

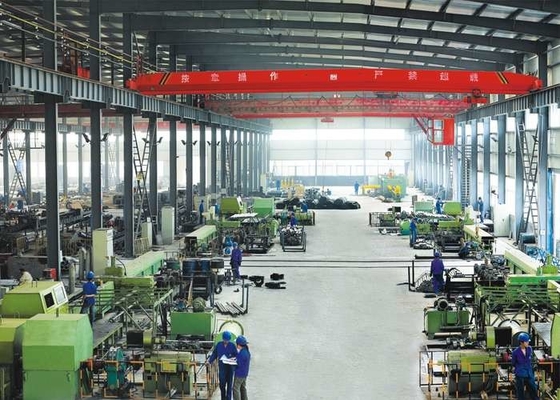

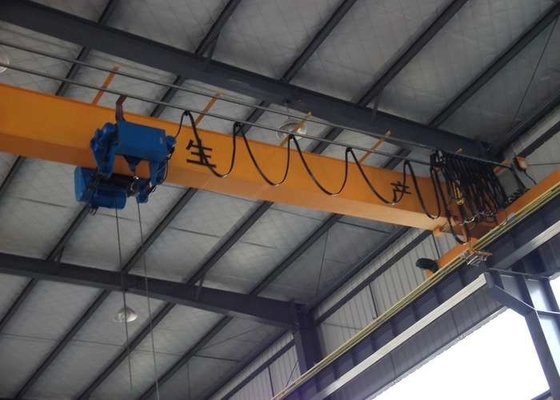

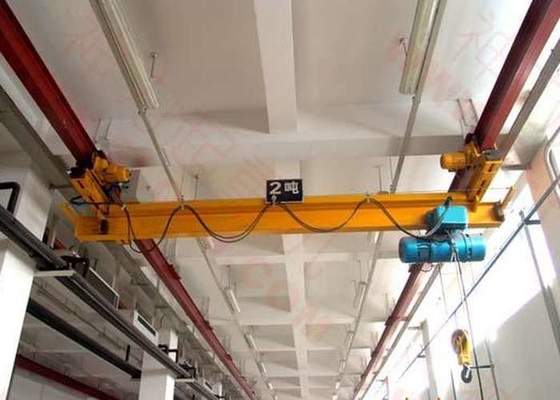

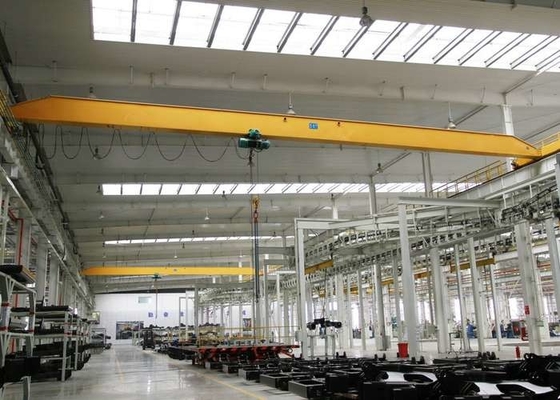

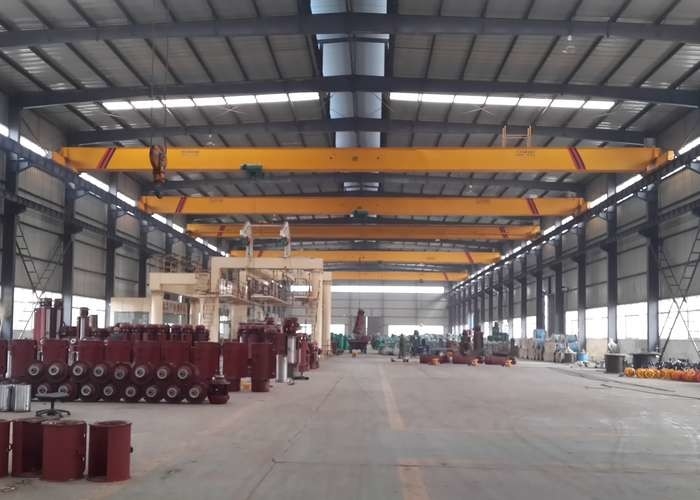

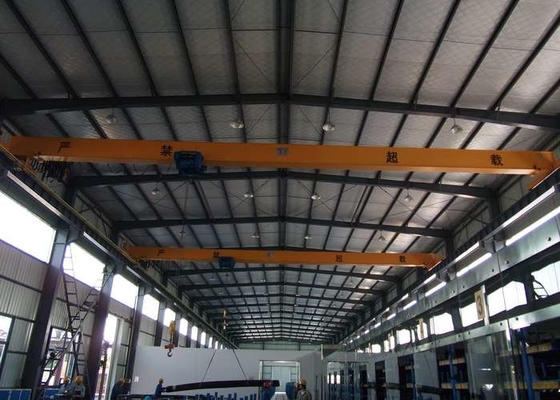

Crane Photos:
