| Place of Origin: | CHINA |
| Brand Name: | SANTO |
| Certification: | ISO, CE |
| Model Number: | LD, LDE, LT, LDP, LX |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | USD2000-10000/set |
| Packaging Details: | Electrical and other parts packed by high quality plywood crate, steel beams packed by plastic films or plastic woven cloth |
| Delivery Time: | 15-30 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5000set/year |
| Type: | Hoist Single Girder Bridge Crane,Single Girder Overhead Crane,10 Ton Overhead Crane | Product Name: | Overhead Travelling Crane,Electric Single Girder 10 Ton Overhead Crane With Electric Hoist,5 Ton Single Girder Wire Rope Overhead Travelling Crane For Sale |
|---|---|---|---|
| Warranty: | 12 Months | Span: | 7.5-31.5m |
| Feature: | Bridge Crane | Max. Lifting Height: | 6m~30m |
| Rated Lifting Moment: | Different | Max. Lifting Load: | 20t |
| Application: | Workshop,Warehouse,plants,factory,warehouse And So On | Control Method: | Wireless Remote Control,Ground Control,pendant Control |
| High Light: | 75m/Min LD Single Girder Hoist,20m/Min LD Single Girder Hoist,ODM electrically operated overhead travelling crane |
||
LD Single Girder Electric Hoist Overhead Crane EOT Crane
Description:
Designed and produced according to national standards, the electric single girder crane is a light small lifting crane, equipped with electric hoists as the lifting mechanism, The lifting capacity of the single girder electric hoist crane is 1 to 32 tons and the working class is A3 and A4.
Santo crane mainly dealing in researching, developing and producing the lifting machinery, port machinery, construction-use tower crane, reducer, etc.
Configuration:
Material: Steel plate material Q235 or Q345B ( similar with foreign steel plate Fe3 or Fe52)
Steel structure: Strong Steel box type, seamless once forming technology more strong and elegant.
Strong box type with standard deflection.
Crane traveling motor: Kuangyuan brand, Soft start type
Our group: Score No.1 on single beam crane for continuous 8 year
Wheel:Vacuum casting by our group, Inter medium frequency quenching, strongly control on quality by our group
Main electrical parts: Schneider brand
Safe configuration:
1. Weight overload protection device
2. Top quality durable polyurethane buffer
3. Crane traveling limit switch
4. Low voltage protection function
5. Emergency stop system
6. Current overload protection function
Advantages & Features:
Good design, strong rigidity
Good suability, convenient in use and strong commonality
Steady travelling with speed adjusting function
Wide selection of electric hoists.
Hoist and crane is controlled separately, and can move together and separately.
Flat cable or special cable power supply for electric hoist
Galvanize slide and cable small trolley
Smoothly moving, overall aesthetics
Set electric taxi speed is high, ensure continuing power supply,
Operation, hoisting, the point start special smoothly,
Users can choose according to different needs
Application:
The electric hoist overhead crane is used to lift loads in the various environment, such, as, factory, ware house, stockyard, etc. However, they are banned to be used in some dangerous environment, such as, combustible environment and explosive environment, etc.
Technical parameters:
| lifting capacity (T) |
1,2,3,5,10T | 16,20T | |||||||||||
| Span(M) | 7.5-31.5M | ||||||||||||
| Crane travelling mechanism |
Travelling speed(m/min) | 20 | 30 | 45 | 60 | 75 | 20 | 30 | 45 | 60 | 75 | ||
| Reducer ratio | 58.78 | 39.38 | 26.36 | 19.37 | 15.88 | 58.78 | 39.38 | 26.36 | 19.37 | 15.88 | |||
| Motor | Model | ZDY21-4 | ZDY21-4 | ZDY122-4 | ZDY131S-4 | ZDY112L1-4 | |||||||
| Power(kw) | 2×0.8 | 2×1.5 | 1.5×2 | 2.2×2 | 2.2×2 | ||||||||
| Rotation (m/min) | 1380 | 1380 | |||||||||||
| Lifting mechanism | Electric hoist model | CD1/MD1 | MD1/HC | ||||||||||
| (electric hoist)&electric hoist travelling mechanism |
Lifting speed (m/min) | 8,8/0.8 7,7/0.7 | 3.5 3.5/0.35 | ||||||||||
| Lifting height (m) | 6 ,9 ,12, 18, 24, 30 | 12,18,24,30 | |||||||||||
| Travelling speed (m/min) | 20(30) | 20(30) | |||||||||||
| Motor | Taper Squirrel-cage type | Taper Squirrel-cage type | |||||||||||
| Work duty | A3-A5 | ||||||||||||
| Power supply | 380V 50HZ three phase | ||||||||||||
| Wheel diameter | 270mm | 370mm | |||||||||||
| Width of trail | 37-70mm | 37-70mm | |||||||||||

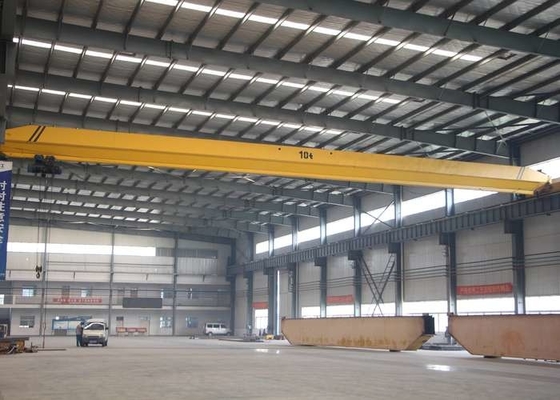

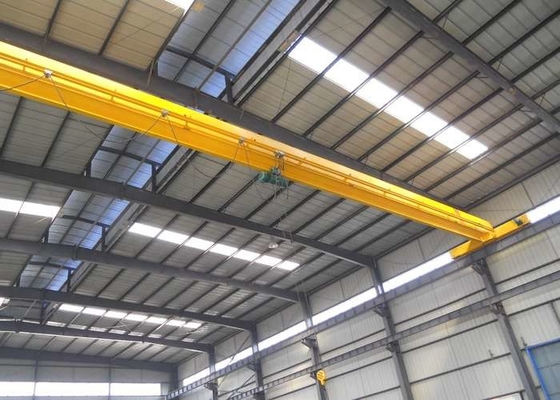

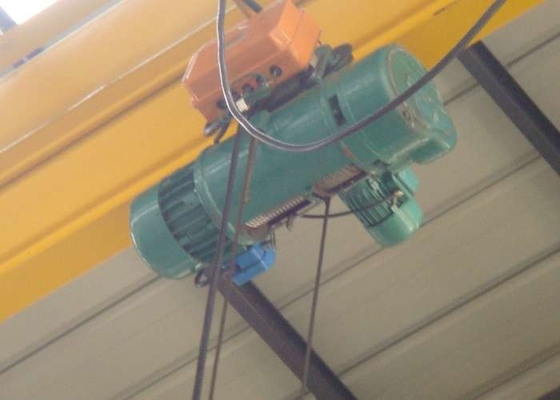

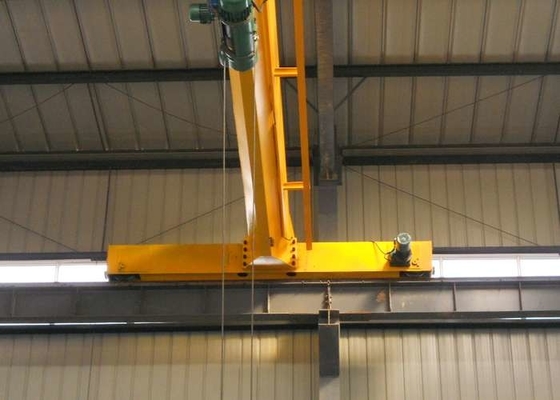

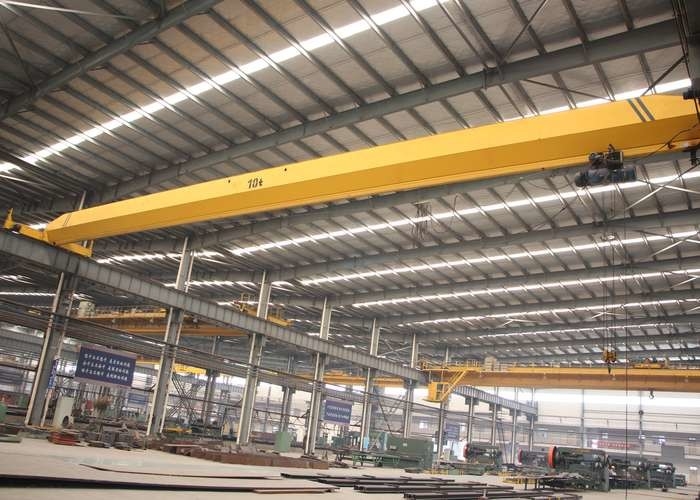

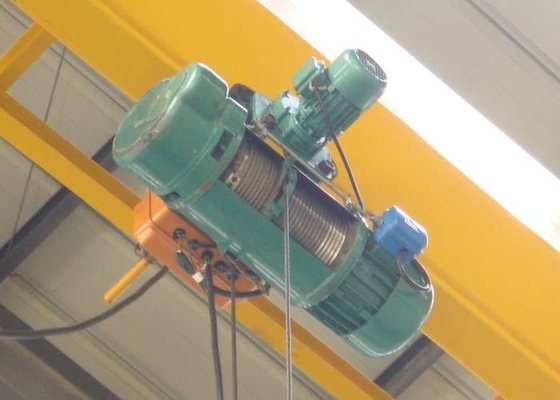

Photos:
