| Place of Origin: | CHINA |
| Brand Name: | SANTO |
| Certification: | ISO, CE |
| Model Number: | LD, LDE, LT, LDP, LX |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | USD2000-10000/set |
| Packaging Details: | Electrical and other parts packed by high quality plywood crate, steel beams packed by plastic films or plastic woven cloth |
| Delivery Time: | 15-30 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5000set/year |
| Product Name: | Overhead Travelling Crane,Electric Single Girder 10 Ton Overhead Crane With Electric Hoist,5 Ton Single Girder Wire Rope Overhead Travelling Crane For Sale | Feature: | Bridge Crane |
|---|---|---|---|
| Max. Lifting Load: | 20t | Condition: | New |
| Warranty: | 12 Months | Span: | 7.5-31.5m |
| Rated Lifting Moment: | Different | Application: | Workshop,Warehouse,plants,factory,warehouse And So On |
| Control Method: | Wireless Remote Control,Ground Control,pendant Control | Rated Loading Capacity: | 1-20t |
| High Light: | Industrial Single Girder Overhead Crane,20T Single Girder Overhead Crane,ISO 1 ton overhead crane |
||
1 Ton 2 Ton 5 Ton Up To 20 Ton Industrial Single Girder Bridge Crane With Electric Hoist Overhead Crane
Description:

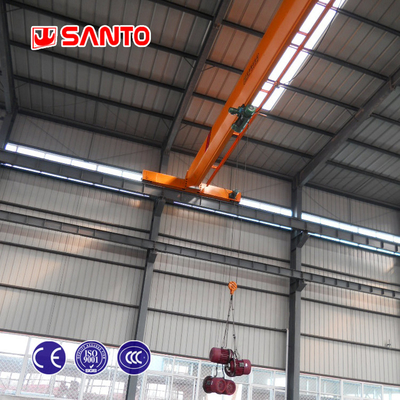

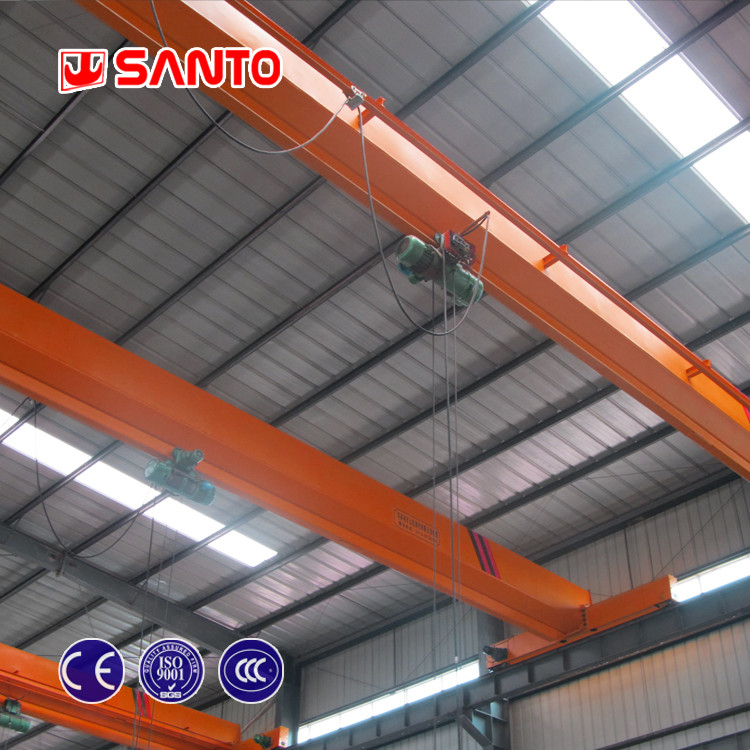

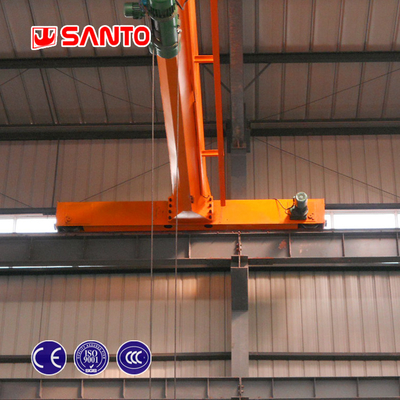

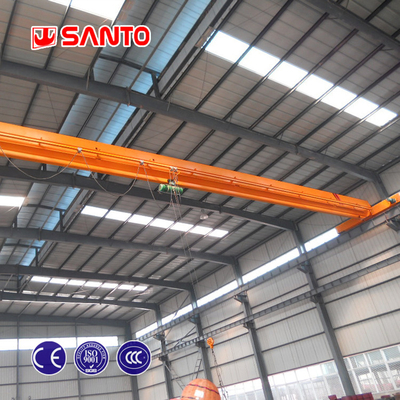

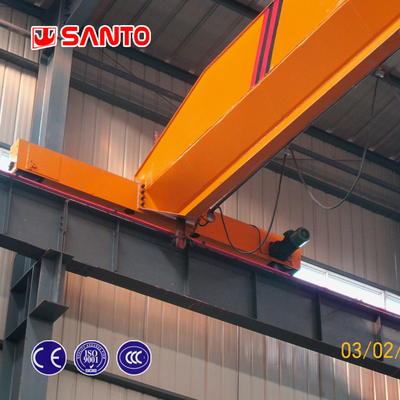

LD model Electric hoist single girder overhead crane is designed as light type lifting equipment according to China standard. It is equipped with the features of reasonable structure, strong rigidity of whole set. The whole set is used with single lifting speed or double lifting speed electric hoist, its capacity can vary 1--20ton and span 7.5---31.5m, working class A3---A5 according to ISO standard.
The standard working environment temperature is from -25 to 40°C. This kind of crane is widely used in factory, warehouse, stuff yard to lift goods, forbidden to use in flammable, explosive and corrosive environment(we have explosion proof and casting single girder crane for special condition). This single girder overhead crane is operated by cabin , pendant or remote control. Other requirements such as 35m span, high lifting height, variable speed can be achieved according to customer’s needs.
Application:
Eleltric Hoist Single Girder Beam Overhead Crane is widely used in plants, warehouses, material stocks to lift goods. It is prohibited to use the equipment in the combustible, explosive or corrosives environment.This product has two operational methods, ground or operational room which is open or closed model and can be installed on left or right side according to the practical situation. And the direction of entering the gate has two forms, sideway and ends in order to satisfy the users' choice under different conditions.
Technical parameters:
|
Capacity (ton) |
1 |
2 |
3 |
5 |
10 |
16 |
20 |
|||||
|
Span (m) |
7.5~31.5 |
|||||||||||
|
Lifting height (m) |
6, 9, 12, 18,24,30 |
|||||||||||
|
Working duty |
A3 |
|||||||||||
|
Control way |
Pendant control or Remote control |
|||||||||||
|
Power source |
380V 50HZ 3phase |
|||||||||||
|
Wheel diameter (mm) |
37-70 |
|||||||||||
|
Electric hoist Lifting and traveling mechanism |
||||||||||||
|
Electric hoist model |
CD1 single speed, MD1 double speed |
|||||||||||
|
Lifting speed (m/min) |
Single |
8 |
7 |
3.5 |
||||||||
|
Double |
0.8 / 8 |
0.7 / 7 |
0.35/3.5 |
|||||||||
|
Traveling speed (m/min) |
20 or 30 |
|||||||||||
|
Crane traveling mechanism |
||||||||||||
|
Traveling speed (m/min) |
20 or 30 |
|||||||||||
|
Motor power (KW) |
0.8×2, 1.5×2 |
2.2×2 |
||||||||||
Advantage:
1). Compact design, optimal use of the work areas
2). Heavier loads, wider spans and higher working frequency
3). Control the load easily, position the load exactly
4). Superior safety and reliability
5). “One-Stop Shop” for your crane and hoist needs
Environmental conditions:
1. a crane for the three-phase AC power, the rated frequency of 50HZ, rated voltage of 380V, also can be customized according to customer needs a variety of voltage and frequency conditions.
2. crane installation location does not exceed the altitude of 2000M
3. A crane work environment may be flammable and explosive and corrosive gases
4. A crane was being lifted does not allow molten metals, toxic substances and flammable materials.
5. Hoist way operating mode and the rotation of two manual and electric options.
