| Place of Origin: | China |
| Brand Name: | Santo Crane |
| Certification: | ISO, CE |
| Model Number: | LD, LDP,LX |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | 6000USD~20000USD /set |
| Packaging Details: | Plastic sheets for beams, spare parts are packed in wooden case |
| Delivery Time: | 20~40 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5000sets /year |
| Span: | 7.5m-31.5m Or On Request | Max. Lifting Height: | 30m |
|---|---|---|---|
| Max. Lifting Capacity: | 20t For Single Girder | Feature: | Bridge Crane |
| Type: | Hoist Single Girder Bridge Crane | Lifting Mechanism: | Electric Hoist |
| Application: | Workshop, Warehouse, Factory | Color: | Red ,Yellow Or On Request |
| Power Supply: | 220V-480V 50/60Hz | Control Method: | Wireless Remote Control, Pendent Control,Cab Control |
| High Light: | OEM Single Girder Overhead Crane 23M,31.5M Span 2 Ton Overhead Hoist,23M 5 ton single girder eot crane |
||
2 Ton 5 Ton Single Girder Overhead Crane With Limit Switch For Cross And Long Travelling
Information:

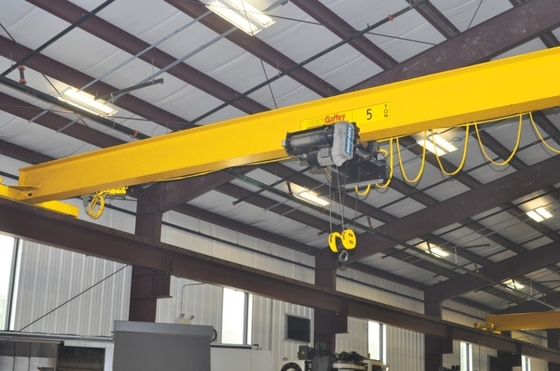

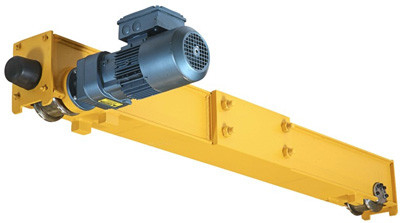

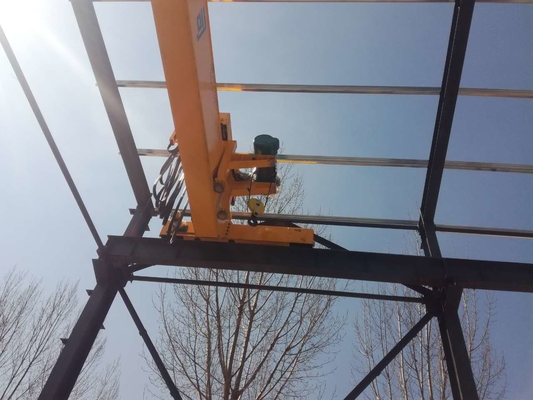

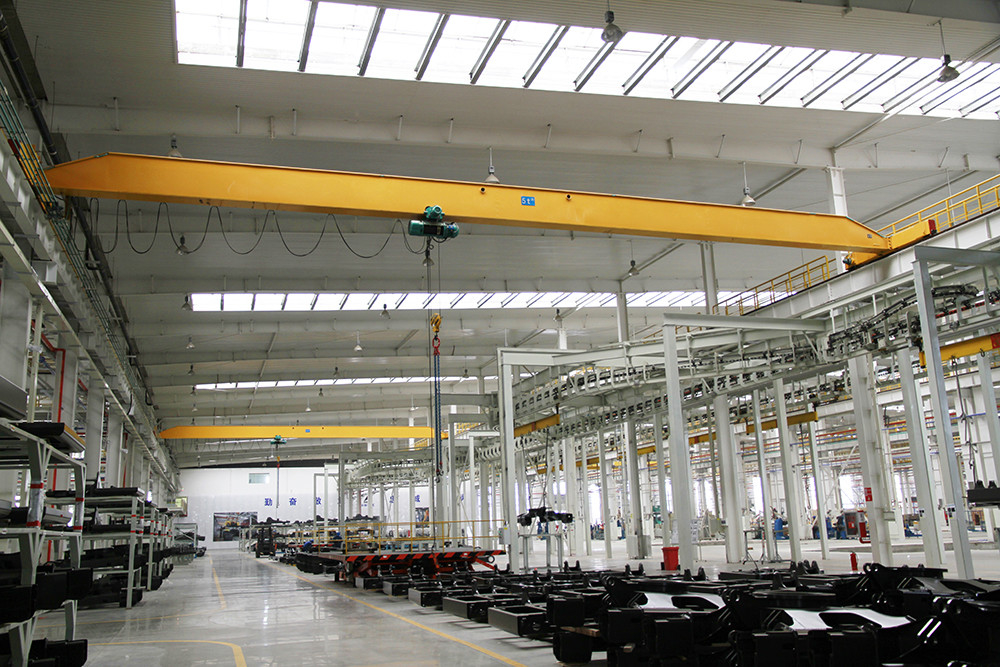

LD single girder overhead crane is designed as China national standard, which mainly consists of the main girder, end beams, electric hoists and operating system. This crane is capable of lifting goods with single lifting speed (CD1) or double lifting speed (MD1) electric hoist. That is why it is very popular for material transferring in various industries. So they can work in the workshop, warehouse, processing plant, etc. But the LD single girder overhead crane is forbidden to work in the inflammable, explosive and corrosion environment.
Technical Parameter:
Technical Parameter | ||||
Crane travelling | Travelling speed (m/min) | Ground controlling 20 | Remote controlling 30 | Remote controlling 30 |
Speed ratio | 38 | 30 | 38 | |
Span (m) | 7.5~31.5 | 7.5~22.5 | 23~31.5 | |
Lifting mechanism＆Electric hoist travelling mechanism | Electric hoist type | CD1, MD1 | ||
Lifting height (m) | 6,9,12,18,24,30 | |||
Travelling speed (m/min) | 20 | |||
Working system | A3~A5 | |||
Power supply | 3 Phase 380V 50Hz/Customized | |||
Advantages:
1. Compact structure and light dead weight
2. High working performance
3. Convenient and low cost maintenance
4. Small dimension,small occupied space
5. Easy operation
Safety:
1. Weight overload protection device
2. Lift height limit device
3. Crane traveling limit switch
4. Emergency stop function
5. Voltage lower protection device
Main Features:
1) Appearance: compact size, building headroom low light self-weight.
2) Using environment: mechanical processing workshop, metallurgical plant auxiliary workshops, warehouses, the field and power stations of transport, assembly and maintenance and handling.
3) Control method: pendent control, remote control,cabin control
4) Temperature: - 25°c ~ 40°c
Our Service:
1.12 months warranty after installation and commissioning in addition to the human damage factors.
2. 2 years spare-parts provided for better maintenance.
3. Professional technical staffs provide installation, commissioning and training services.
4. Delivery with English user manual, parts manual, product certification and other relevant certificates.
5. Technical advisory for any time and engineers available to service machinery overseas.
