| Place of Origin: | China |
| Brand Name: | Santo Crane |
| Certification: | ISO, CE |
| Model Number: | MH BMH |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | $4999-$19999 |
| Packaging Details: | Parts packing in wooden case;Beams packing by plastic |
| Delivery Time: | 10~30 working days |
| Payment Terms: | T/T,LC,Western Union |
| Supply Ability: | 2999set/year |
| Working Class: | A3-A5 | Travelling Speed: | 20-30m/min |
|---|---|---|---|
| Control Mode: | Cabin/remote Control | Crane Travelling Mechanism: | Single Or Dual-speed Motor/frequency Conversion Motor |
| Lifting Capacity: | 1-32t | Rail Type: | P24/P38/ P43 |
| Application: | Outside | Cross Travel Speed: | 20m/min |
| Hoist Travelling Speed: | 20m/min | Keywords: | Single Girder Gantry Crane |
| Lifting Speed: | 8m/min 0.8/8m/min | Limted Switch: | Include |
| Main Electrical Part: | Siemens Brand | Painting: | Customizable |
| Power Supply: | 3-phase AC, 50Hz, 380V | Span: | 10-50m |
| High Light: | CD Hoist overhead crane single girder,32t overhead crane single girder,380V single girder crane |
||

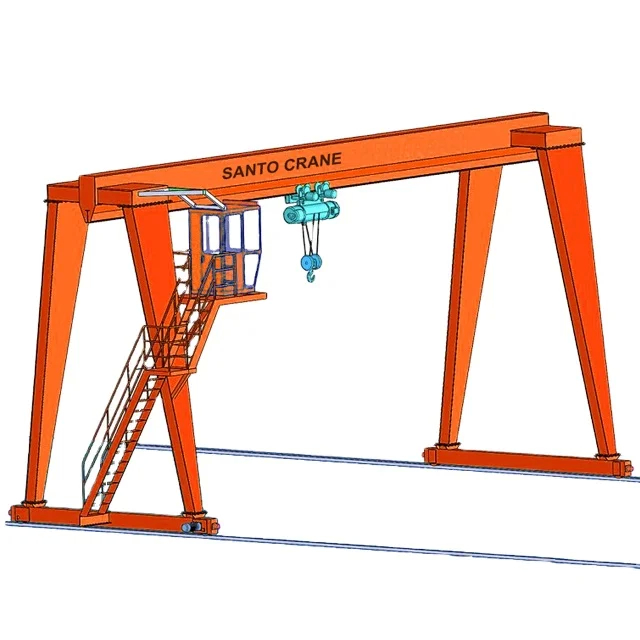

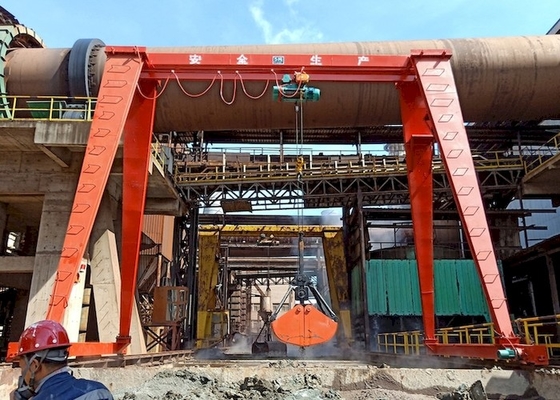

Our Single Girder Gantry Crane is one of the most efficient and reliable crane solutions for light and medium lifting operations in various working conditions. It has a lifting capacity ranging from 1 to 32 tons, with a protection grade of IP44/IP54, and it can be operated in either cabin or remote control mode. It is designed with a variety of hoist types, including CD, MD, HC and HD, and spans from 5 to 30m. Our single girder gantry crane is a perfect choice for safe and efficient material handling in the construction, shipbuilding, manufacturing, and other industrial sectors.
Our single girder gantry crane is equipped with advanced safety devices, including overload protection, upper and lower limit protection, emergency stop device, and anti-sway device, to ensure safe and reliable operation. It is also equipped with a variety of other features, such as adjustable speed control, adjustable span and height, and adjustable lifting height, to meet the needs of different applications. In addition, our single girder gantry crane is also highly customizable with a variety of options, including automatic lubrication, lifting height limit, multiple hoists, and more.
Our single girder gantry crane is designed to provide reliable and efficient material handling solutions for a variety of industrial and commercial applications. It is designed for easy installation and maintenance, and can be used in a wide range of working environments, from enclosed spaces to harsh outdoor conditions. With its high-quality construction and advanced features, our single girder gantry crane is the perfect choice for safe and efficient material handling.
| Parameter | Value |
|---|---|
| Control mode | Cabin/remote Control |
| Rail type | P24/P38/P43 |
| Power supply | 220V/380V/400V/415V/440V 50/60Hz 3-Phase AC |
| Travelling speed | 20-30m/min |
| Working temperature | -20℃~40℃ |
| Hoist type | CD/MD/HC/HD |
| Lifting capacity | 1-32t |
| Working class | A3-A5 |
| Crane travelling mechanism | Single Or Dual-speed Motor/frequency Conversion Motor |
| Lifting height | 3-18m |
Single Girder Gantry Crane, produced by Santo Crane with model number MH BMH, is a reliable and efficient product certificated with ISO and CE from China. It is available to be ordered with a minimum of 1 Set at a price range of $4999-$19999, and the package is carefully designed with parts packing in wooden case and beams packing by plastic. The delivery time is usually 10~30 working days, and the payment terms are T/T, LC, Western Union. With the supply ability of 2999set/year, this single girder gantry crane provides high travelling speed of 20-30m/min, and the rail type consists of P24/P38/P43. It has two control modes, Cabin/remote Control, and power supply of 220V/380V/400V/415V/440V 50/60Hz 3-Phase AC. The crane travelling mechanism is Single or Dual-speed Motor/frequency Conversion Motor.
Packaging and Shipping for Single Girder Gantry Crane:
The Single Girder Gantry Crane will be carefully packaged to protect it from damage during shipping. The packaging material used for this product includes cardboard boxes, foam wraps, and plastic wraps. All edges of the crane are padded to prevent damage and they will be secured using bubble wraps and straps.
The Single Girder Gantry Crane is shipped via airfreight or sea freight depending on the customer’s location. The product is inspected for quality control and shipped with a tracking number for tracking its progress. Upon delivery, the customer is required to inspect the product before signing the delivery receipt.
