| Place of Origin: | CHINA |
| Brand Name: | SANTO |
| Certification: | ISO, CE |
| Model Number: | MH, BMH, MHL, MDG |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | USD2000-10000/set |
| Packaging Details: | Electrical and other parts packed by high quality plywood crate, steel beams packed by plastic films or plastic woven cloth |
| Delivery Time: | 15-30 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5000set/year |
| Condition: | New | Warranty: | 12 Months |
|---|---|---|---|
| Span: | 7.5-35m | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Field Installation,commissioning And Training,Online Support,Field Maintenance And Repair Service |
| Feature: | Gantry Crane | Max. Lifting Height: | 6m~30m |
| Rated Lifting Moment: | Different | Max. Lifting Load: | 1-20t, Max Up To 32t |
| Product Name: | Ground Travelling Gantry Crane | Application: | Workshop,Warehouse,plants,factory,warehouse And So On |
| Control Method: | Wireless Remote Control,Ground Control,pendant Control | Rated Loading Capacity: | 1-20t |
| Color: | Yellow, Red, Or As Requirments | Power Source: | 3 Phase 380V 50hz Or Be Customized |
| Power Supply: | 220V~480V 50/60Hz | Crane Feature: | Easy Operated Girder Bridge Crane,Single Girder Overhead Crane,EOT Crane,7.5tons Overhead Crane |
| Type: | Hoist Single Girder Bridge Crane,Single Girder Overhead Crane,10 Ton Overhead Crane | Lifting Mechanism: | Electric Hoist |
| Lifting Speed: | 0~8m/min | Main Electrical Parts: | Chint, Or As Requirments Siemens, Schneider |
| High Light: | 60HZ Rail Mounted Mobile Gantry Crane,380V 60HZ Gantry Crane 15 Ton,SANTO 25 Ton Overhead Crane |
||
Rail Mounted Mobile Gantry Crane 5 Ton 10 Ton 15 Ton 20 Ton 25 Ton 30 Ton From China Top Manufacturer Supplier
Description

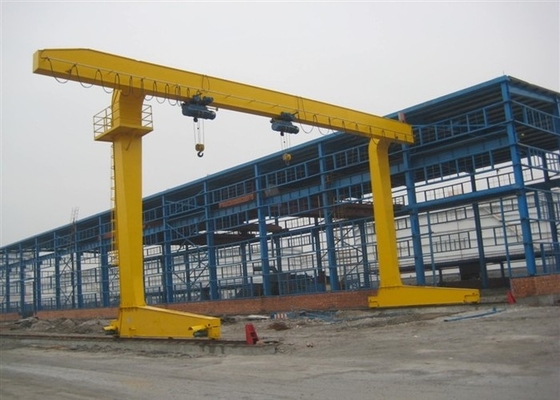

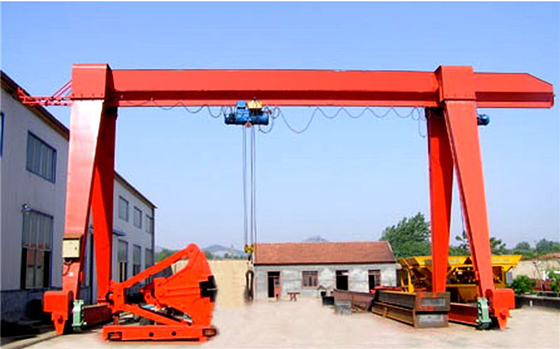

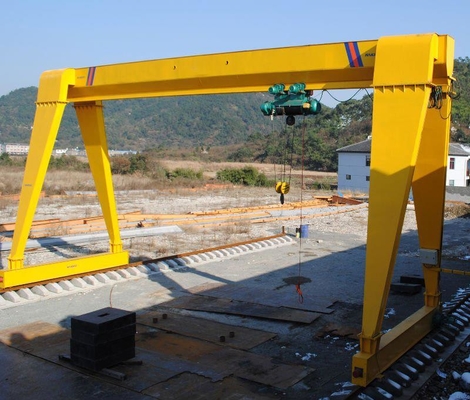

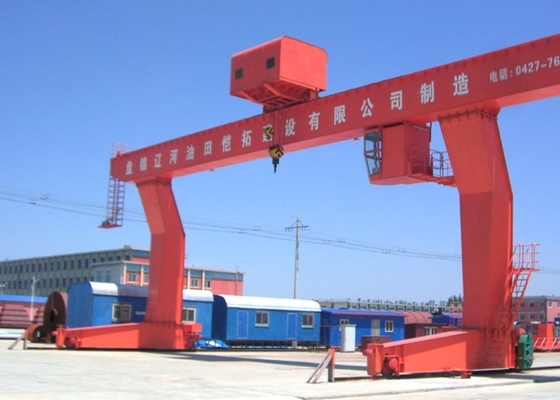

ELectric single beam gantry crane with hook is applied outside warehouse or railway sideways to do common lifting and unloading works, this kind of crane is composed of bridge, support legs, crane traveling organ, electric equipment, strong lifting winch, the frame adopts boxed-type welding mechanism, crane traveling mechanisms are operated in the driver cabin or remote control, Power is supplied by cable or slide wire.
Gantry Cranes are also known as Portal cranes or Goliath cranes and operate on floor mounted rails rather than a supporting runway system as used by bridge cranes.

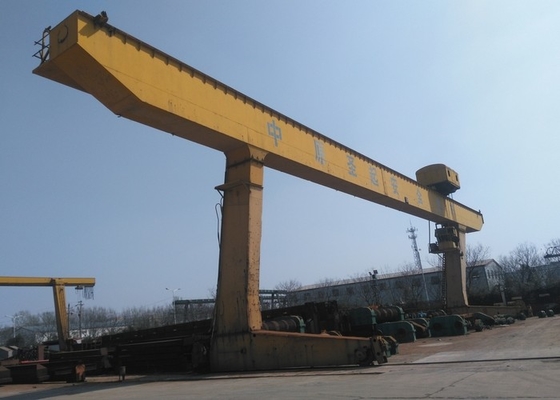

Semi Gantry cranes feature a floor mounted rail and a structurally mounted rail. SANTO have single girder solutions for Gantry Cranes from 1 ton SWL up to 32 ton and double girder solutions up to 500 ton SWL.
SANTO also manufacture a range of custom designed Gantry Cranes specific to client applications.
This crane is normally matched with single girder electric hoist as lifting mechanism, easy control, low cost.
Applied outside to do common loading and unloading with strong hoists.
Specification:
| Capacity | T | 3 | 5 | 10 | 16 | 20 | ||
| Span | m | 12,16,20,24,30 | ||||||
| Operational method | Pendent Line With Press Button /Cabin/ Remote | |||||||
| Speed | Lifting |
m/min |
8 ,8/0.8 | 8,8/0.8 | 7,7/0.7 | 3.5 | 3.5 | |
| Cross travelling | 20 | 20 | 20 | 20 | 20 | |||
| Long travelling | Ground | 20 | 20 | 20 | 20 | 20 | ||
| Cabin | 20, 30,45 | 20, 30,40 | 30,40 | 30,40 | 30,40 | |||
| Motor | Lifting | Type /kw | ZD41-4/4.5 ZDS1-4/0.4/4.5 |
ZD141-4/7.5 ZDS10.8/4.5 | ZD151-4/13 ZDS11.5/4.5 | ZD151-4/13 | ZD152-4/18 | |
| Cross travelling | ZDY12-4/0.4 | ZDY121-4/0.8 | ZDY21-4/0.8×2 | ZDY121-4/0.8×2 | YZD-4/0.8×4 | |||
| Long travelling | Ground | ZDY21-4/0.8×2 ZDY21-4/1.5×2 |
YZY22-4/1.5×2 YZR132M2-6/3.7×2 |
YZR22-4/1.5×2 | YZR160M1-6/6.3×2 YZR160M2-6/8.5×2 |
YZR160M1-6/6.3×2 YZR160M2-6/8.5×2 |
||
| Cabin | ZDR100-4/1.5×2 ZDR112-4/2.1×2 |
YZR112L1-4/2.1×2 YZR160M1-6/2.1×2 |
YZR112L1-4/2.1×2 YZR160M2 |
YZR160M2-6/8.5×2 YZR160L2-6/11×2 |
YZR160M2-6/8.5×2 YZR160L2-6/11×2 |
|||
| Electric hoist | Model | CD1/MD1 | CD1/MD1 | CD1/MD1 | CD1 | HC | ||
| Lifting height | m | 6,9 | ||||||
| Working duty | A3 | |||||||
| Power supply | 380V 60HZ 3phase AC (According to your demand ) | |||||||
Safety feature:
Weight overload protection device, Top quality long time bearing polyurethane materials buffer, Crane traveling limit switch, Voltage lower protection function, Emergency stop system, current overload protection system and so on!
Control method:
Pendent line with press button or remote control or cabin or both
Design and construction rules:
All the standards which is required for the crane is the Chinese standard
About Us:
For over 35 years, Santo Cranes has been delivering reliable solutions to customers around the world. As one of the world’s leading crane manufacturers, we offer a range of technologically-advanced, best-in-class products and solutions for all of your industrial material flow and lifting needs. Common industries we work with include:
- Aircraft
- Automotive
- Chemicals
- Coal mining
- Construction
- Cement, glass, bricks and concrete
- Food and beverages
- Metal processing
- Machinery and equipment
- Metal ore mining
- Power and energy
- Pulp and paper
- Railways
- Rubber and plastics
- Ships and boats
- Port
- Waste management
- Wood and wood products
We offer a complete range of Spare Parts / Components /kits for cranes and lifting machinery that are tailored to meet specific customer needs.
Our crane kit packages provide the high quality and reliable operation for our customers expect from Santo Cranes while all the Spare Parts / Components /kits can be tailored to the specifics of your single-girder, double-girder, or suspension cranes.
We can provide:
-End Carriages, end trucks and Travel Units
-Hoists: rope hoist, chain hoist
-Power Supply: conductor bus bar, conduct rails, festoon system
-Control System: radio remote control and pendant control, cam control, joystick control
-Hook block, hook
-Crane wheel, wheel assemble
-Rope drum
-Lifting tools below hook: grab bucket, lifting magnet
-pulley, pulley block
